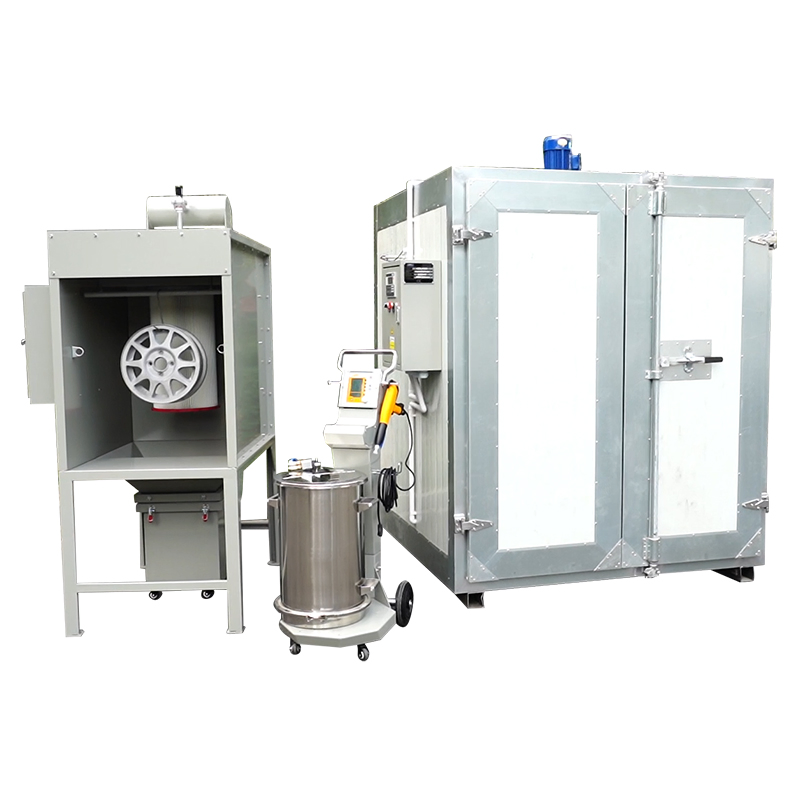

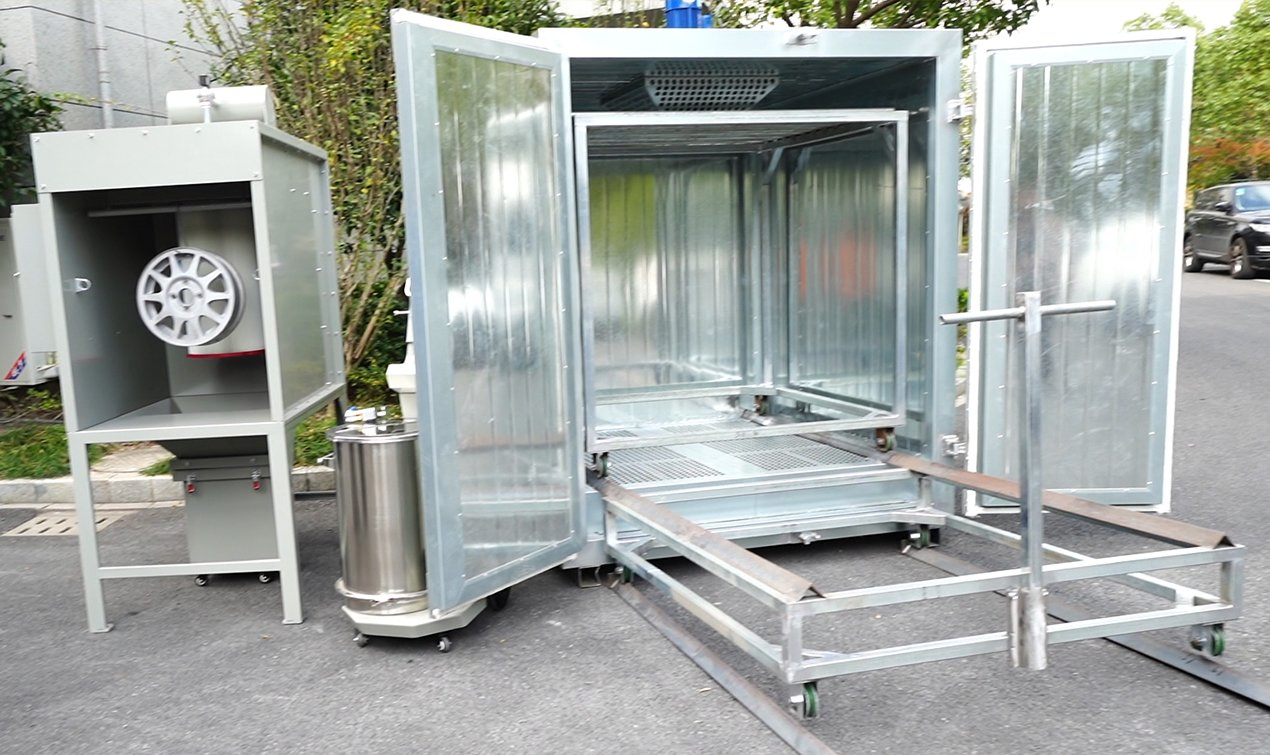

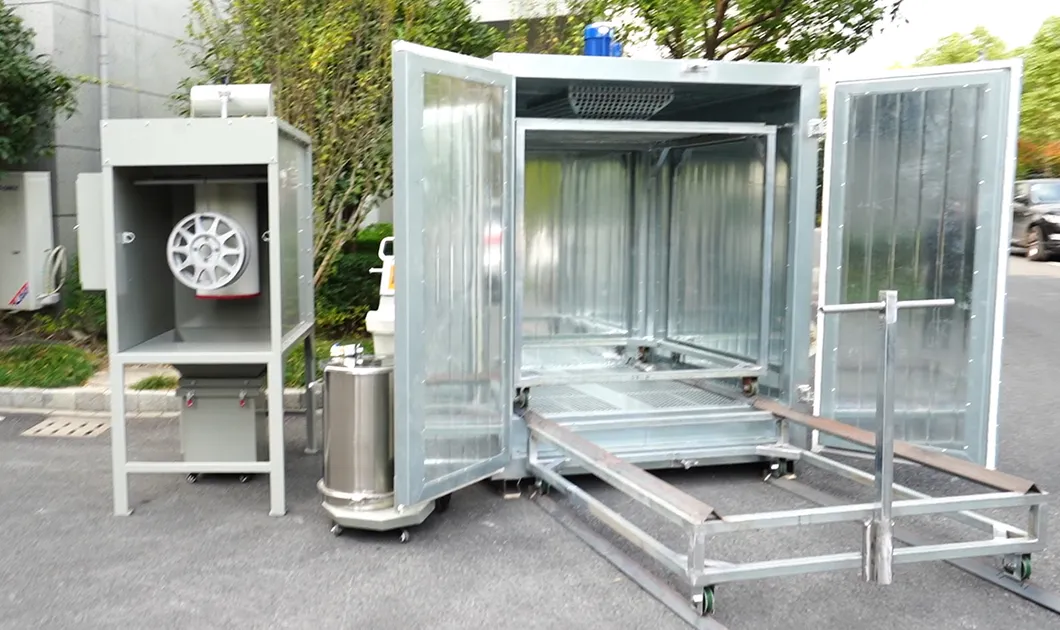

This package is designed for small and medium parts finishing, featuring an economical and efficient manual application system. The complete set includes a Sandblasting Machine, Powder Coating Gun, Powder Coating Booth, and Powder Curing Oven.

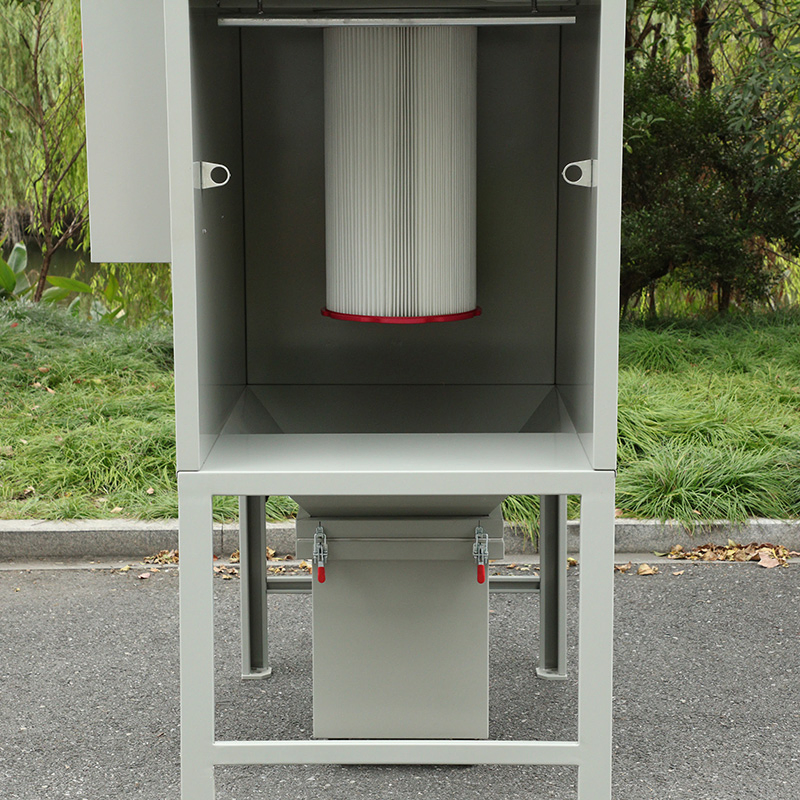

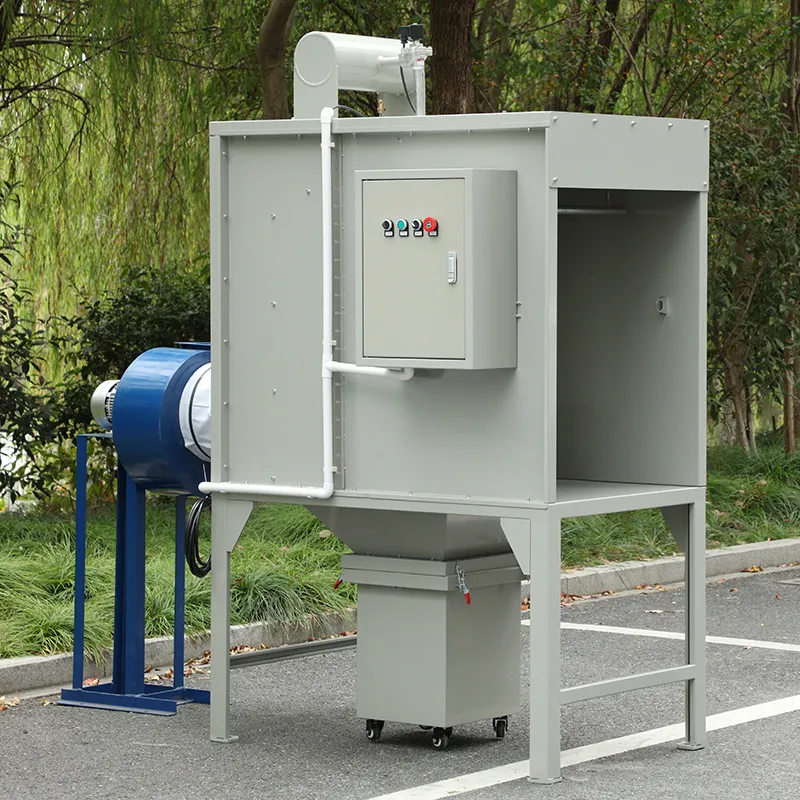

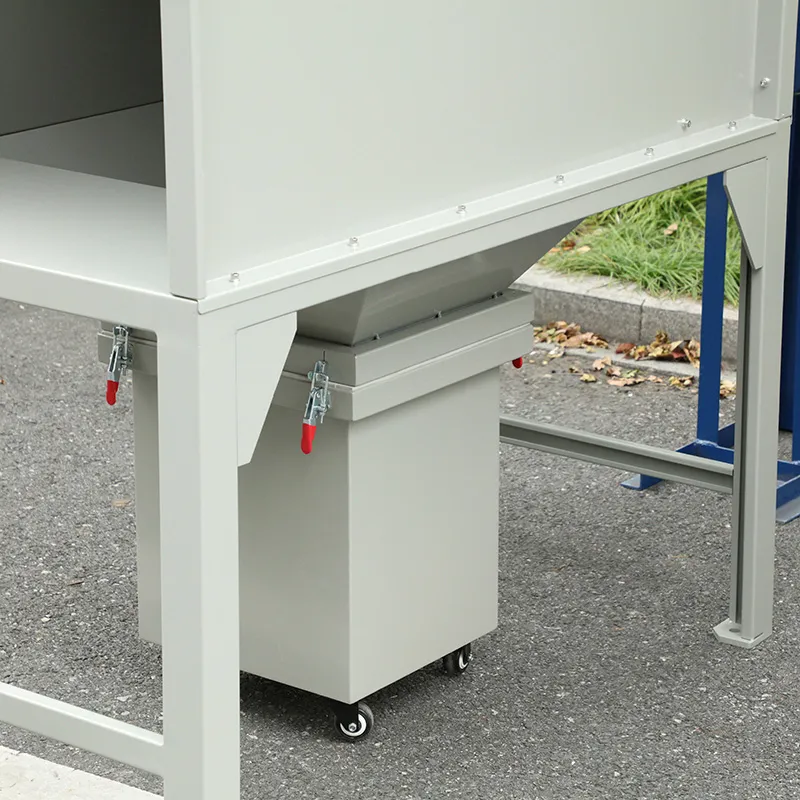

The powder booth fans draw air through filters and release it through the top of the booth. This design keeps the workspace clean and minimizes powder dust dispersion.
| Booth Specifications | |
|---|---|
| Booth Type | Closed |
| Operator Dimensions | 700W x 1000H x 1000D mm |
| Overall Dimensions | 917W x 2026H x 1220D mm |
| Nominal Power | 1.5kW |
| Voltage | 380V / 50-60Hz |
| Filters Count | 2 (Polyester) |
| Cleaning System | Pneumatic |

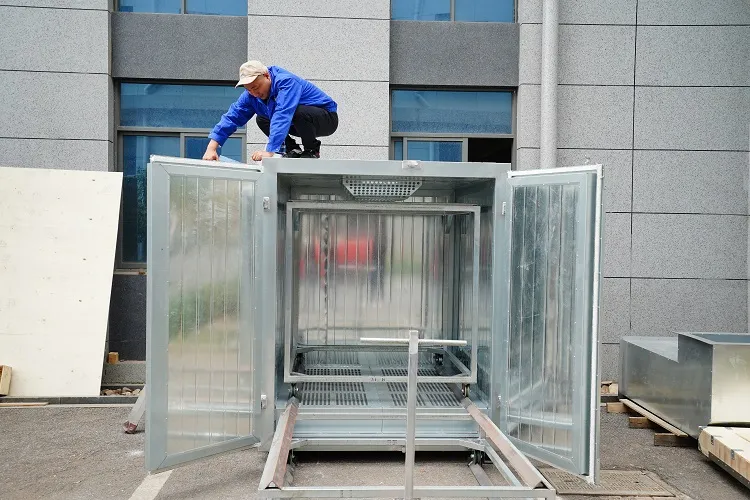

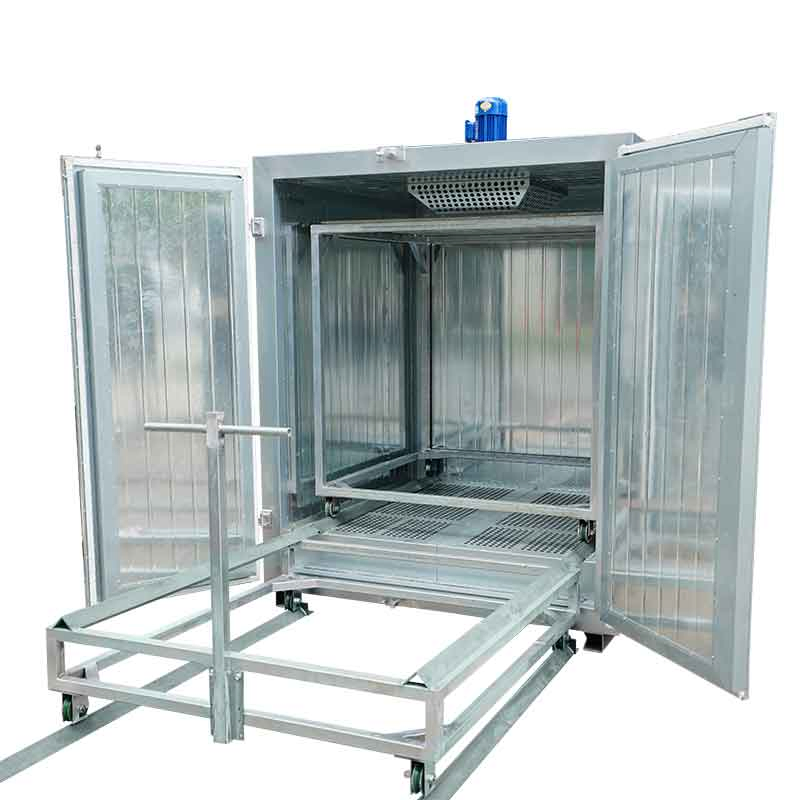

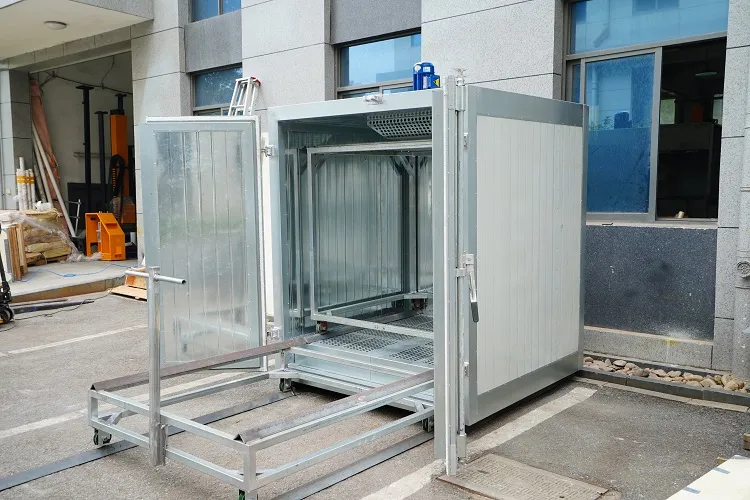

| Oven Specifications | |
|---|---|
| Worksize Dimensions | 1500W x 1500H x 1500D mm |
| Overall Dimensions | 1700W x 1900H x 1700D mm |
| Power Supply | Electric / 18kw |
| Warm-up Time | 30min (at 180°C) |
| Temperature Stability | < ± 3-5°C |
| Max Temperature | 220°C |
| Air Flow | Vertical, variable through wall holes |

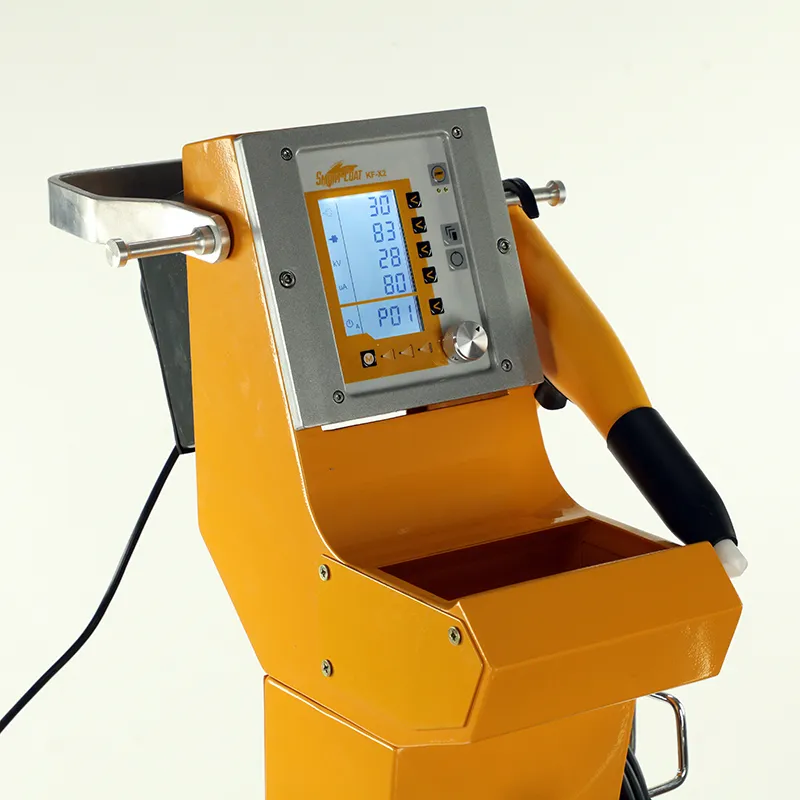

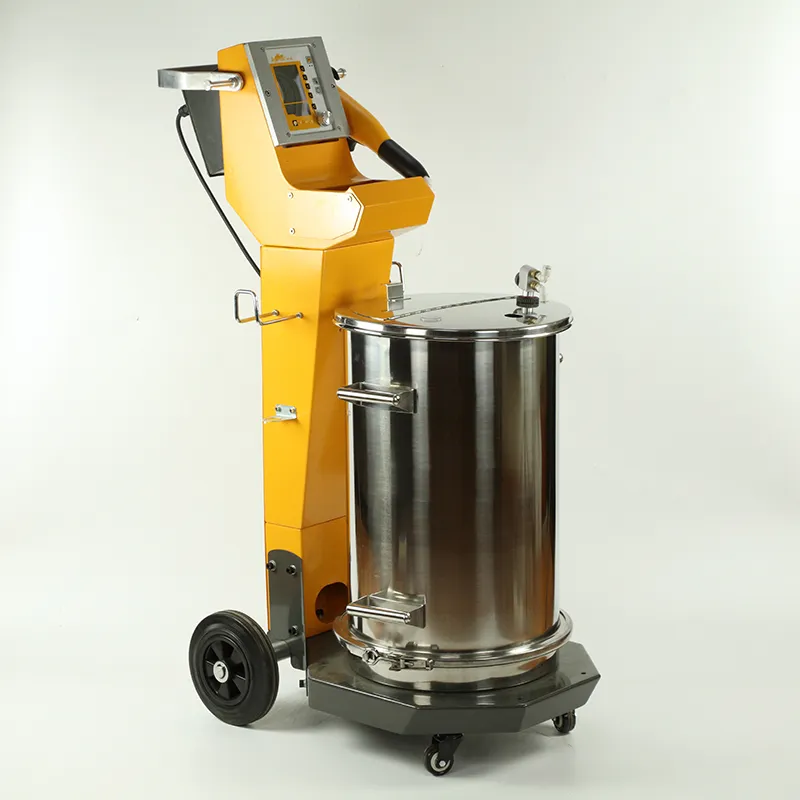

The KF-X2 model features a smart controller suitable for both beginners and professionals. DVC technology enables perfect coating on complex workpieces with minimal effort.
| Technical Data - Gun | |
|---|---|
| Power Range | 220V/110V |
| Gun Weight | 500G |
| Rated Output Voltage | 24VDC |
| Max Output Current | 180Ua (max) |
| Max Powder Injection | 600g/min |
| Optimum Air Pressure | 6kg/cm |
