Hebei Factory Concrete Formwork 1/2" Form Tie B Cone Formwork B Form Tie System
Hebei Factory Concrete Formwork 1/2" Form Tie B Cone Formwork B Form Tie System
Hebei Factory Concrete Formwork 1/2" Form Tie B Cone Formwork B Form Tie System
Hebei Factory Concrete Formwork 1/2" Form Tie B Cone Formwork B Form Tie System
Hebei Factory Concrete Formwork 1/2" Form Tie B Cone Formwork B Form Tie System
1 / 5
Hebei Factory Concrete Formwork 1/2" Form Tie B Cone Formwork B Form Tie System
Hebei Factory Concrete Formwork 1/2" Form Tie B Cone Formwork B Form Tie System
Hebei Factory Concrete Formwork 1/2" Form Tie B Cone Formwork B Form Tie System
Hebei Factory Concrete Formwork 1/2" Form Tie B Cone Formwork B Form Tie System
Hebei Factory Concrete Formwork 1/2" Form Tie B Cone Formwork B Form Tie System

Hebei Factory Concrete Formwork 1/2" Form Tie B Cone Formwork B Form Tie System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
TR088
Certification
SGS
Material
Steel
Type
Wall Formwork

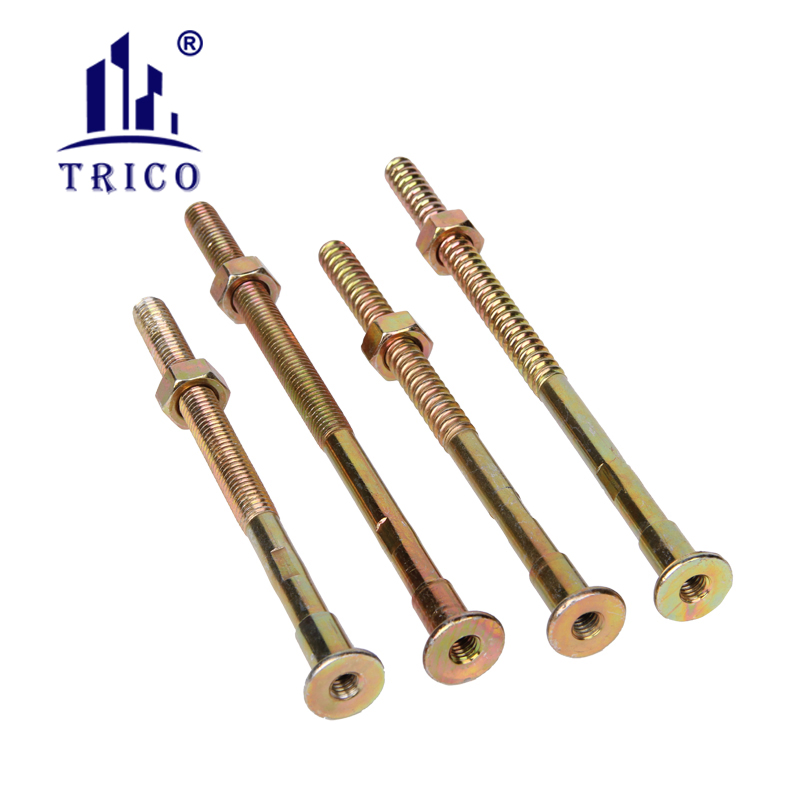

B Form Tie
180mm, 200mm, 210mm, 250mm
B Inner Unit
B9 or 3/8" with Different Length
Finishing
Galvanizing or Black
Production Capacity
5000 ton Per Month
Product Description

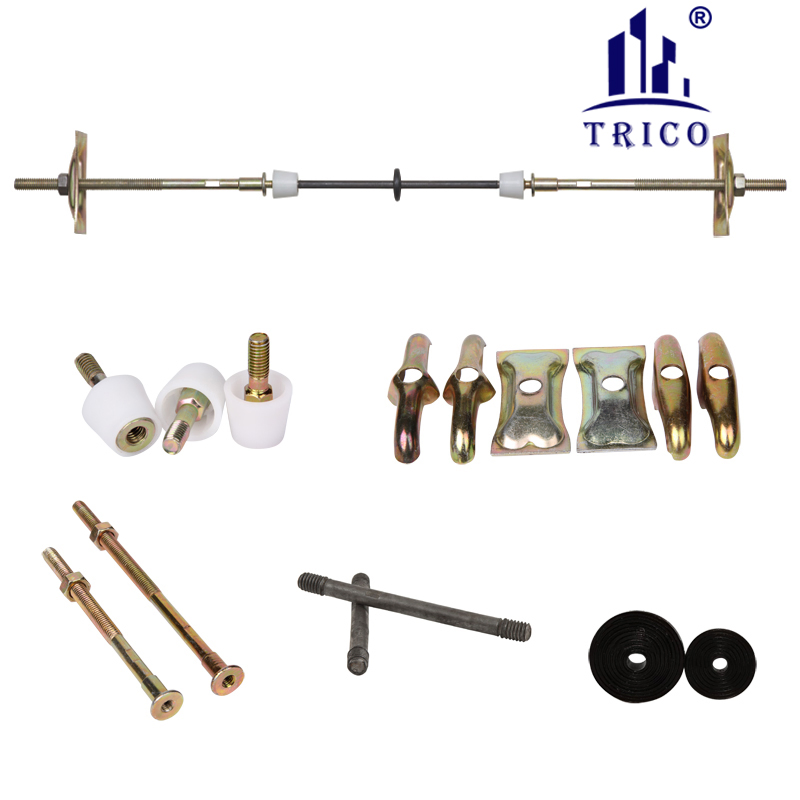

Concrete Formwork 1/2" Form Tie B Cone System

The Form Tie System prevents breakage in the formwork, keeping concrete structures in excellent shape without discoloration. It offers ease of assembly and removal, significantly saving construction costs as all parts are reusable except for the separator cast into the wall.

Standard Set Requirements:

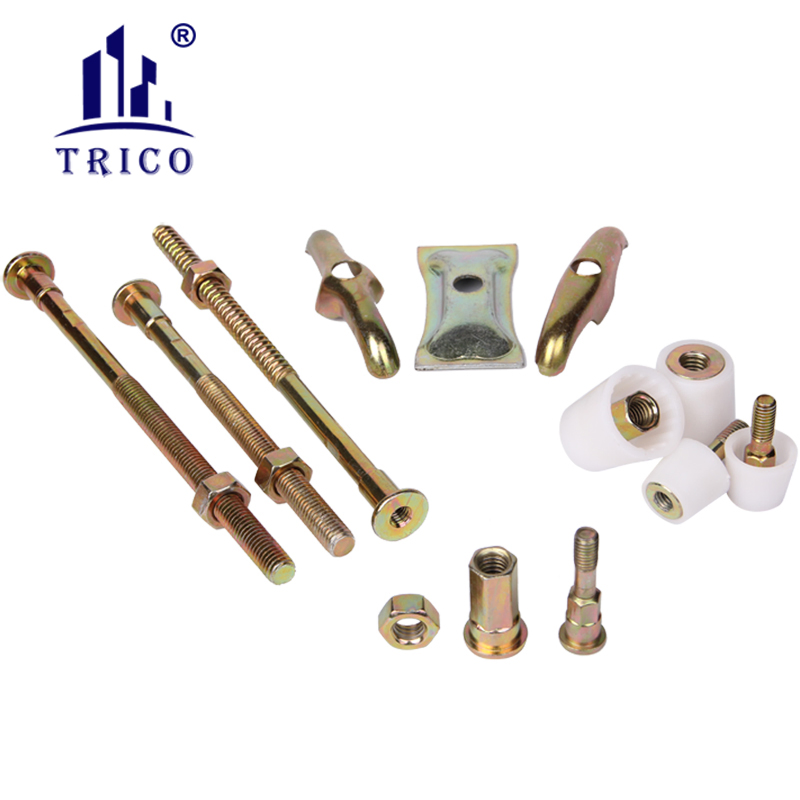

A complete Form Tie System typically consists of:

  • Form Tie (2pcs)
  • Inner Unit (1pc)

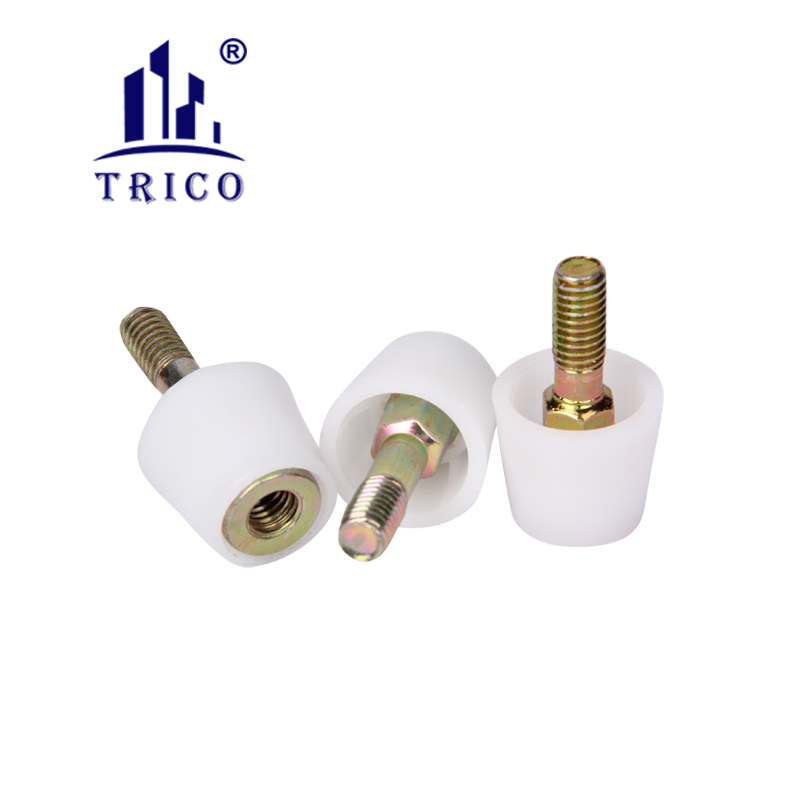

  • Plastic Cone (2pcs)

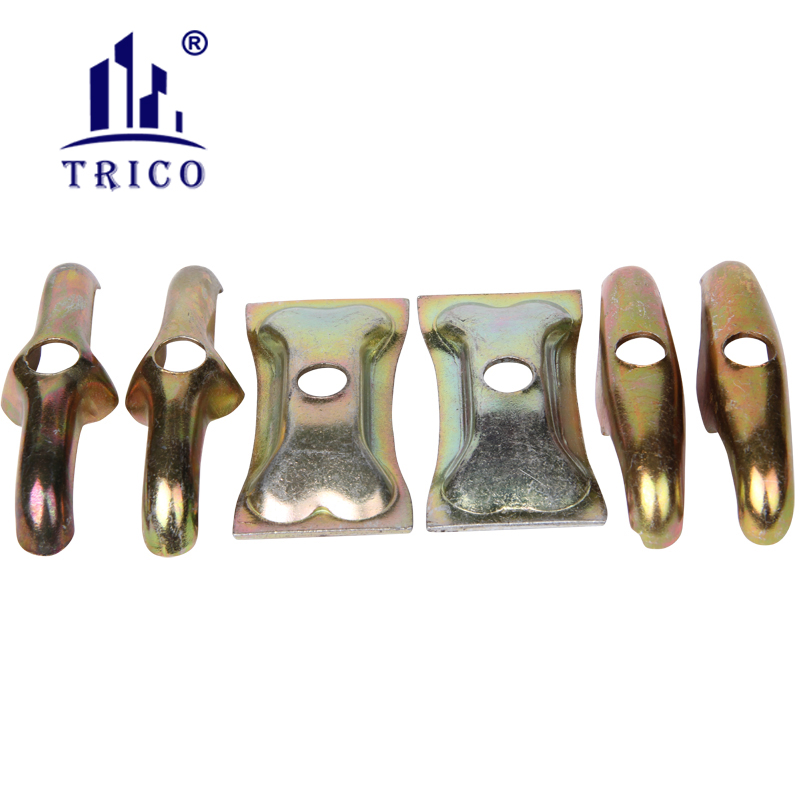

  • Rib Washers (2pcs)
  • Hex Nut (2pcs)
System Specifications
Component B Form Tie B Inner Unit Plastic B Cone Rib Washer Hex Nut
Diameter 1/2" B9, 3/8" 3/8" 2.5mm/3.0mm 1/2"
Size 180-250mm Customizable B9*12/16/24 Various Standard
Weight 145g - 197g Varies 35g - 45g Varies 20.5g
Form Tie System 1

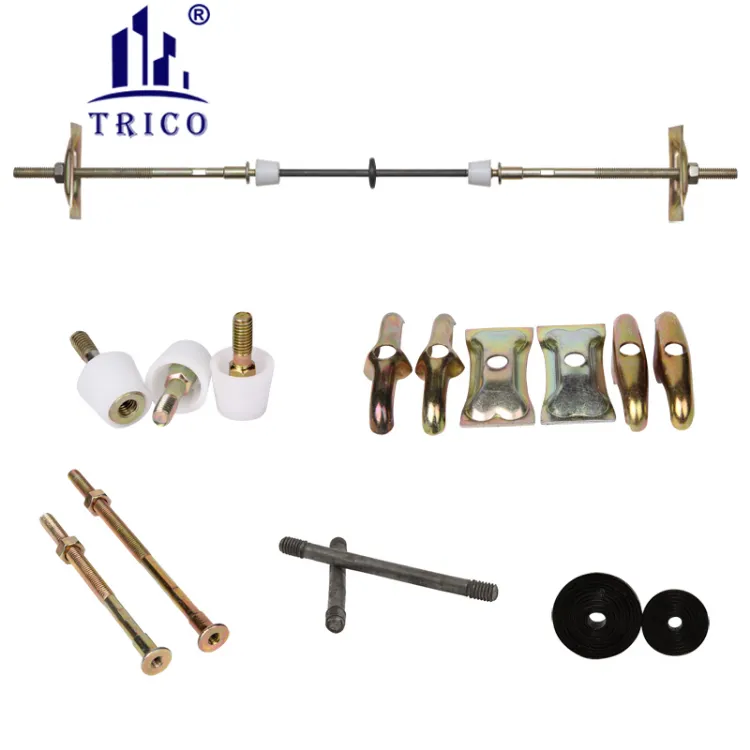

Form Tie System 2

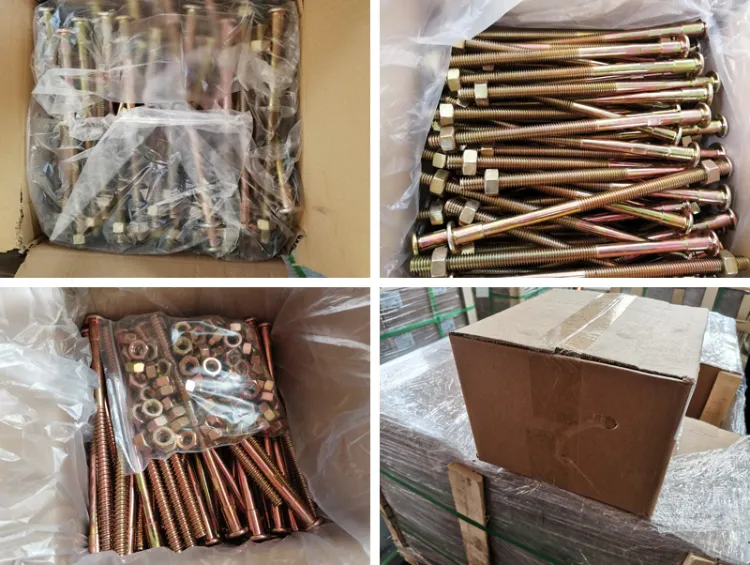

Form Tie System 3
D Form Tie System

The D Form Tie System is widely used in concrete construction for assembling temporary formwork systems.

Name Length Size Packaging
D Form Tie 150mm - 250mm 1/2" Bundle + Pallet
D Cone 40mm / 50mm 1/2" Carton + Pallet
Inner Unit Based on Wall Thickness 1/2" Bundle + Pallet
3 Shape Washer 115mm - Bag + Pallet

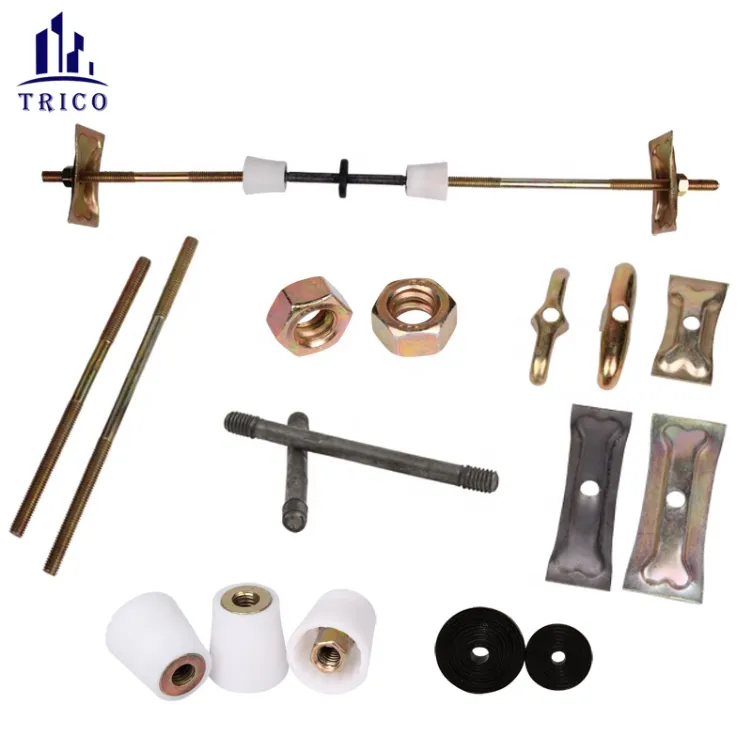

D System

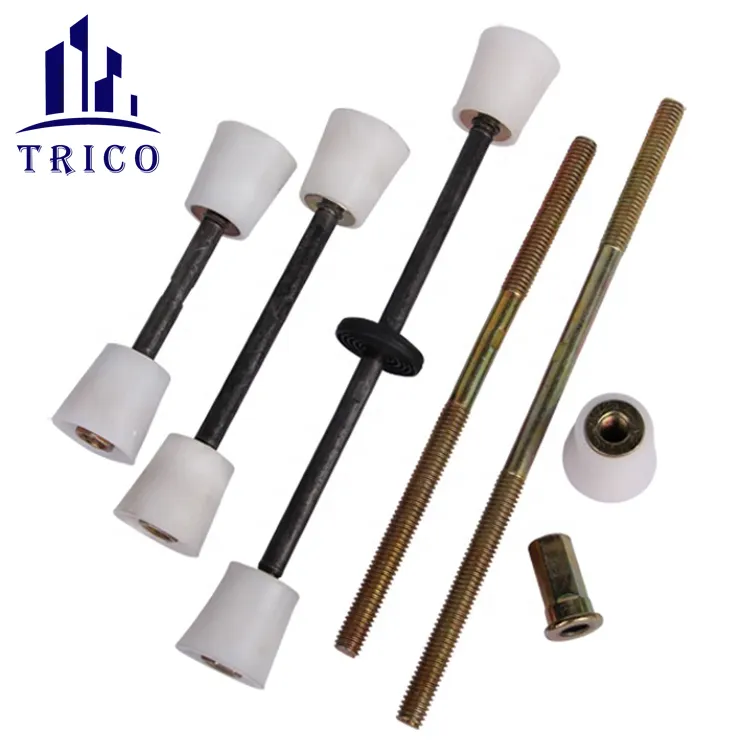

D System 2
Our Service Commitment

1. Quality Control: Strict three-level testing (production line, warehousing, and pre-loading).

2. Timeliness: 24-hour online support for consulting and quotations.

3. Veracity: Ensuring precise tolerance ranges based on customer standards.

4. Integrity: Active cooperation to solve any quality concerns responsibly.

Factory Overview
Production
FAQ
What are the main advantages of the Form Tie System?
The system prevents formwork breakage and ensures concrete structures maintain their shape without discoloration. It is also highly cost-effective as most parts are reusable.
Which components of the system are not reusable?
The inner unit (separator) is typically cast into the concrete wall and remains there, while other parts like the Form Tie, Cones, and Washers can be reused.
What materials are used for the Form Tie accessories?
Most components are made of high-quality steel with galvanizing or black finishing to ensure durability and resistance to corrosion.
Can you provide different sizes of B Form Ties?
Yes, standard sizes include 180mm, 200mm, 210mm, and 250mm, but other sizes can be manufactured based on specific project requirements.
How is the quality of the products ensured?
Quality is controlled through three levels: on the production line, during warehousing, and a final check before loading.
What is the production capacity for these formwork systems?
The production facility has a capacity of approximately 5000 tons per month to support large-scale global construction projects.
