CE Certificate Alloy Wheel Powder Coating System Complete

1 / 5

CE Certificate Alloy Wheel Powder Coating System Complete

After-sales Service:	1 Year
Warranty:	1 Year
Type:	Coating Production Line

Send Inquiry

Product Description

Basic Specifications

Model NO.:0711/x2/1115

Coating:Powder Coating

Substrate:Steel

Certification:CE, ISO

Condition:New

Input Voltage:380V - 415V

Power:10kw

Delivery Time:15 days

Origin:China

HS Code:8424899990

Product Description

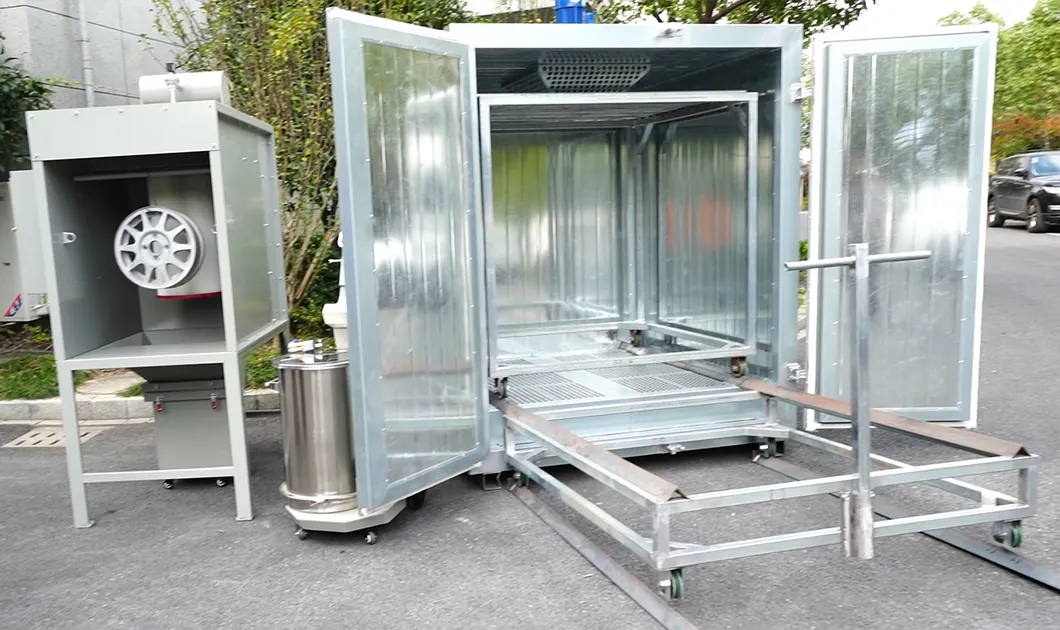

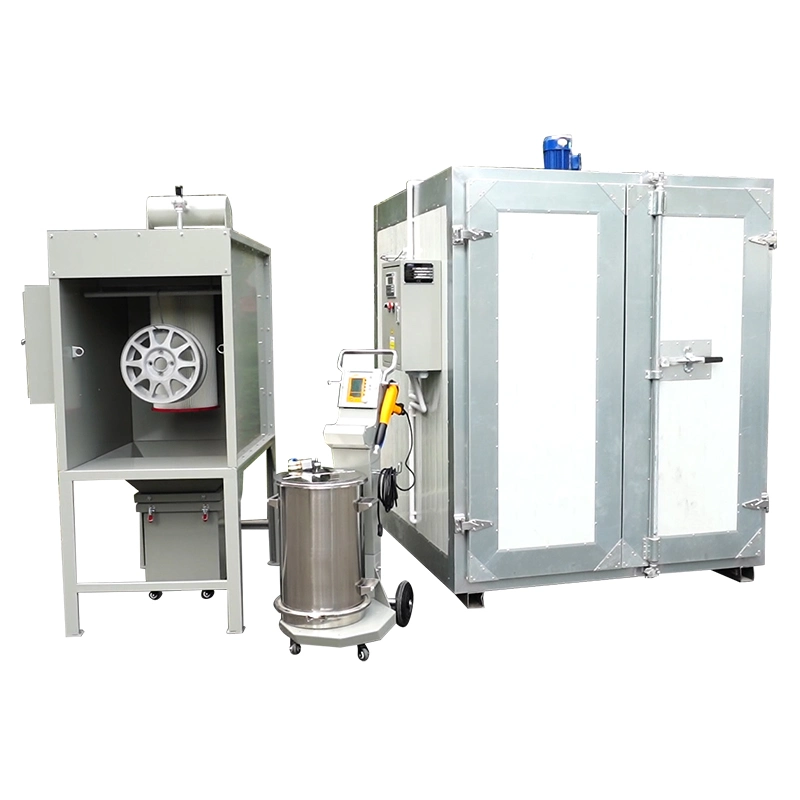

Powder Coating Equipment with oven/booth/machine For new beginner

This package is for small and medium parts finishing, features economical, efficient in manual application. Including Sandblasting Machine, Powder Coating Gun, Powder Coating Booth, Powder Curing Oven, and manual powder coating gun.

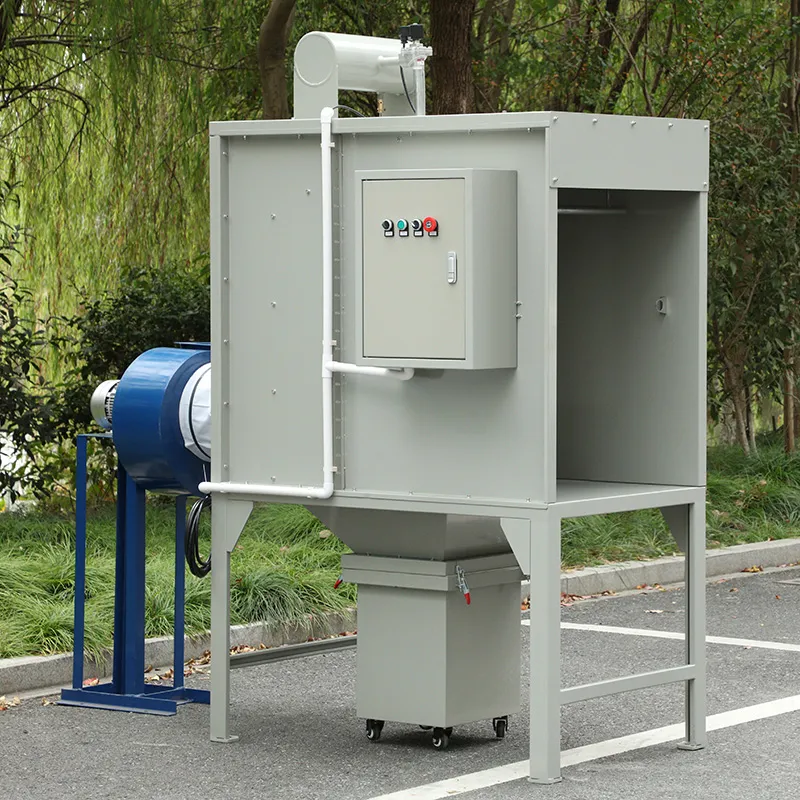

Powder Coating Booth

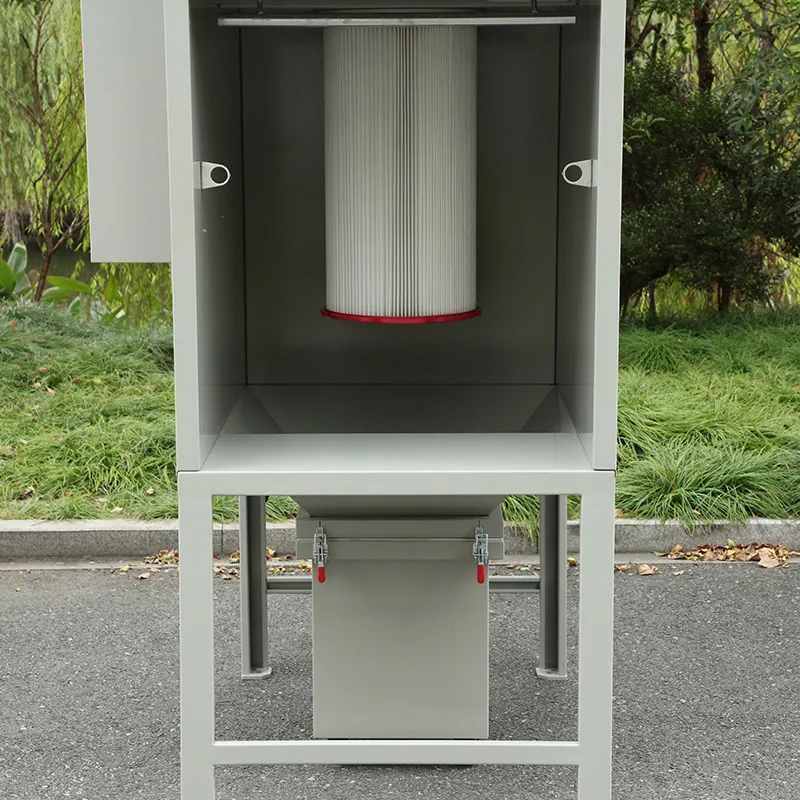

The powder booth fans draw air through filters and releases it through the top of the booth. It keeps your shop nice and clean, minimizing powder dust.

Booth Specifications
Booth Type	Closed
Operator dimensions	700 width x 1000 height x 1000 depth
Overall dimensions	917 width x 2026 height x 1220 depth
Power supply	Electric / 1.5kW
Voltage	380V / 50-60Hz
Filters	Polyester (2 units)
Filter cleaning system	Pneumatic

Benefits:

Operator Safety and Environmental compliance
High production capacity and operational efficiency
Easy for color changes
Longer lasting, more durable, and quieter operation

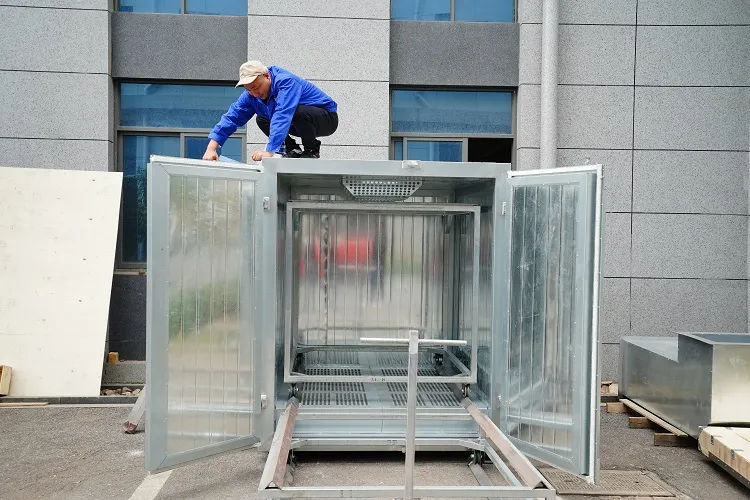

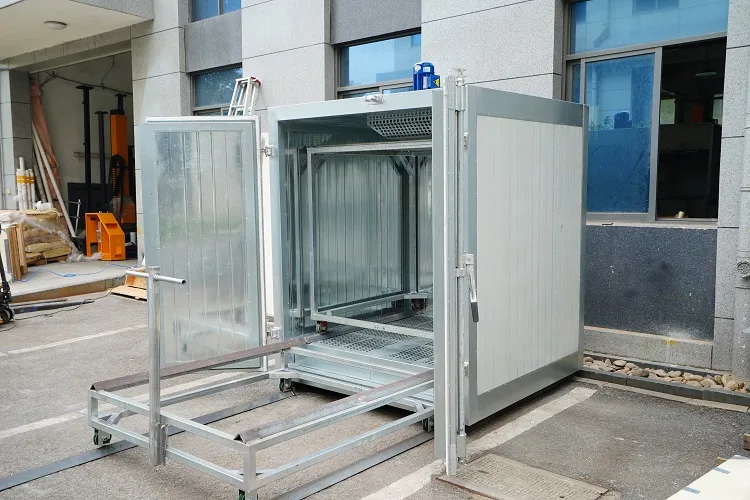

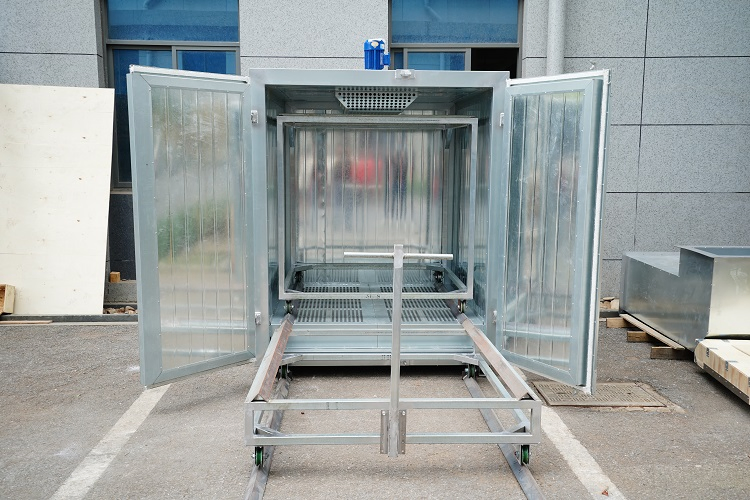

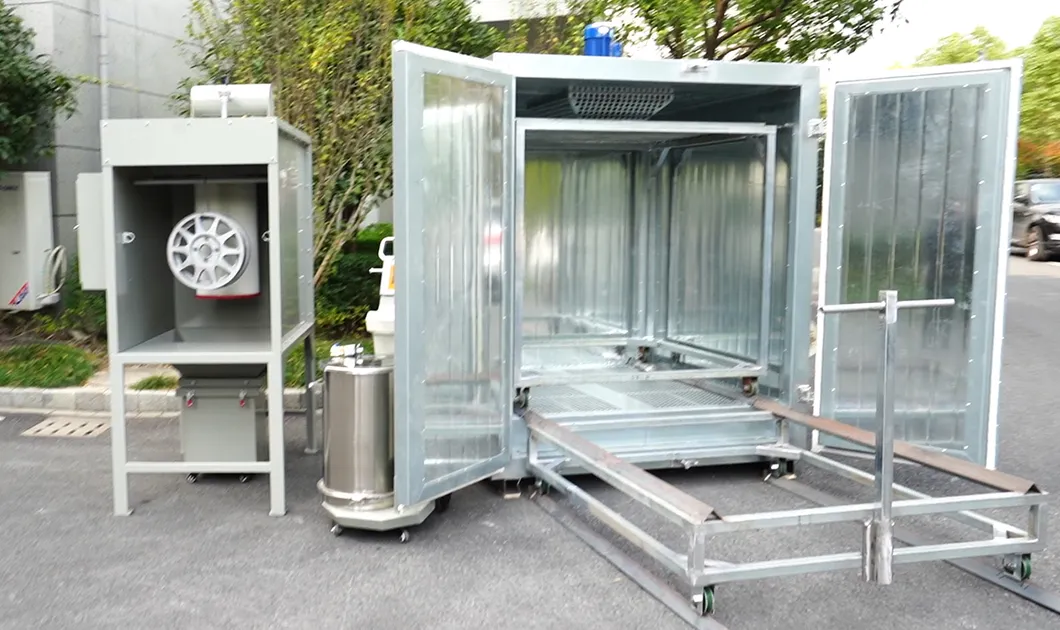

Powder Coating Oven

Temperature max.

Oven Specification
Worksize dimensions	1500 width x 1500 height x 1500 depth
Power supply	Electric / 18kw
Voltage/Frequency	380V/440V (50-60hz) / 3 phases
Warm-up time	30 min. (180° C)
220° C
Circulation/ Air flow	Vertical, Variable through holes on the walls

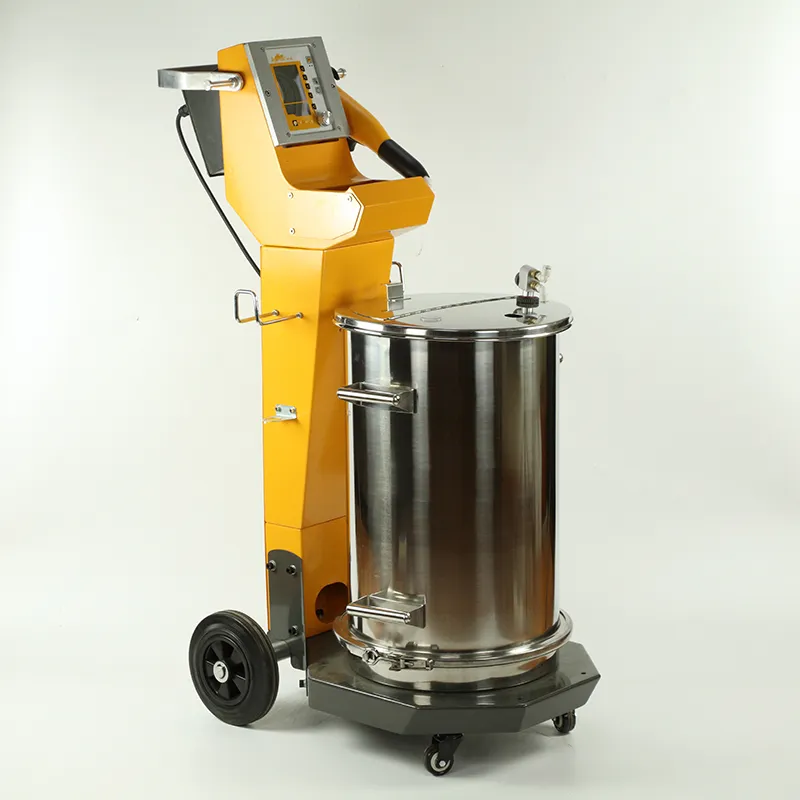

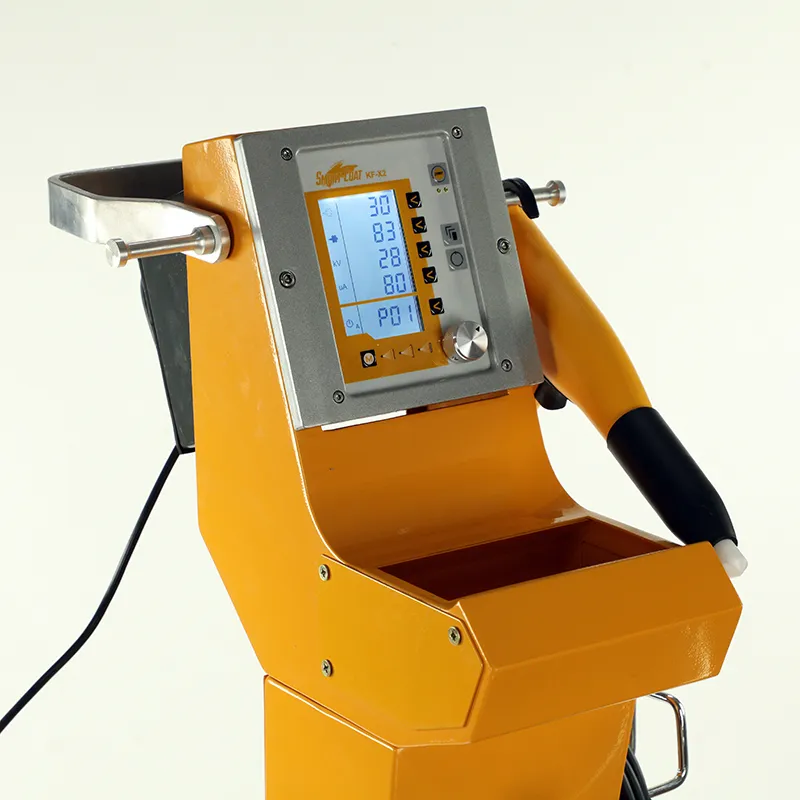

KF-X2 Powder Coating Gun

KF-X2 is an advanced model with a smart controller suitable for both beginners and specialists. DVC technology makes it perfect to coat even complex parts with less effort.

Flat mode for flat shape workpieces
Corner mode for complicated shape workpieces
Recoating mode for respraying

Application & Shipping

Buying Guide: We can ship these products in 30 working days after payment via sea shipping to your country.

Frequently Asked Questions

1. What is included in this powder coating system package? The complete package includes a Sandblasting Machine, Powder Coating Gun, Powder Coating Booth, and a Powder Curing Oven, designed specifically for beginners and small to medium parts.

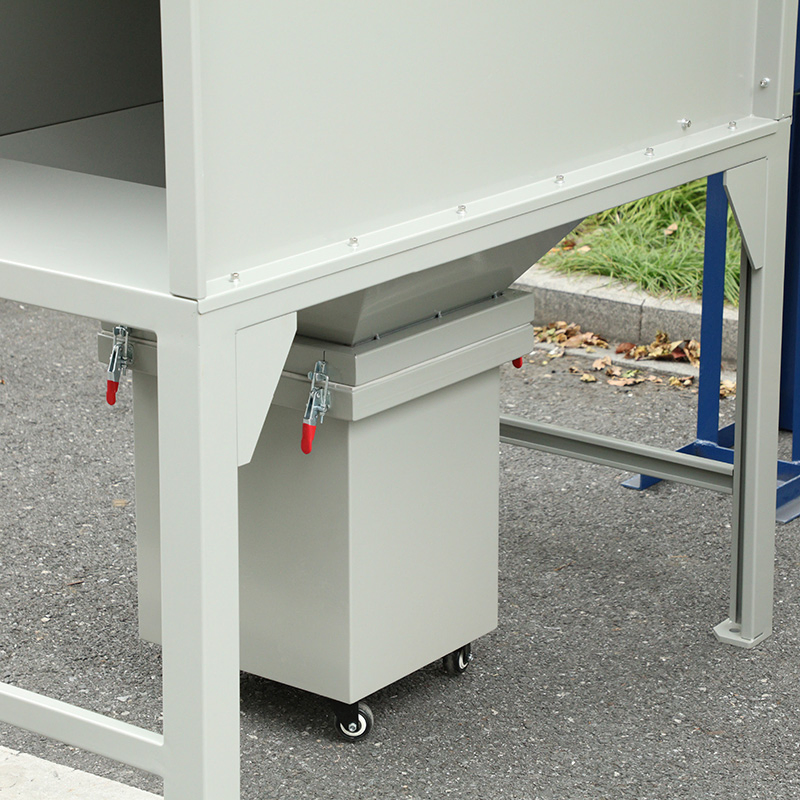

2. How does the powder recovery system work in the booth? The booth features a recovery system with an automatic collection bin. It uses an air pump and can be controlled by a PLC system to collect and reuse oversprayed powder after sieving.

3. What are the heating capabilities of the curing oven? The oven uses high-quality electric tubes that heat up to 180°C in approximately 30 minutes, with a maximum temperature capacity of 220°C.

4. Is the KF-X2 spray gun easy for beginners to operate? Yes, the KF-X2 gun includes three pre-set programs (Flat mode, Corner mode, and Recoating mode), making it very user-friendly for those new to powder coating.

5. What is the typical lead time for delivery? Orders are typically shipped within 30 working days after payment is received, usually via sea freight.

6. Does the equipment come with a warranty? The powder coating booth and related main components come with a 12-month warranty for peace of mind.
