Mutrade 2700kg Capacity Underground Pit Car Parking System with CE

Customization:	Available
Parking Post:	2or4 Cars
Level:	2 Levels

Basic Specifications

Model NO.ST2127

Capacity2700kg

ColorCustomized

InstallationIndoor, Underground

Lifting Height2.2 Meters, 1769mm

MaterialAluminum

OperationManual / Button

Safety FeaturesAutomatic Safety Locks, Emergency Stop Button, Overload Protection

Vehicle CompatibilitySedans, SUVs

Warranty12 Months

Drive ModeHydraulic

CertificationCE, ISO

Surface TreatmentPowder Coating

OriginChina

Product Introduction

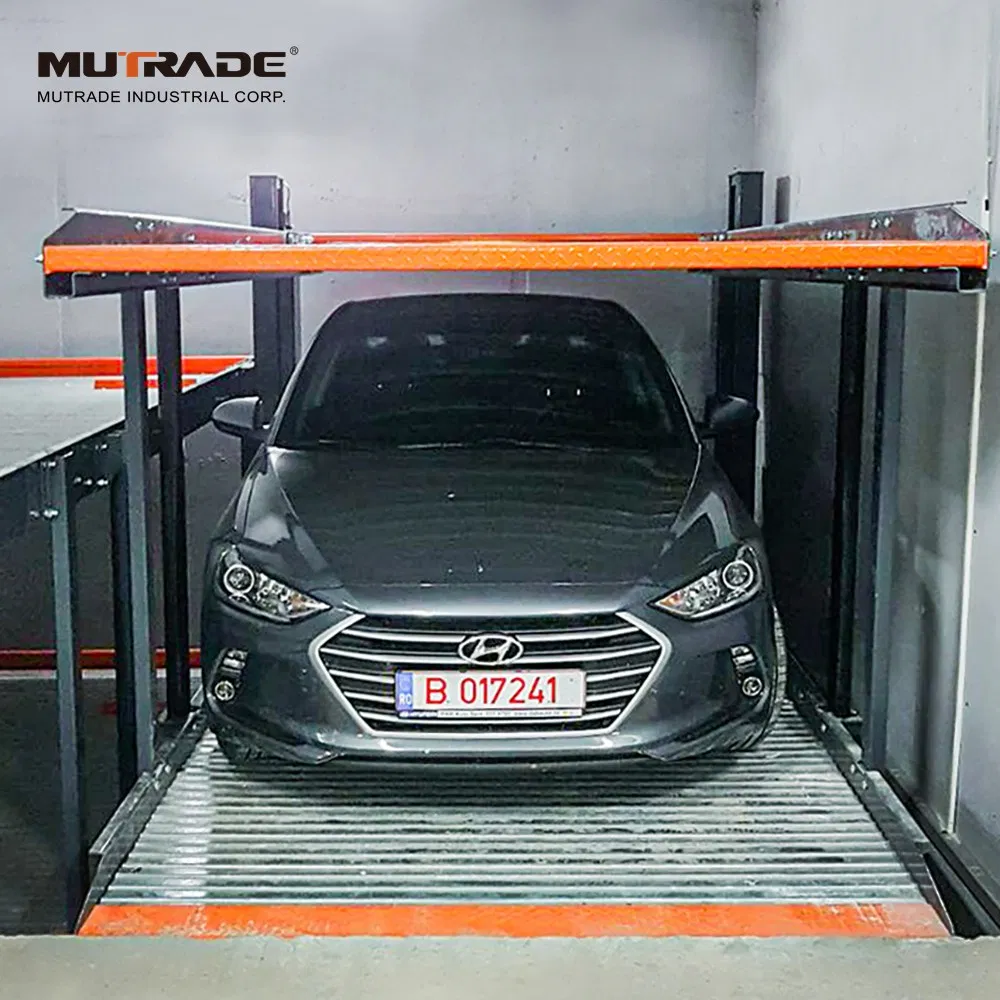

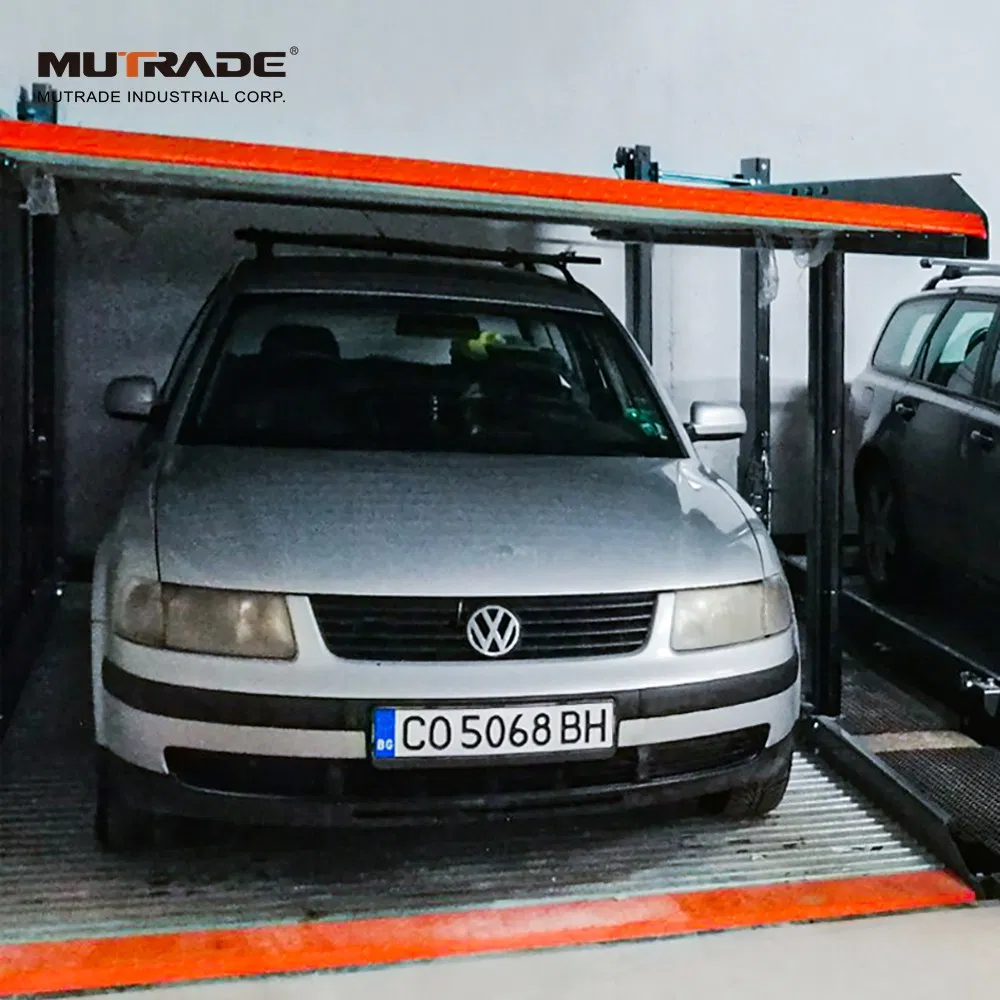

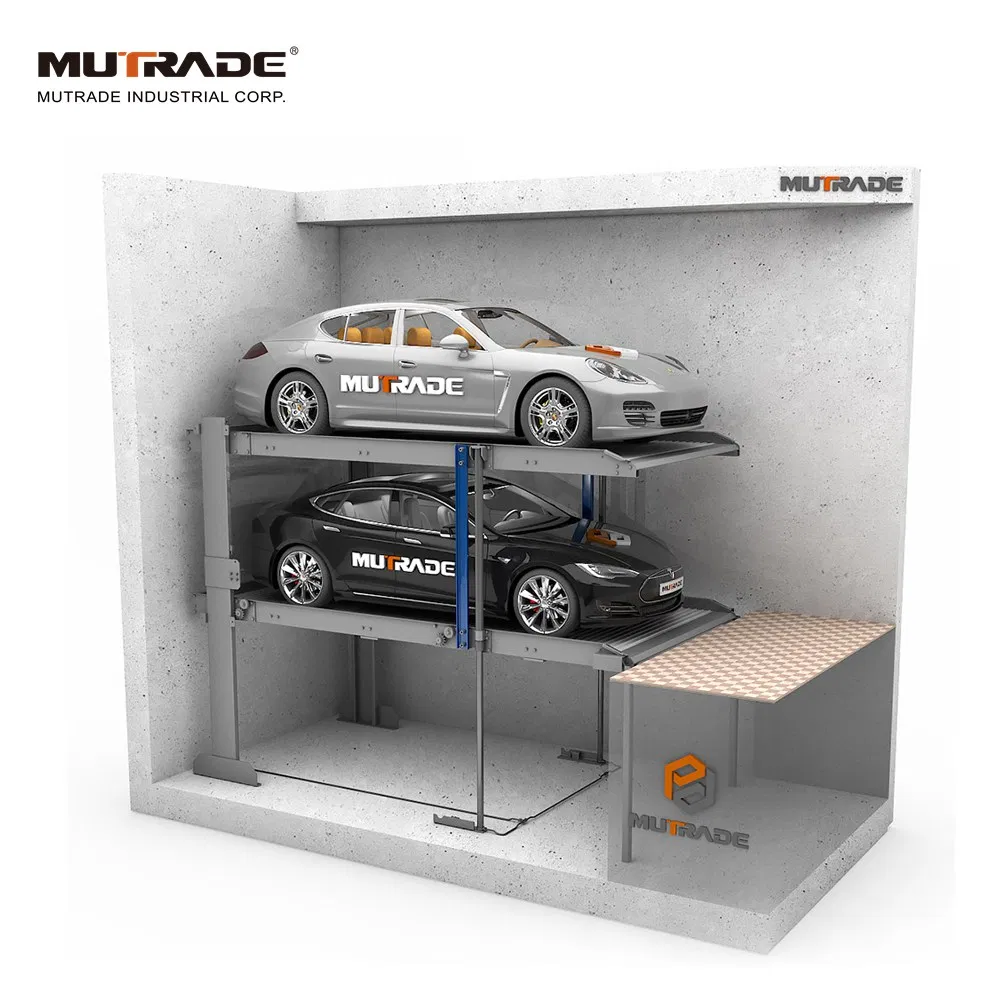

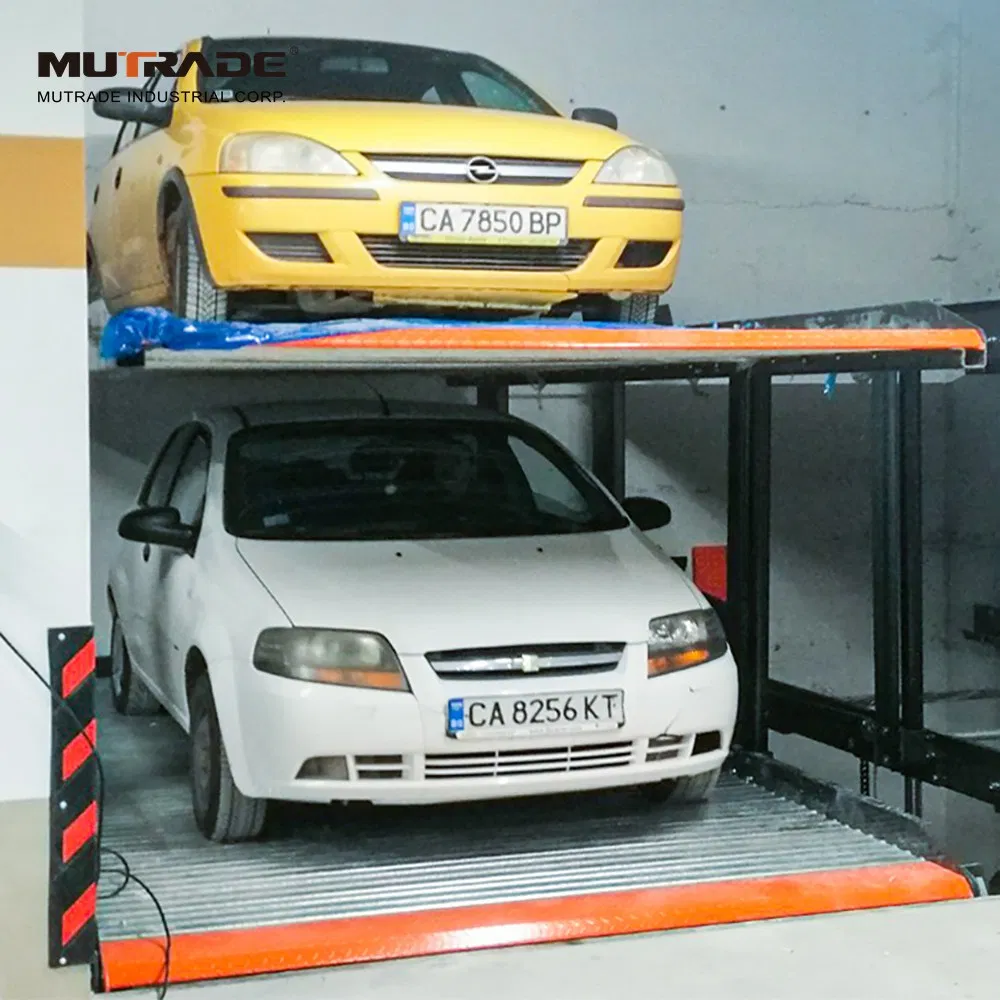

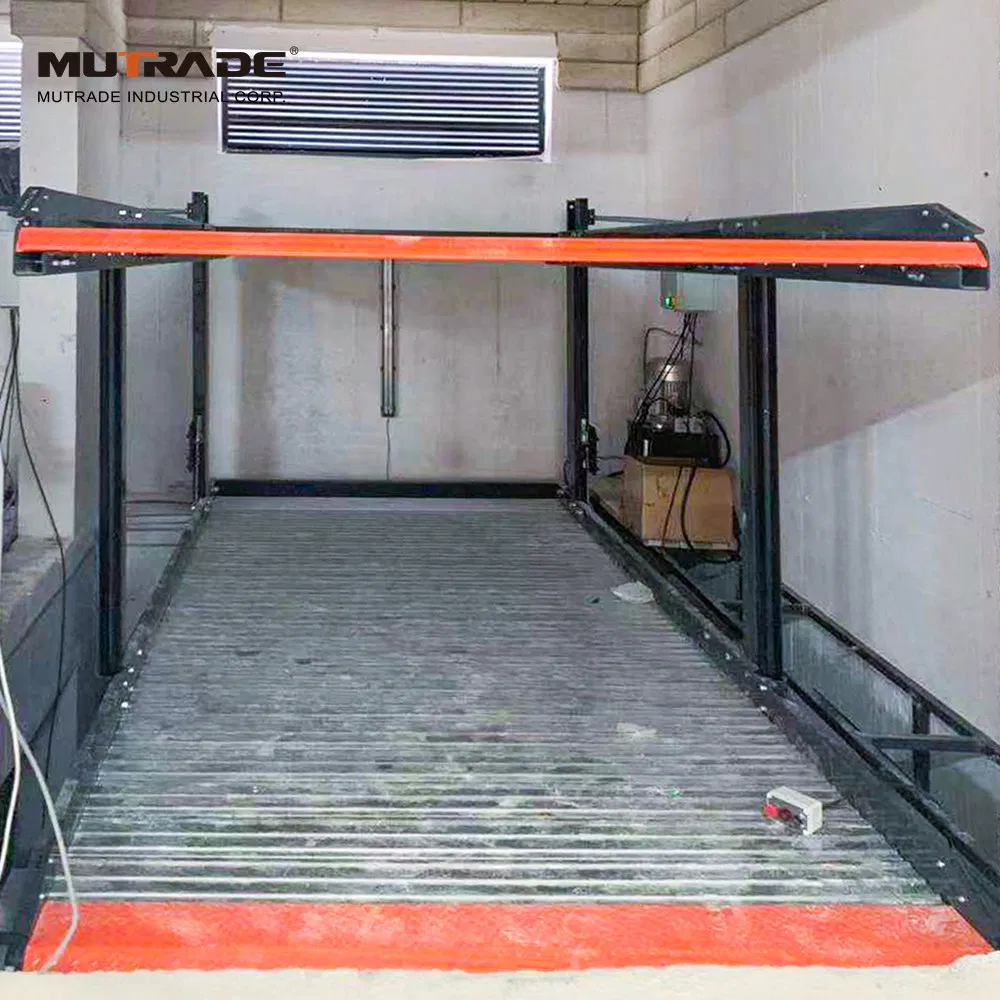

Starke 2127 and Starke 2227 are newly developed parking lifts of pit installation, offering 2 parking spaces or 4 parking spaces above each other, one in pit and another on ground. Their new structure allows 2300mm entrance width within total system width of 2550mm only. Both are independent parking, no cars need to drive out before using the other platform. Operation can be achieved by wall-mounted key switch panel.

Key Features & Advantages

1. TUV Compliant Certification standard 2006/42/EC and EN14010. The most authoritative certification in the world.

2. Ashkenazi Structure Hydraulic System Adopts German top-level product structure design, which is stable and reliable, doubling the lifetime compared to older models.

3. Galvanized Pallet Anti-slip corrugated deck protects both vehicle and driver. Highly durable and high-heel shoe friendly.

4. Zero Accident Security System All-new upgraded security system designed for maximum safety.

5. Dynamic Locking Device Mechanical anti-falling locks in the front of the platform hold the pit parking lift securely in place.

6. Multiple Chain Protection Detection of loose or broken chains ensures immediate protection and safety.

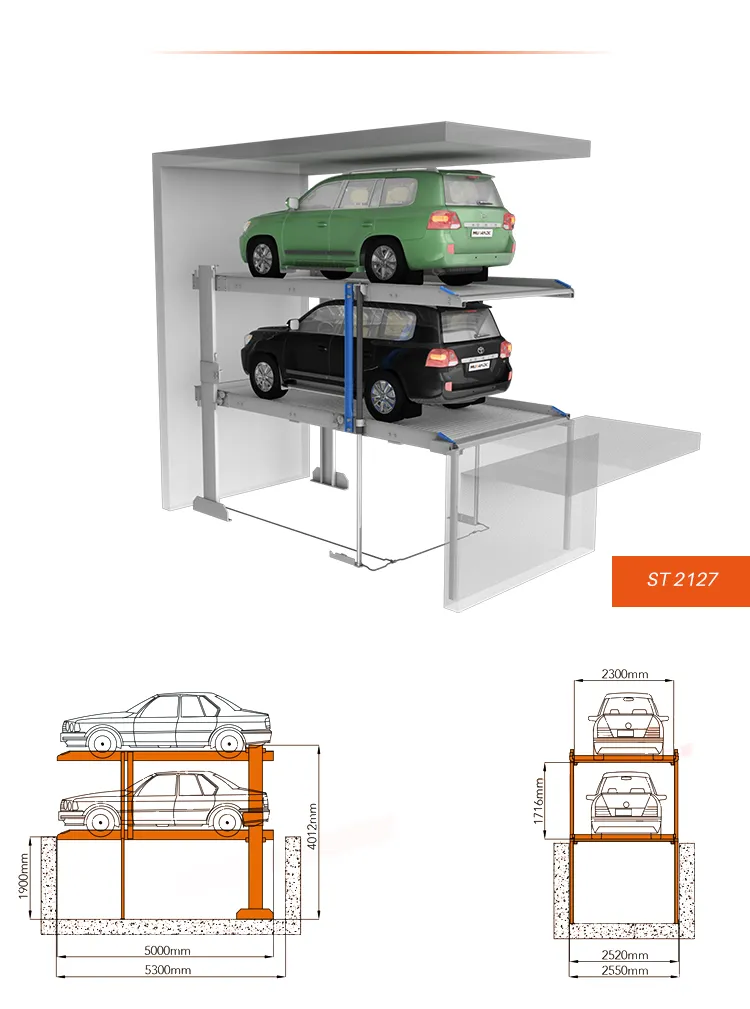

Technical Specifications

Model	Starke 2127	Starke 2227
Vehicles per unit	2	4
Lifting capacity	2700kg	2700kg
Available car length	5000mm	5000mm
Available car width	2050mm	2050mm
Available car height	1700mm	1700mm
Power pack	5.5Kw hydraulic pump	5.5Kw hydraulic pump
Power supply	200V-480V, 3 Phase	200V-480V, 3 Phase
Operation mode	Key switch	Key switch
Safety lock	Dynamic anti-falling	Dynamic anti-falling
Rising / descending time	<55s	<55s
Finishing	Powder coating	Powder coating

Technical Details

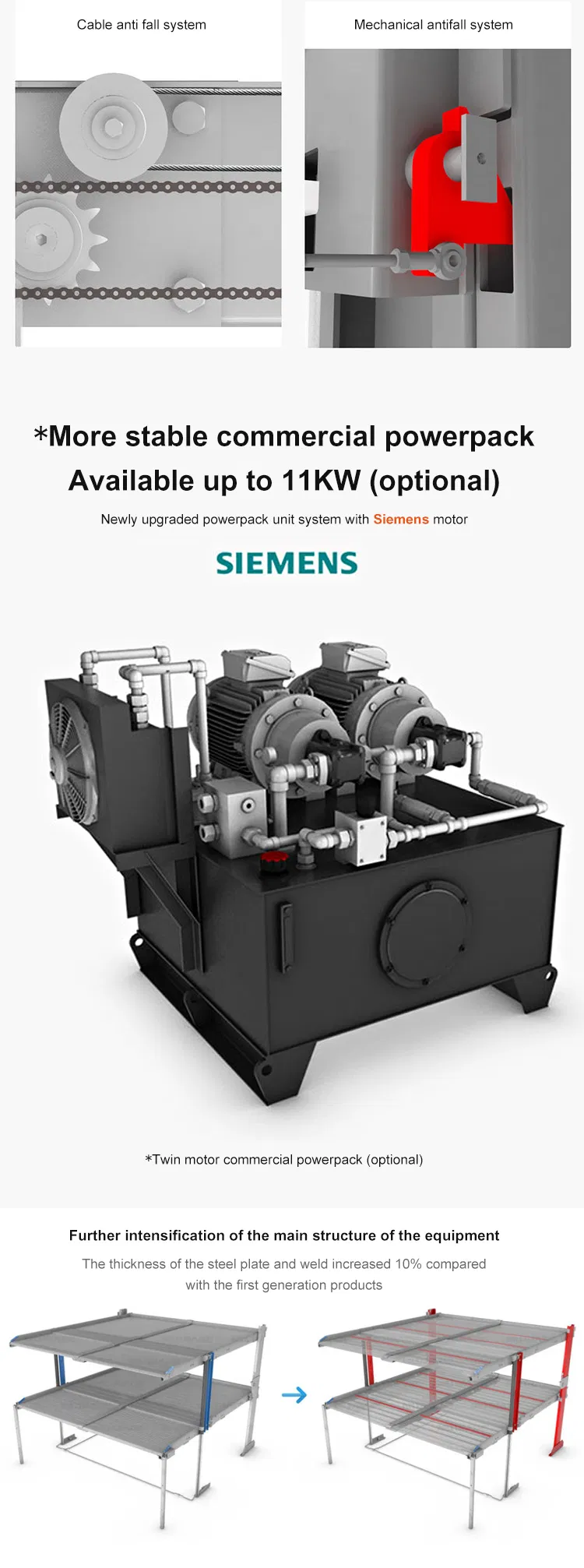

New Type Hydraulic System

Germany's top product structure design makes the hydraulic system stable, reliable, and maintenance-free.

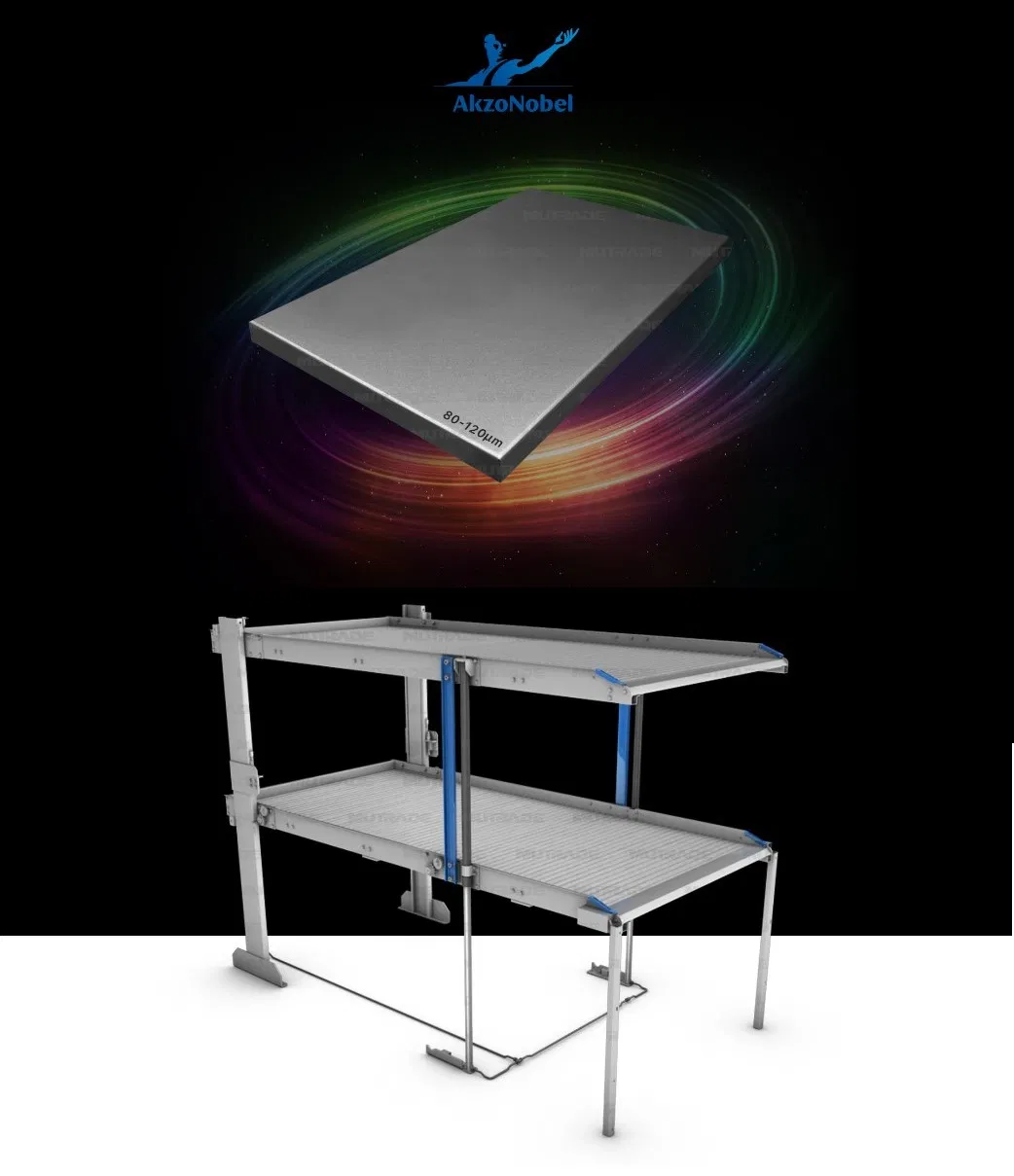

Surface Finishing & Manufacturing

Excellent surface finishing with AkzoNobel powder coating for enhanced weather resistance and adhesion.

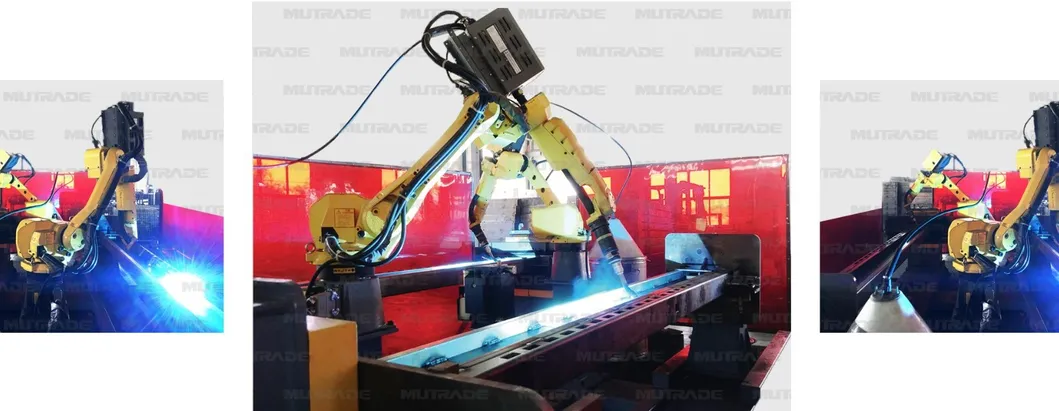

Laser Cutting + Robotic Welding: Accurate laser cutting improves part precision, while automated robotic welding ensures firm and beautiful joints.

Overview

Providing advanced mechanical parking solutions with a focus on precise manufacturing and strong service support. Our systems are developed to be customer-oriented, utilizing advanced technology to solve parking challenges globally.

Frequently Asked Questions

Q1: What is the maximum lifting capacity of the Starke series? A: The Starke 2127 and 2227 both feature a robust lifting capacity of 2700kg per platform.

Q2: Is this parking system suitable for SUVs? A: Yes, the system is compatible with both standard sedans and SUVs, with an available car height of up to 1700mm.

Q3: Do I need to move the ground-level car to access the pit-level car? A: No, this is an independent parking system. Both platforms can be used independently without moving the other vehicle.

Q4: What safety mechanisms are included in the lift? A: The system includes dynamic anti-falling locks, emergency stop buttons, overload protection, and chain break protection devices.

Q5: What is the required power supply for operation? A: The system requires a 3-phase power supply ranging from 200V to 480V, 50/60Hz, depending on your local grid.

Q6: What certifications does this equipment hold? A: The product is fully TUV compliant and carries CE and ISO certifications, meeting international safety standards.
