Hydraulic Pit Parking Stacker Underground Car Parking System with Pit

Customization:	Available
Parking Post:	2or4 Cars
Level:	2 Levels

Send Inquiry

Product Description

Basic Specifications

Model NO.

ST2127

Capacity

2700kg

Lifting Height

2.2 Meters, 1769mm

Installation

Indoor, Underground

Material

Aluminum

Drive Mode

Hydraulic

Total Width

2614mm

Safety Features

Automatic Locks, Emergency Stop, Overload Protection

Certification

CE, ISO

Warranty

12 Months

Product Introduction

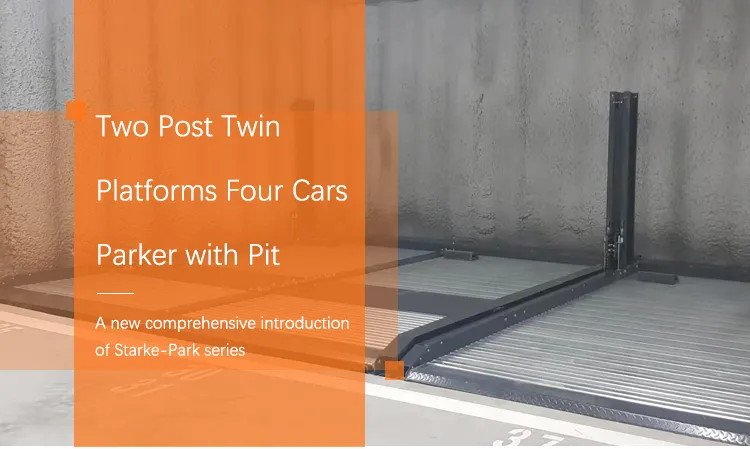

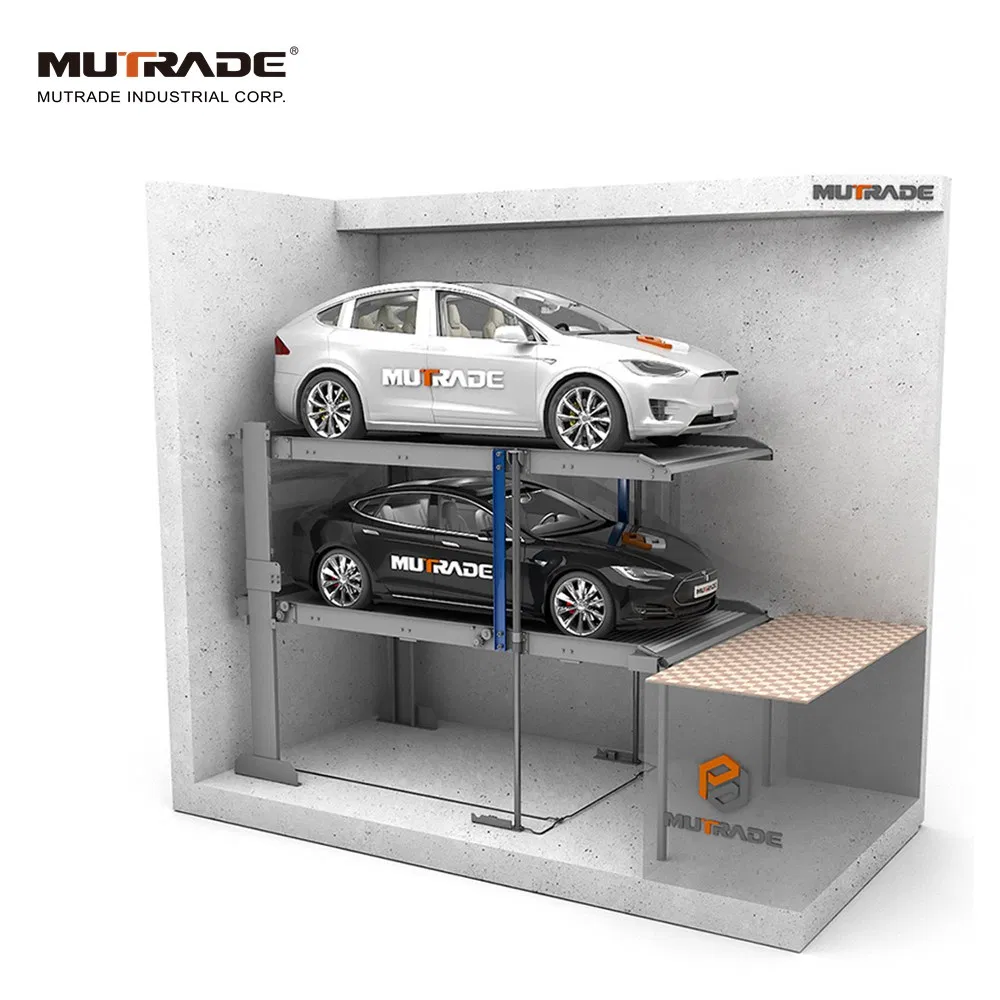

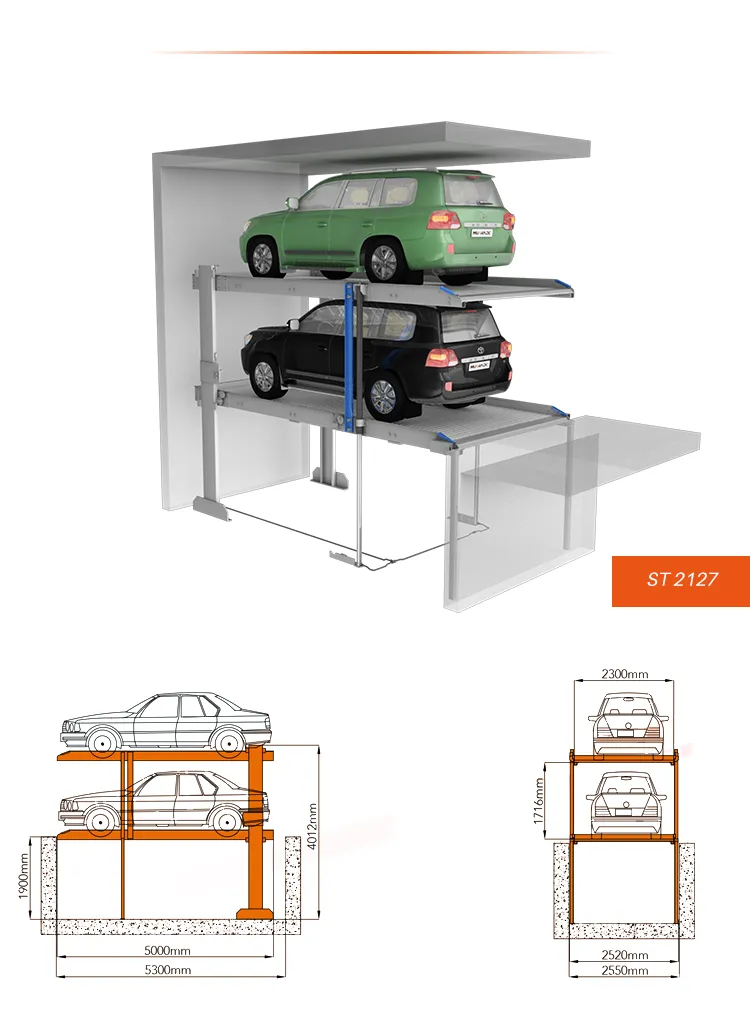

Starke 2127 and Starke 2227 are newly developed pit installation parking lifts. They offer 2 or 4 parking spaces arranged vertically—one in the pit and another on the ground. The advanced structure allows for a 2300mm entrance width while maintaining a slim total system width of only 2550mm.

These systems provide independent parking, meaning vehicles can be accessed without moving other cars. Operation is easily managed via a wall-mounted key switch panel.

Key Features & Advantages

●

TUV Compliant: Certified under 2006/42/EC and EN14010 standards, the most authoritative certification globally.

●

Advanced Hydraulic System: Features an Ashkenazi structure design. It is stable, reliable, and has a service life twice as long as traditional systems.

●

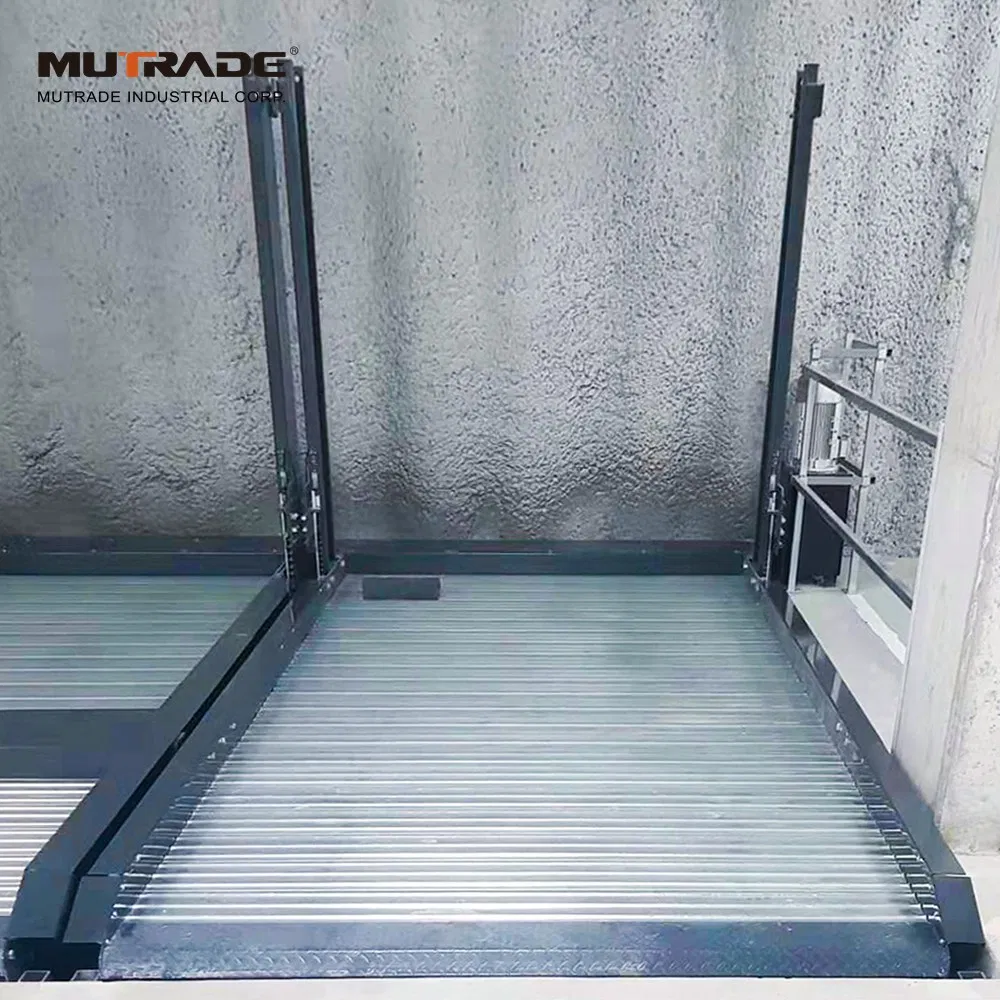

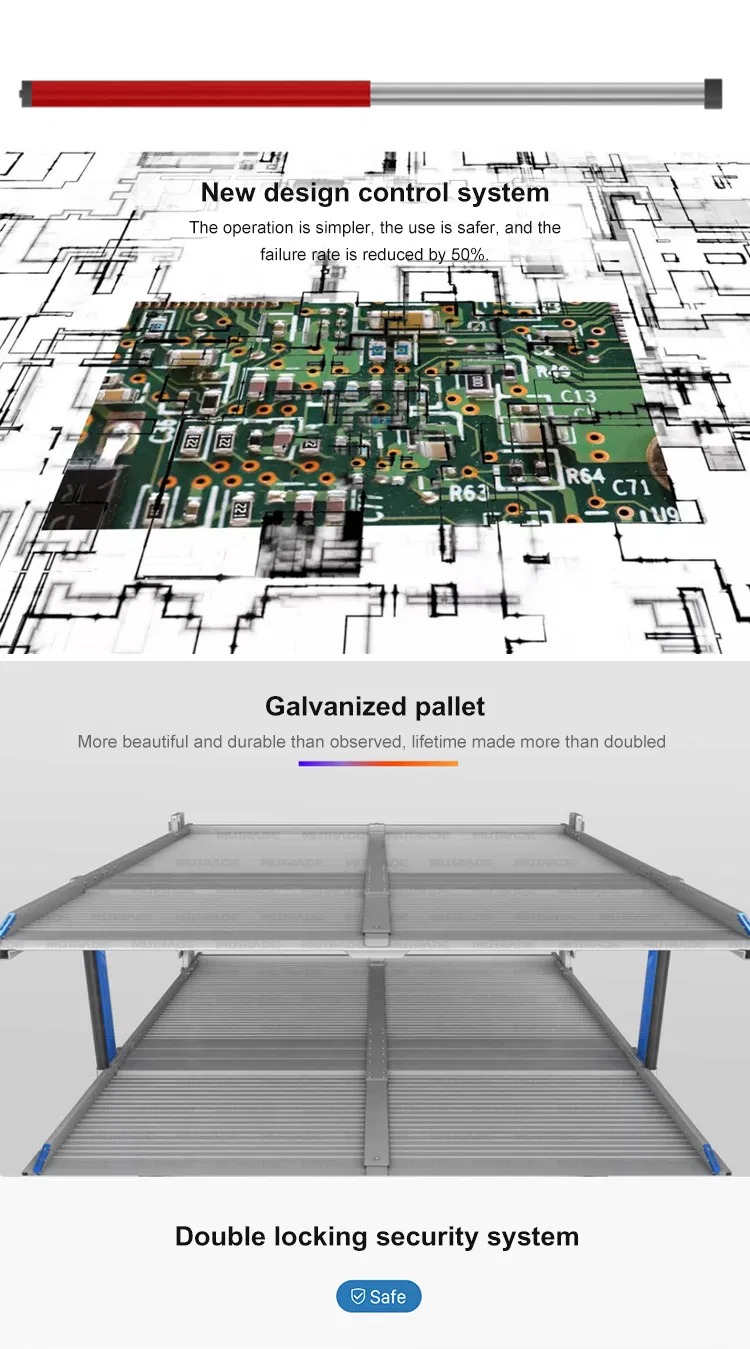

Galvanized Pallet: Durable and anti-slip corrugated deck protects vehicles and is high-heel shoe friendly.

●

Zero Accident Security: Fully upgraded security system designed for maximum safety.

●

Dynamic Locking: Mechanical anti-falling locks secure the platform firmly in place.

●

Multiple Chain Protection: Sensors detect chain looseness or breakage to trigger safety protocols.

Technical Specifications

Model	Starke 2127	Starke 2227
Vehicles per unit	2	4
Lifting capacity	2700kg	2700kg
Available car length	5000mm	5000mm
Available car height	1700mm	1700mm
Power pack	5.5Kw hydraulic pump	5.5Kw hydraulic pump
Operation mode	Key switch	Key switch
Safety lock	Dynamic anti-falling	Dynamic anti-falling
Rising / descending time	<55s	<55s

Quality Details

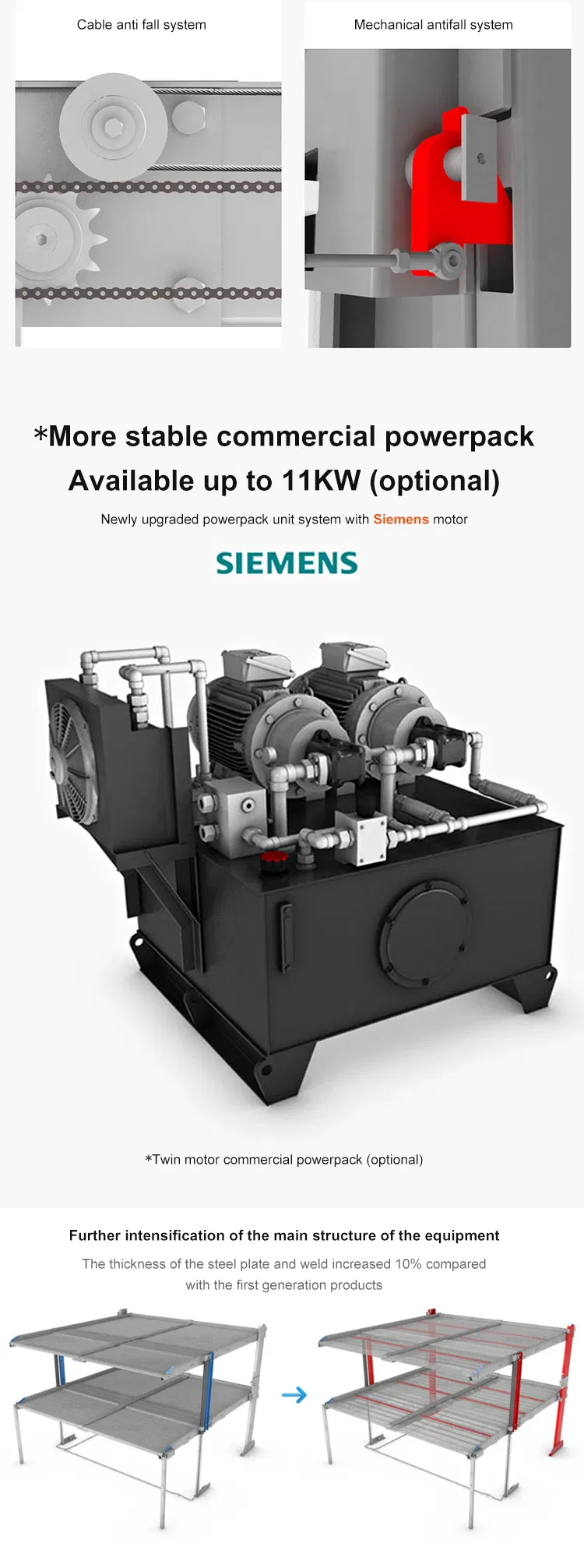

German Structure Hydraulic System

Top-tier design ensuring maintenance-free operation and extreme reliability.

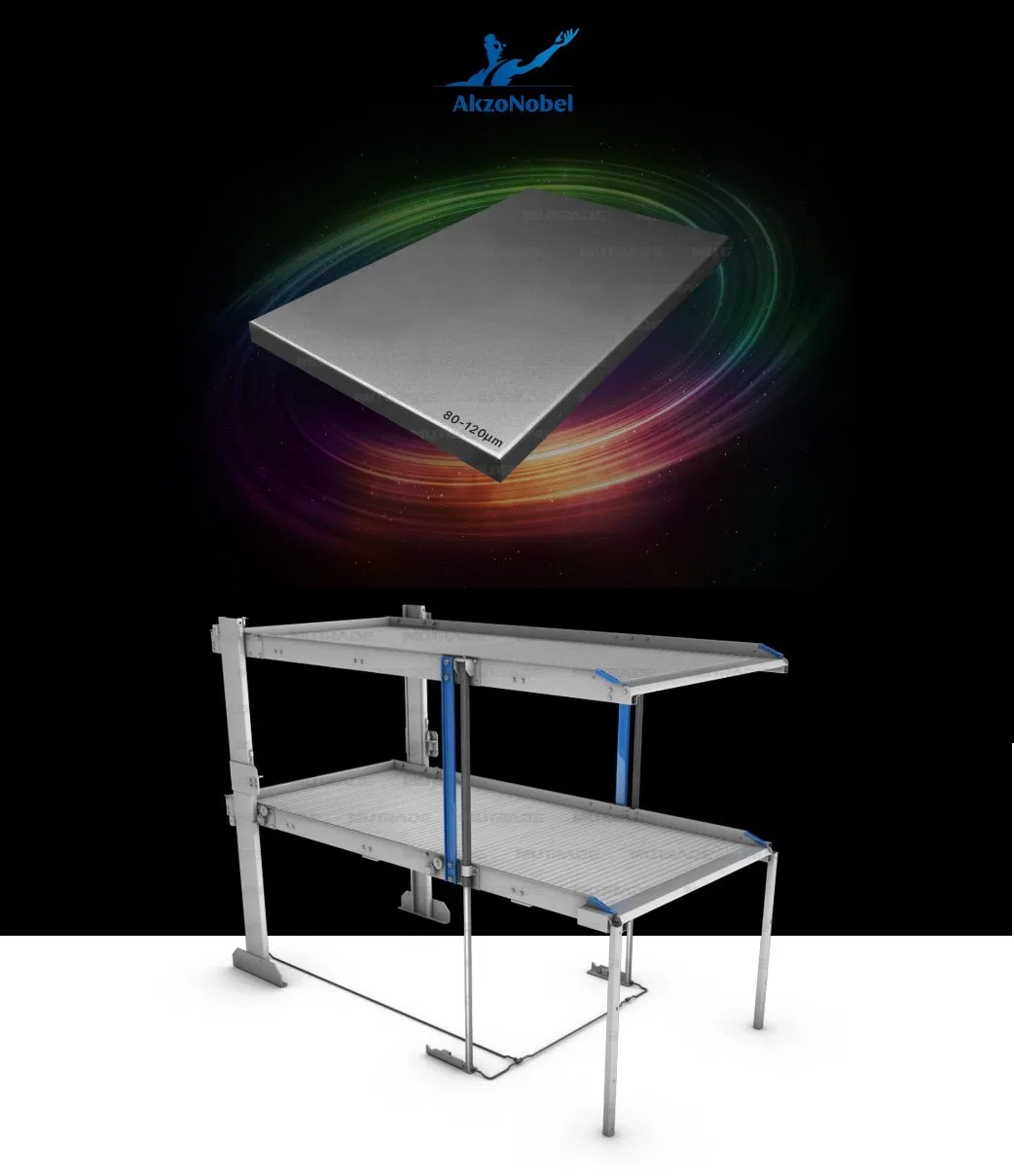

Superior Finishing & Precision

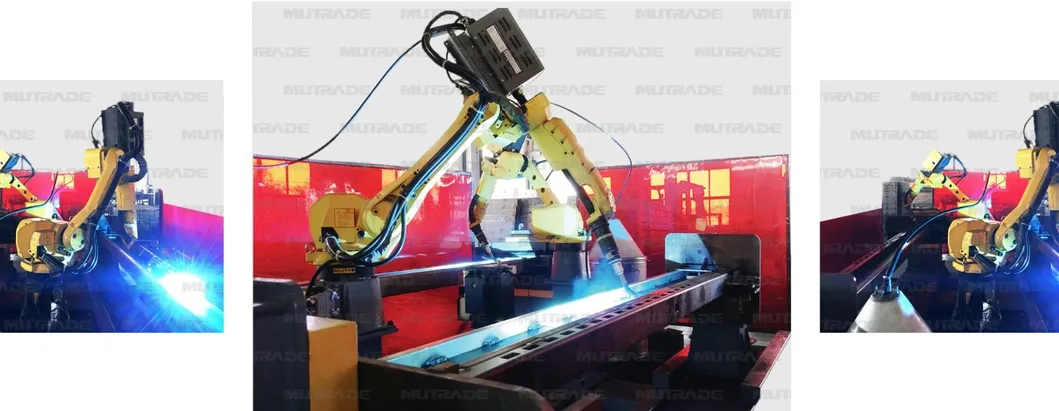

Using AkzoNobel powder coating for weather resistance and robotic welding for structural integrity.

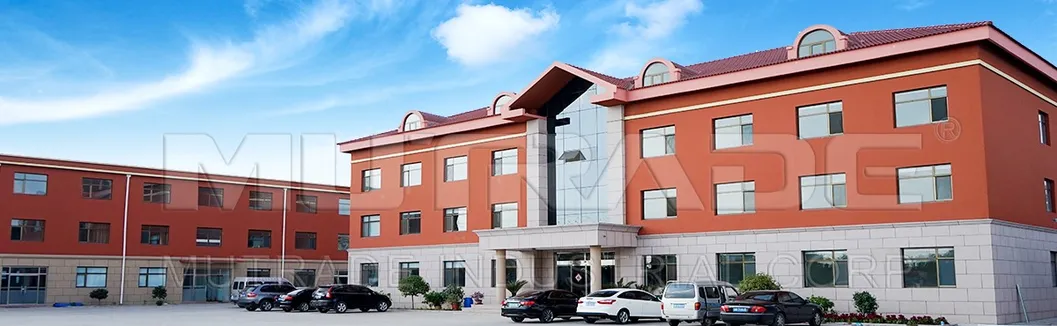

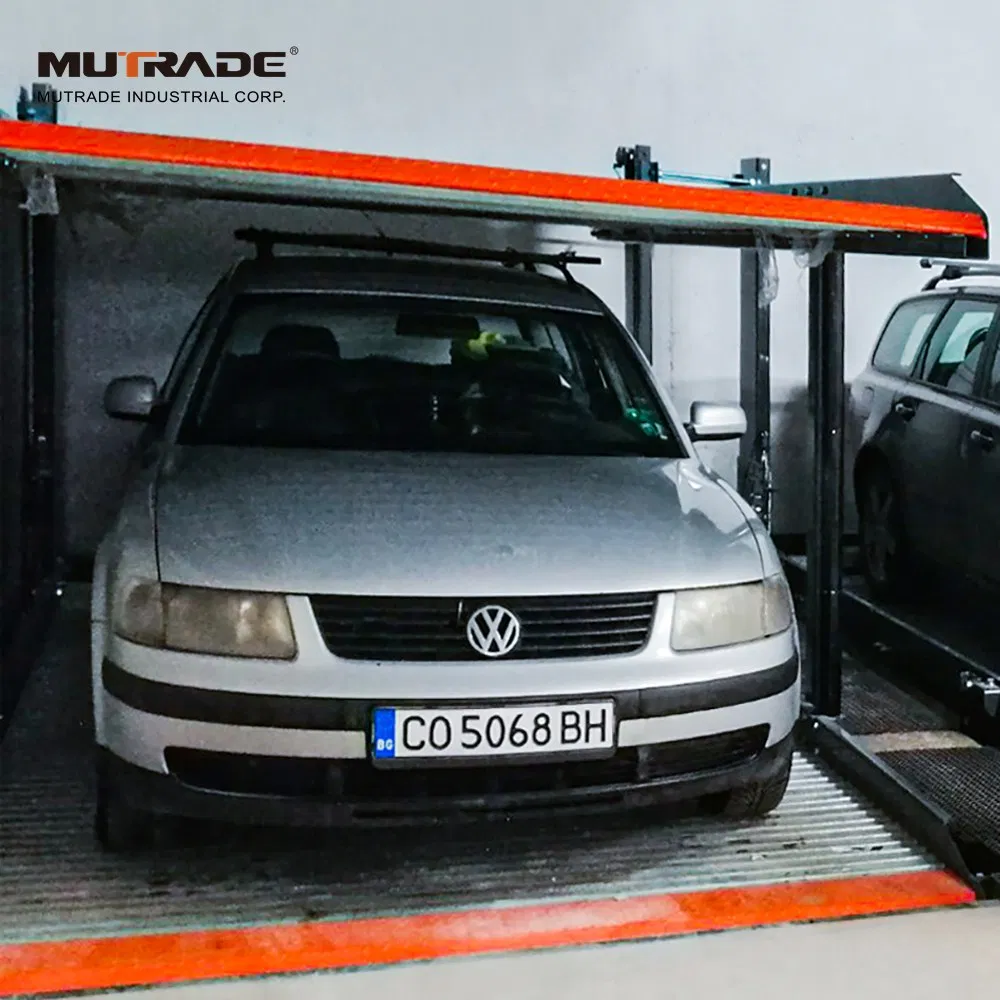

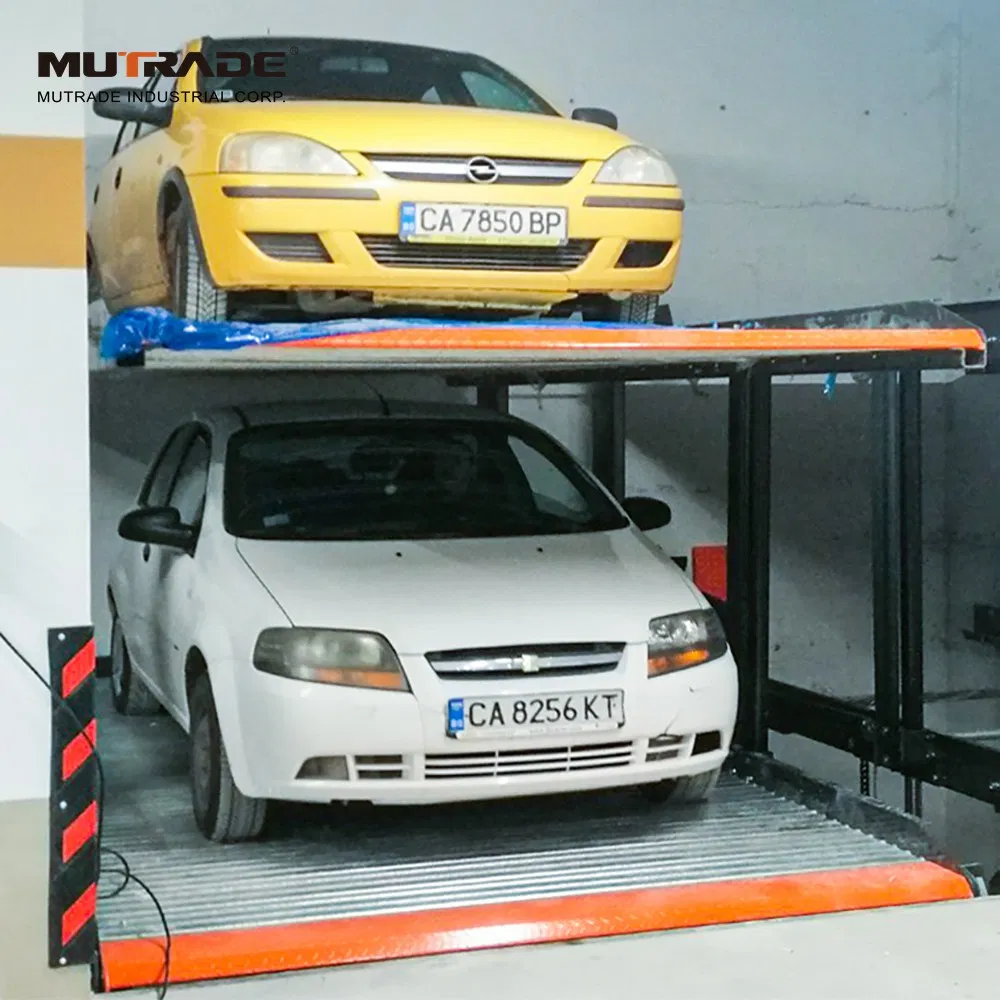

Production Showcase

Frequently Asked Questions

1. What is the maximum weight capacity for these lifts? Both Starke 2127 and 2227 models have a lifting capacity of 2700kg, making them suitable for sedans and most SUVs.

2. Can I use these lifts independently? Yes, these are independent parking lifts. You can drive the car out of the pit or the ground level without moving the other vehicle.

3. What are the installation requirements? These lifts require a pit installation, making them ideal for indoor or underground parking spaces where vertical clearance is limited.

4. What kind of safety systems are in place? The system includes dynamic anti-falling locks, multiple chain protection devices, emergency stop buttons, and overload protection.

5. Is the product weather-resistant? Yes, the surface treatment involves AkzoNobel powder coating and galvanized pallets, providing excellent weather resistance and durability.

6. How long does it take to raise or lower the platform? The rising and descending time is less than 55 seconds, ensuring quick access to your vehicle.
