Kitchen Fire Protection System with Cabinet Single Gas Cylinder 20L Fire Suppression Agent Fire Suppression System

Customization: Available
Agent: Dry Powder
Type: Portable Fire Extinguisher

Product Description

🟦

Basic Specifications

Object:
Class A Fires
Size:
6kg
Certification:
GB8013-2005, CCC, CE
Effective Range:
3.5m
Retirement Life:
5 Years
Dry Powder Type:
Ordinary Dry Powder
Cylinder Material:
St12, Steel
Product Name:
Water Based Fire Extinguisher
Production Capacity:
100,000 Pcs Per Week
Package Size:
15.0cm * 15.0cm * 30.0cm
🛠️

Product Description & Components

The wet chemical fire suppression system is specifically designed to combat high-temperature grease fires in commercial kitchens. The system operates by forming an air-excluding soapy foam blanket through saponification, cooling the oil below its ignition point. It complies with NFPA 96 and NFPA 17A standards.

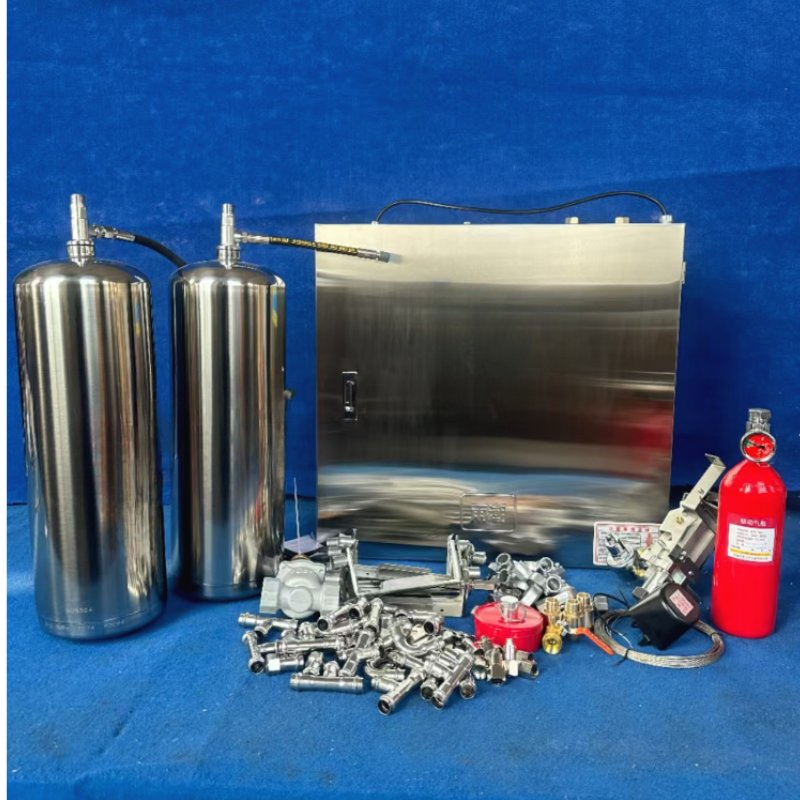

Core System Components:
  • 10LTR Cylinder with Valve Assembly

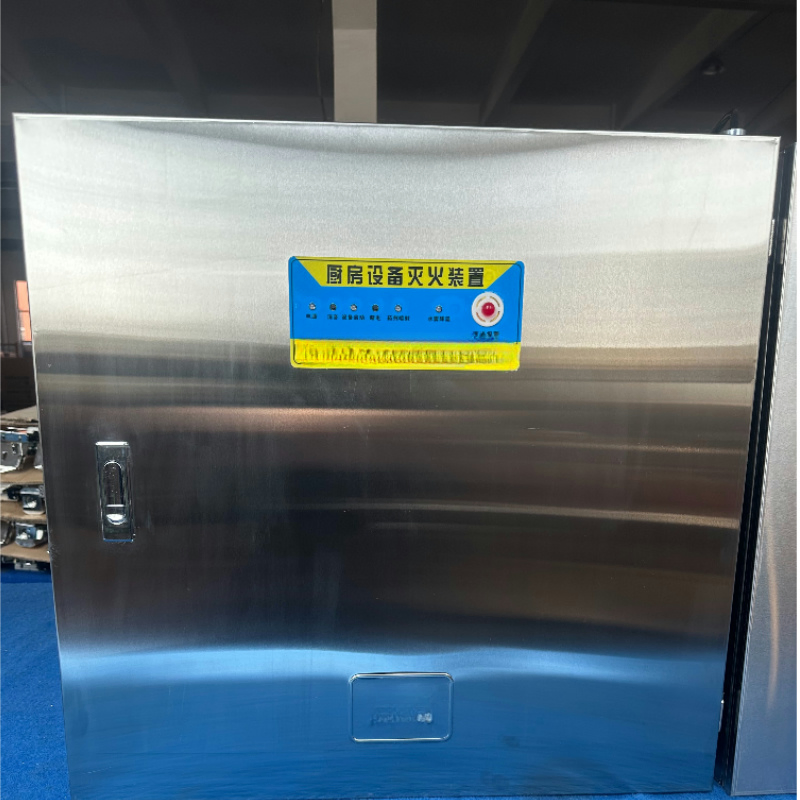

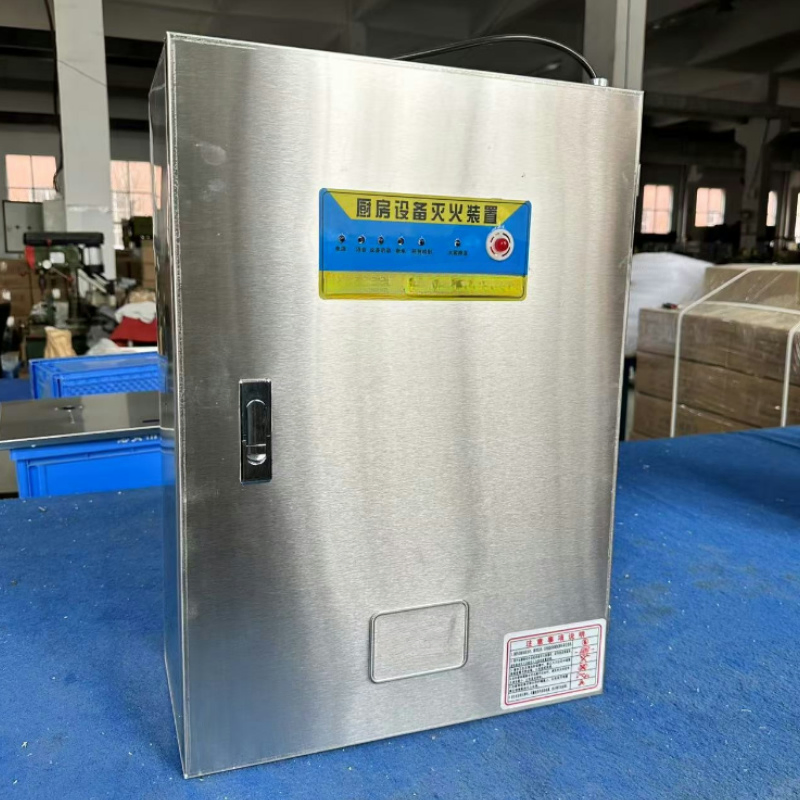

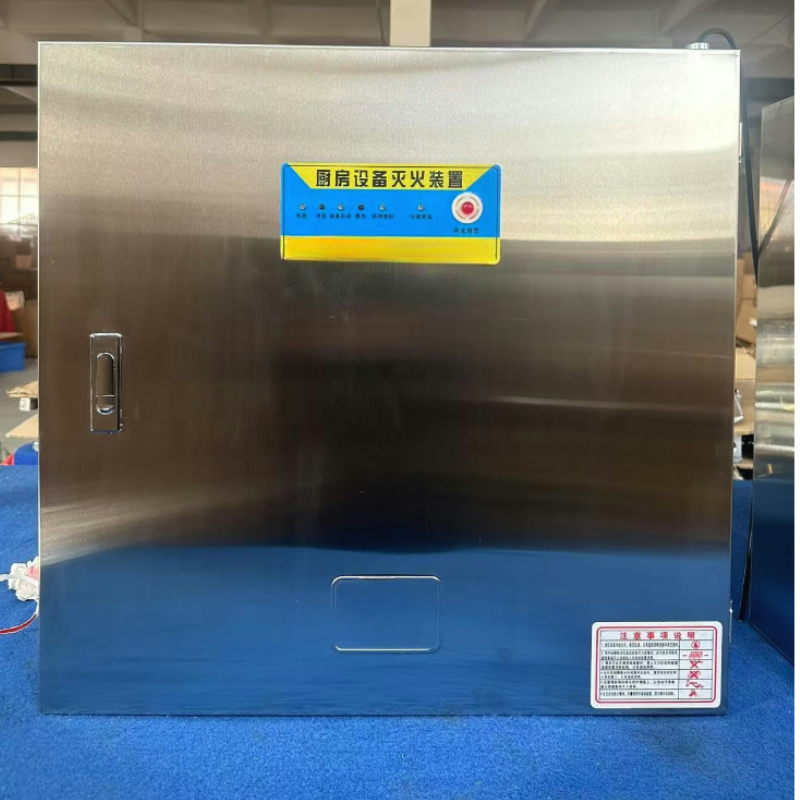

  • Stainless Steel Cabinet & Agent Drum
  • Machine Driving Device & Manual Actuated Box
  • High Pressure Nitrogen Cylinder & Pressure Reduce Valve
  • Fusible Metal Chain Brackets & Release Mechanisms
  • Frog Nozzles (1" and 2") with Dust Covers
  • Environmental Friendly Agent (10 Years Expiry)

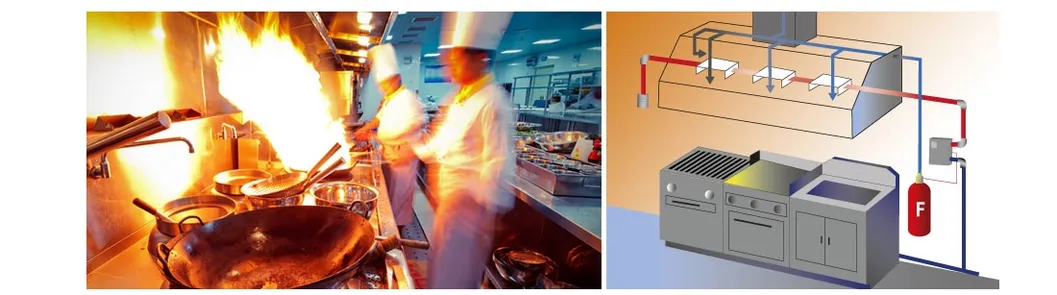

Kitchen Fire Protection System Components

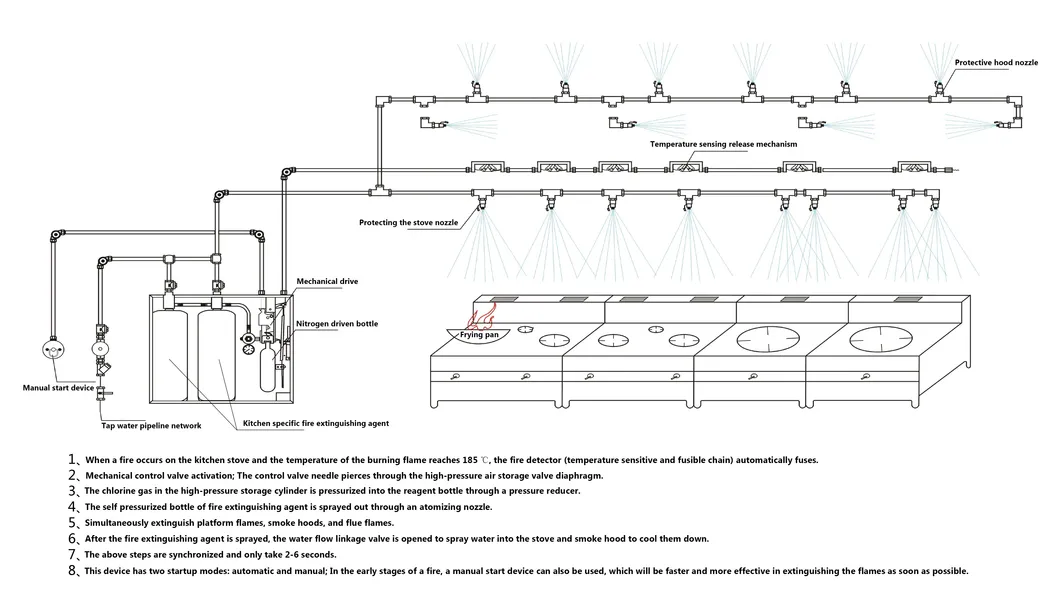

Fire Suppression System Overview
📂

Applications & Operation

This system is ideal for Restaurants, School Cafeterias, Hospital Kitchens, Hotel Kitchens, and Banquet Facilities. It features three start modes: automatic detection, manual start, and emergency start. It provides 24-hour monitoring and can automatically shut off fuel sources and initiate water cooling after the fire is extinguished.

Kitchen Hood Protection
System Valve Detail

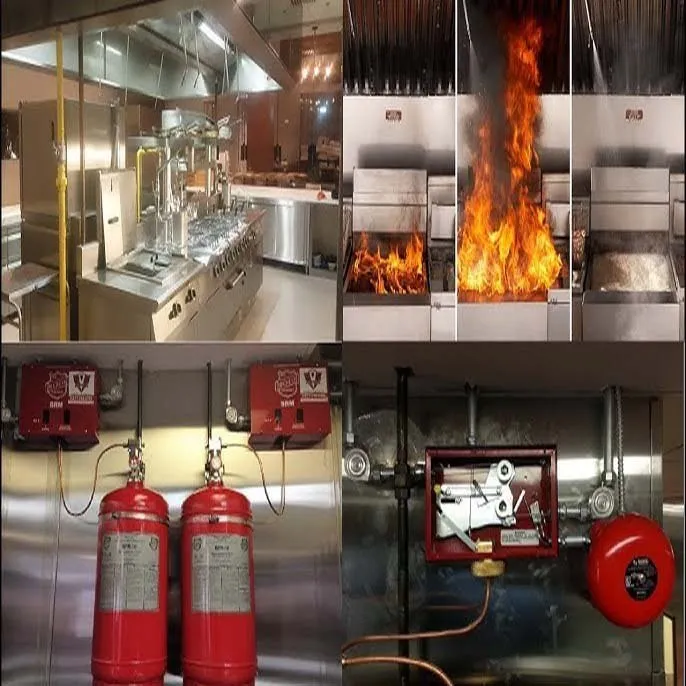

Extinguisher Nozzle
📊

System Configuration Table

Device Type Bottle Qty Max Nozzles Heat Detectors Protection Length
Single Bottle Group 10L * 1 13 Pcs 15 Pcs 5 - 7 Meters
Double Bottle Group 10L * 2 26 Pcs 30 Pcs 10 - 13 Meters
Triple Bottle Group 10L * 3 39 Pcs 45 Pcs 15 - 18 Meters
Fire Extinguisher Manufacturing
Quality Control Process
📦

Packaging & Logistics

  • HS Code: 8424100000
  • General Packing: Each piece in OPP bag + Standard export carton.
  • Customization: Personalized packaging solutions available based on client request.
  • Protection: Careful sample and bulk order protection to ensure safe delivery.
Packaging Detail
Logistics Support

Frequently Asked Questions

What is the main advantage of a wet chemical system?
It uses saponification to turn burning fat into soap, quickly suppressing grease fires and providing a cooling effect to prevent re-ignition.
What are the available start modes for the kitchen fire system?
The system supports three modes: Automatic detection (via fusible links), Manual start-up, and Emergency start.
How long does the fire extinguishing agent last?
The environmental friendly agent used in our systems has a validity period of up to 10 years.
What certifications do your fire extinguishers hold?
Our products have passed CE certification by TUV and comply with GB8013-2005 and CCC standards.
Can the system handle different kitchen sizes?
Yes, we offer single, double, and triple tank configurations to protect hearth lengths ranging from 5 to 18 meters.
What are your standard payment terms?
We accept T/T, L/C, Western Union, and Cash. Samples can be prepared within 5 days.
