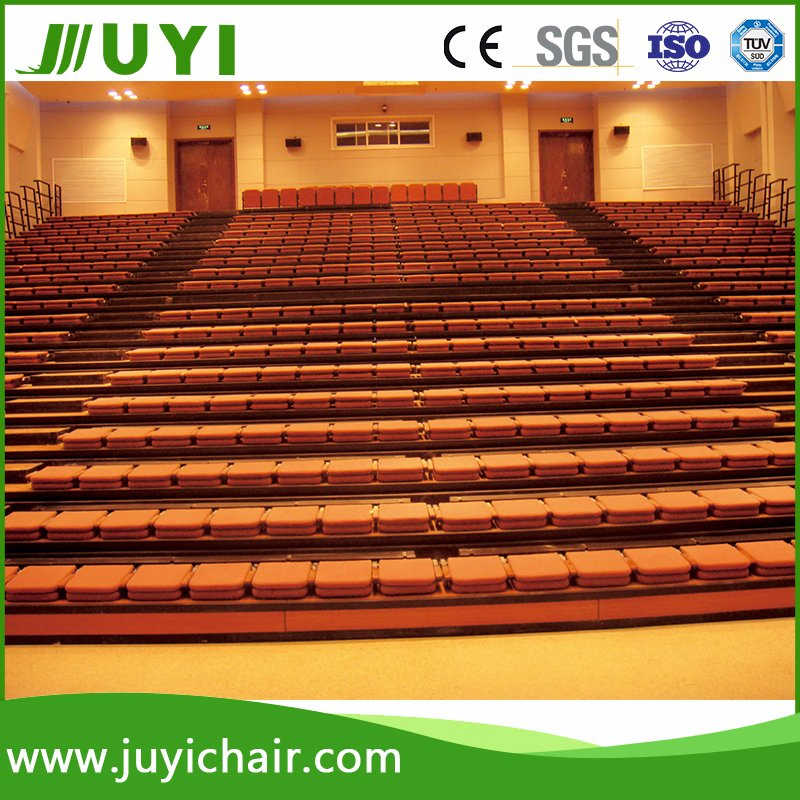

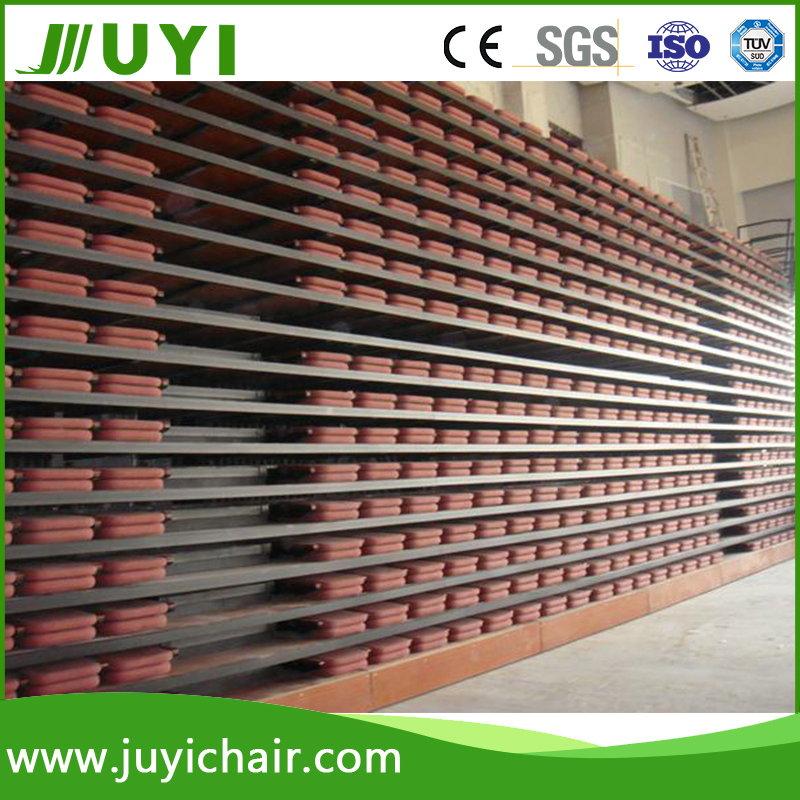

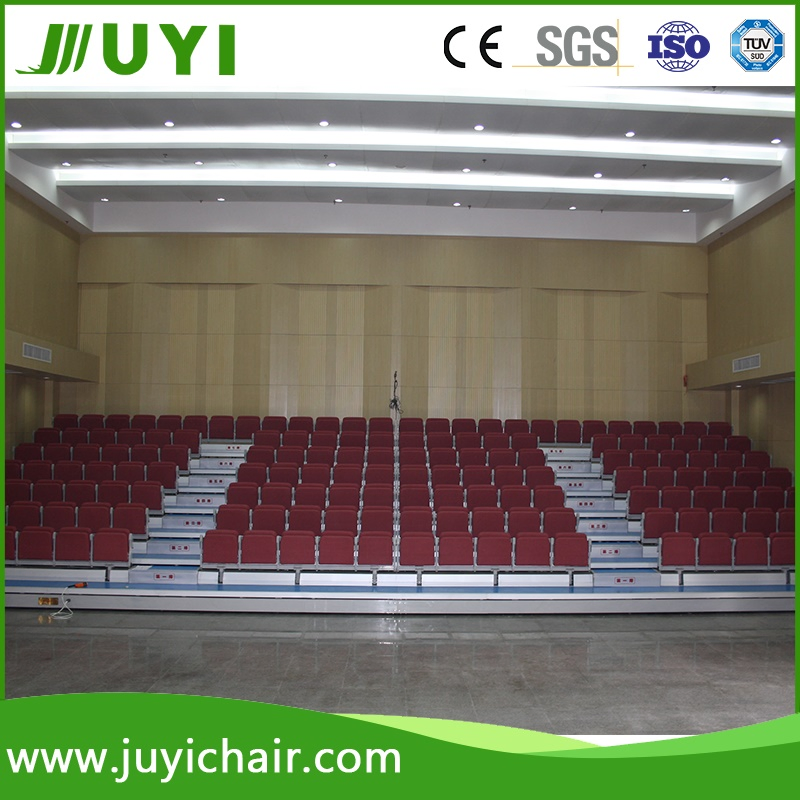

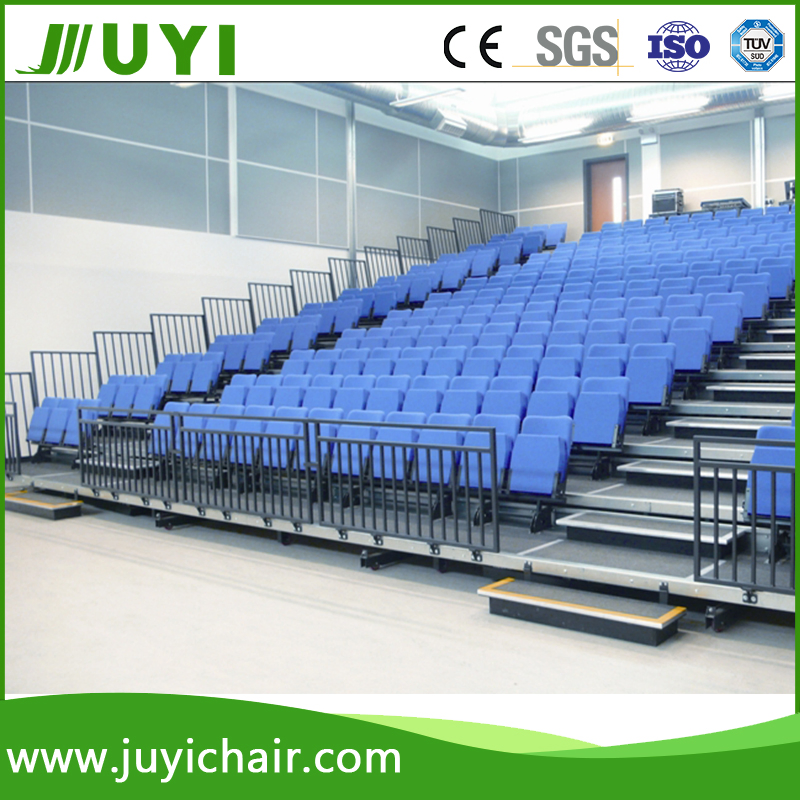

Jy-768r Grandstand Seating System Indoor Bleacher with Matel Leg Fabric Chair

Customization: Available
Material: Metal
Disassembly: Assembly

Product Description

i
Basic Information
Model NO.
JY-768R
Kind
Chair
Condition
New
Usage
Playground, Outdoor Party, Auditorium, Hall, Theater
Equipment
Seat System
Operation
Manual or Motor
Structure
Steel Dealt with Powder Coating
HS Code
9401719000
Capacity
50000 PCS / Year
Introduction

JY-768R Grandstand Seating System indoor bleacher with Metal Leg Fabric Chair

The telescopic seating system is widely used in variety of spaces like stadiums, TV studios, and all kinds of multifunctional places due to its significant advantage in space saving. Users can enjoy events sitting on the comfortable telescopic stand when it is extended. When closed, it saves a substantial amount of space for other activities.

Driven by either manual or electric operation, our telescopic stands feature superior structural design, aesthetic style, reliable safety measures, and accurate positioning. Key benefits include easy operation, convenient maintenance, and low noise levels.

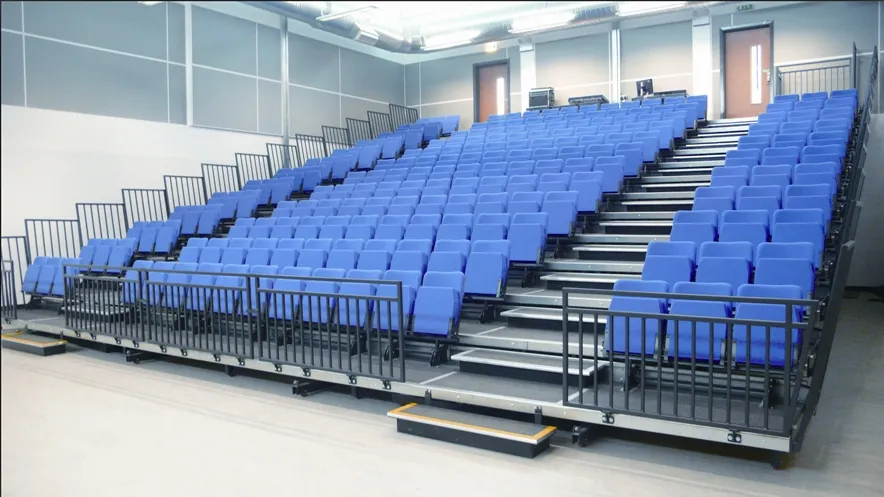

Grandstand Seating System
Chair Specifications
  • Chairs can be equipped with a back tablet.
  • Powder-coated metal steel leg frame for durability.
  • Solid wood painted armrest holder.
  • Molded foam, metal acoustic panel, and steel structure with spring in foam.
  • Fully upholstered seating and backrest.
  • Fabric colors optional from color swatch.
  • Center distance: 500mm or 550mm width arm to arm.

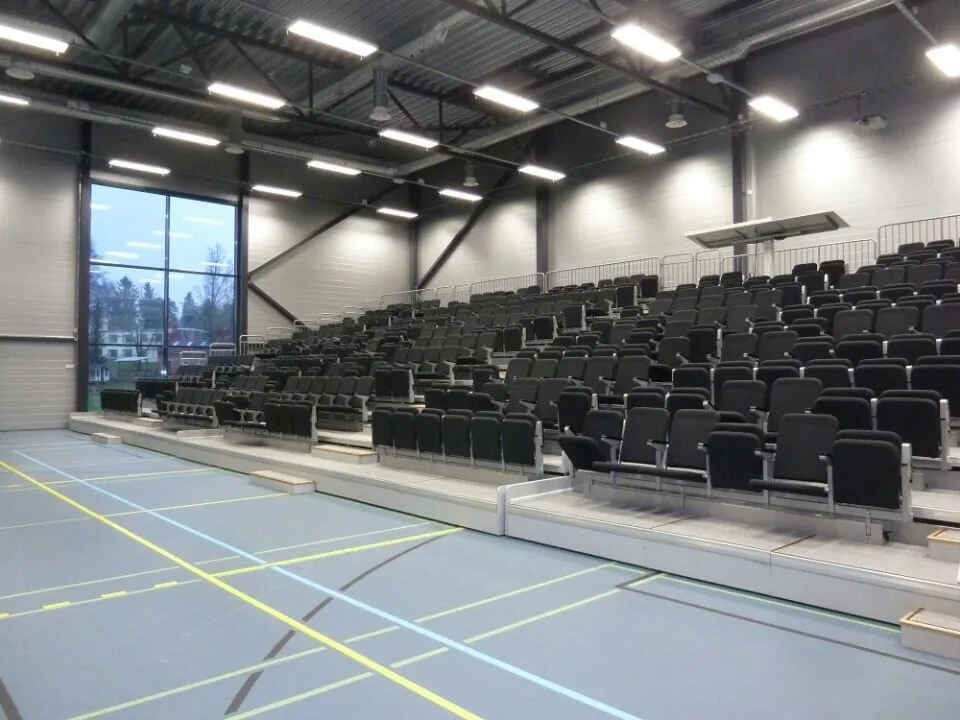

Fabric Chair Detail
Seating System Layout
System Structure & Tech Specs

Depending on the grandstand dimensions, different types of steel profiles are utilized. The system can be motorized using electric engines (380V or 220V) or operated manually. A specialized load distributor reduces concentrated pressure on the flooring. A unique spring system allows the unloaded grandstand to "float" over the wheels; when loaded, the springs compress and the load distributor rests firmly on the floor.

Structural Design
Technical Parameter Settings
Moving Speed75mm/s - 100mm/s
Location Accuracy±30mm
Driving Motor Power0.37 - 1.1kw
Power SupplyAC 380V 50-60HZ / AC 220V 50-60HZ
Lateral Depth of Steps800-930mm; 1800-1850mm
Dynamic Load (Step Surface)300kg/m²
Load of Bottom Wheel≥ 300kg/piece
Product Highlights
  • Telescopic grandstand platform with soft chair, rise mounted system.
  • Understructure made of welded angle bar with hot-galvanized surface.
  • Guardrails on two sides made of round bar, galvanized and powder coated.
  • High-quality steel platform with duralumin front edges.
  • Flexible operation: Motor-driven or manual options.
System Dimensions
System Mechanism
?
Frequently Asked Questions
What are the main advantages of the telescopic seating system?
The primary advantage is space-saving. It can be extended for events and retracted to clear the floor for other activities. It also offers high load capacity and low noise operation.
Can the chair colors be customized?
Yes, fabric colors are optional and can be selected from our standard color swatch to match your venue's aesthetic.
Is the system operated manually or automatically?
We offer both options. You can choose a manual operation system or a motorized system driven by electric engines (220V or 380V).
What is the load-bearing capacity of the steps?
The system is designed to handle a dynamic load of 300kg/m² on the step surfaces, and each bottom wheel can support ≥ 300kg.
Where can this seating system be installed?
It is ideal for auditoriums, theaters, cinemas, schools, stadiums, TV studios, and any multifunctional exhibition space.
How accurate is the positioning of the retractable system?
The system features a high location accuracy of ±30mm, ensuring safe and stable alignment every time it is deployed.
