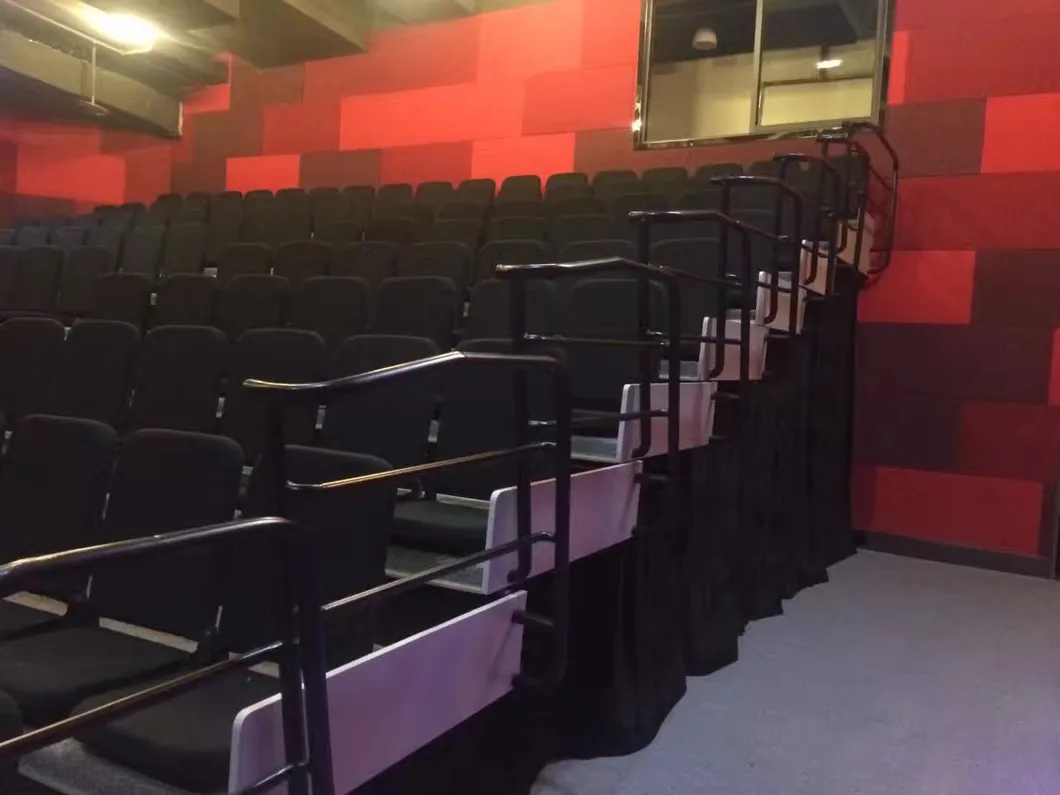

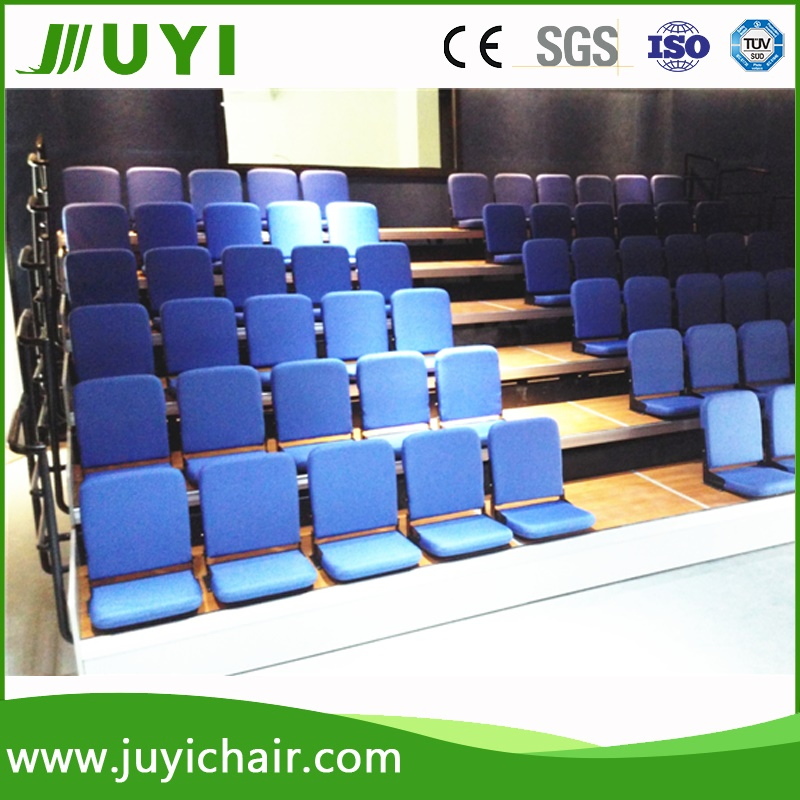

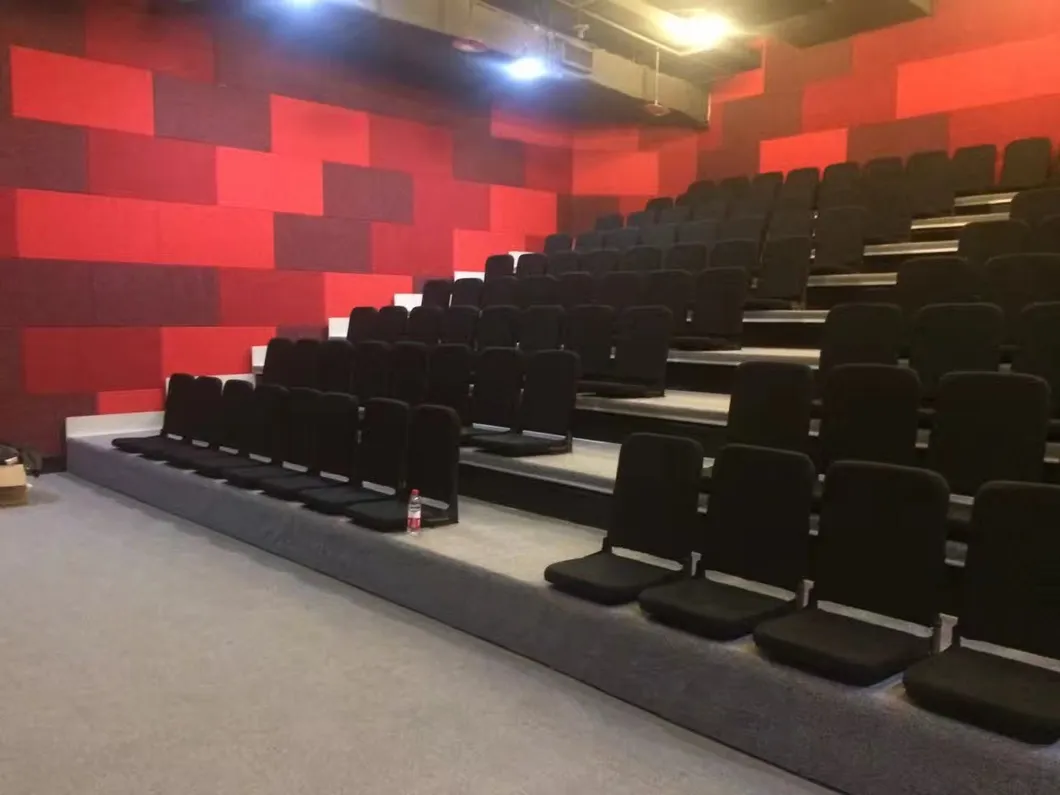

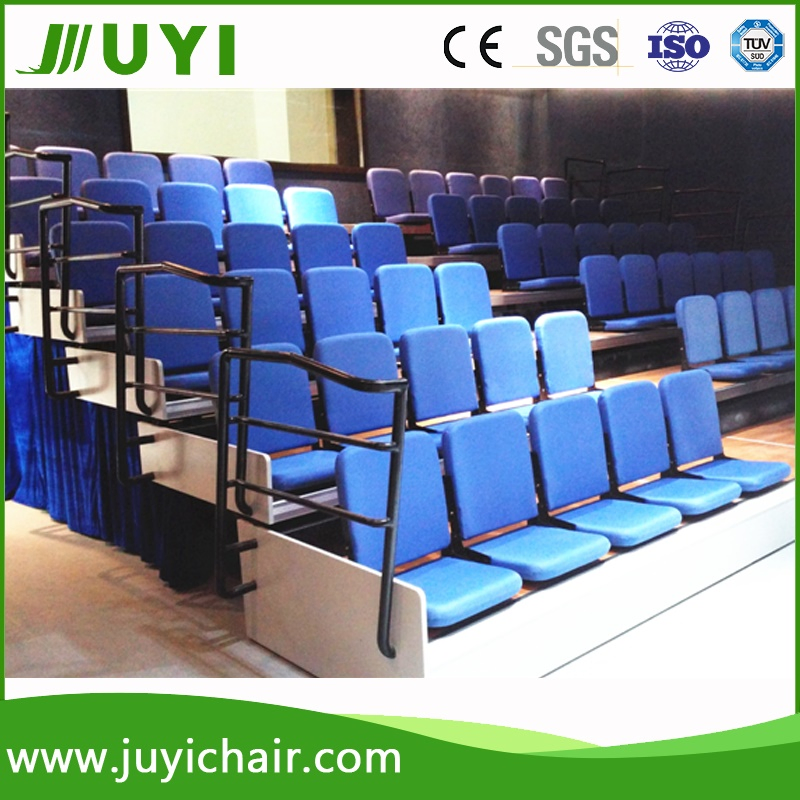

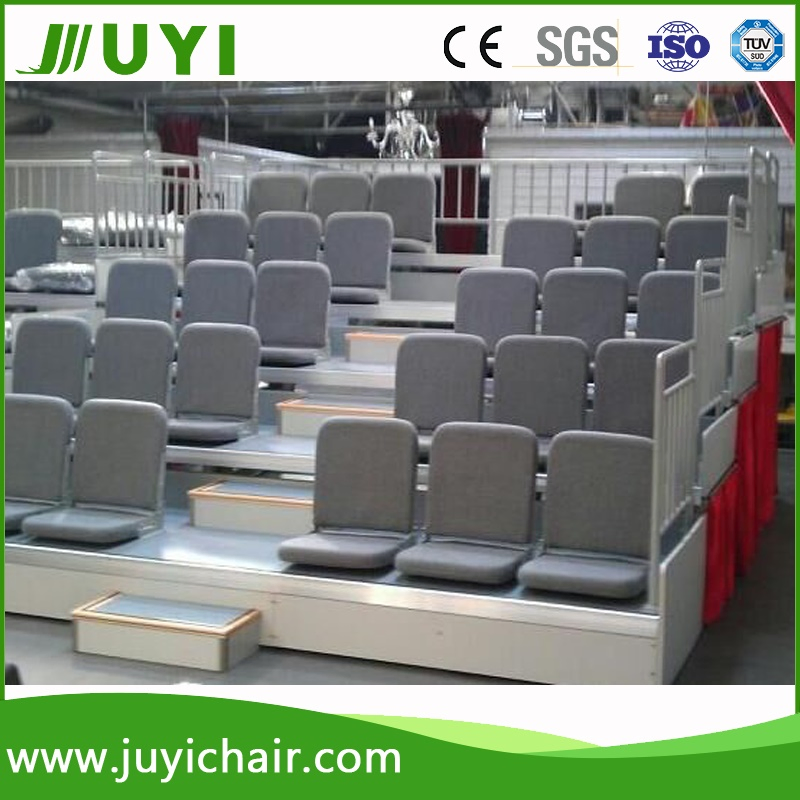

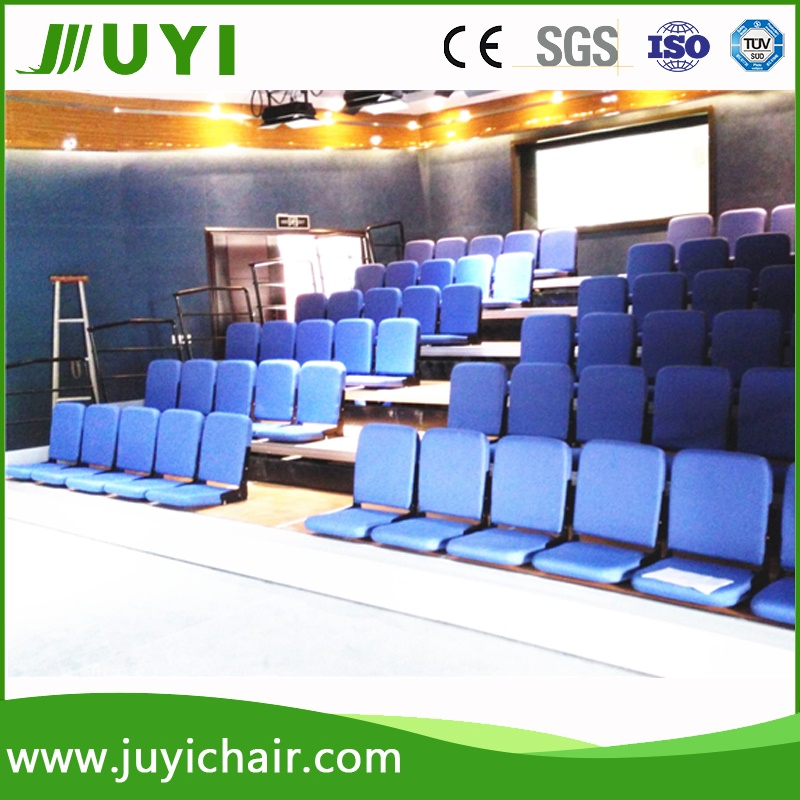

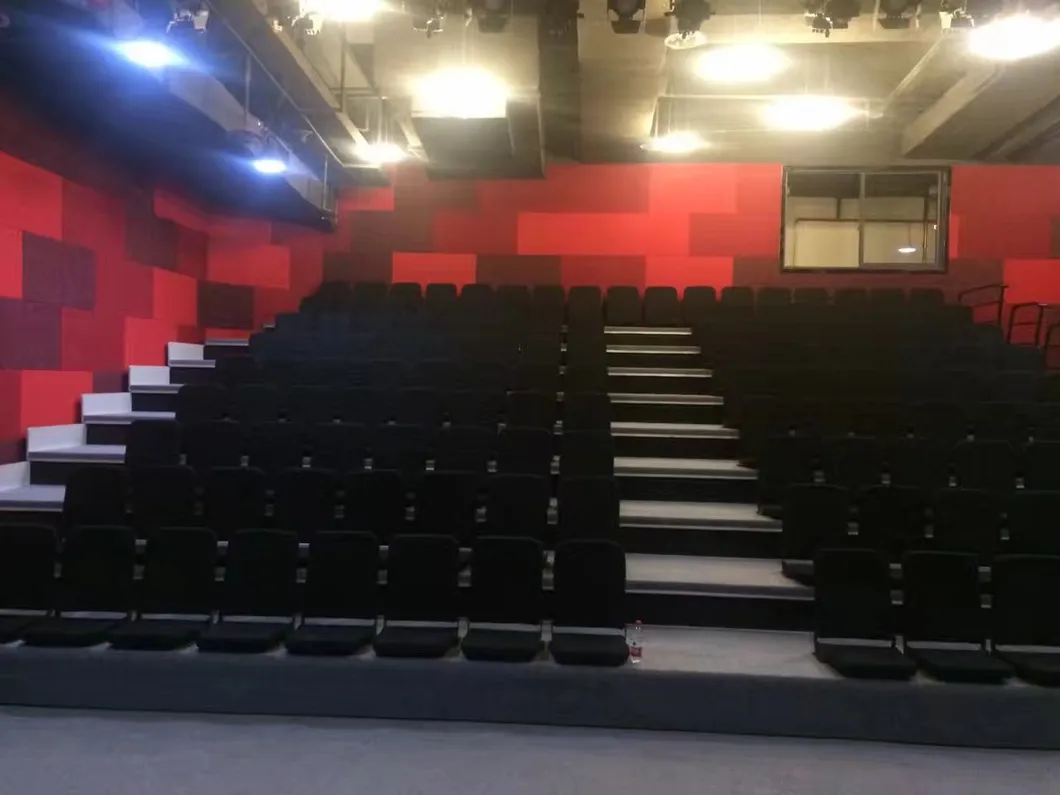

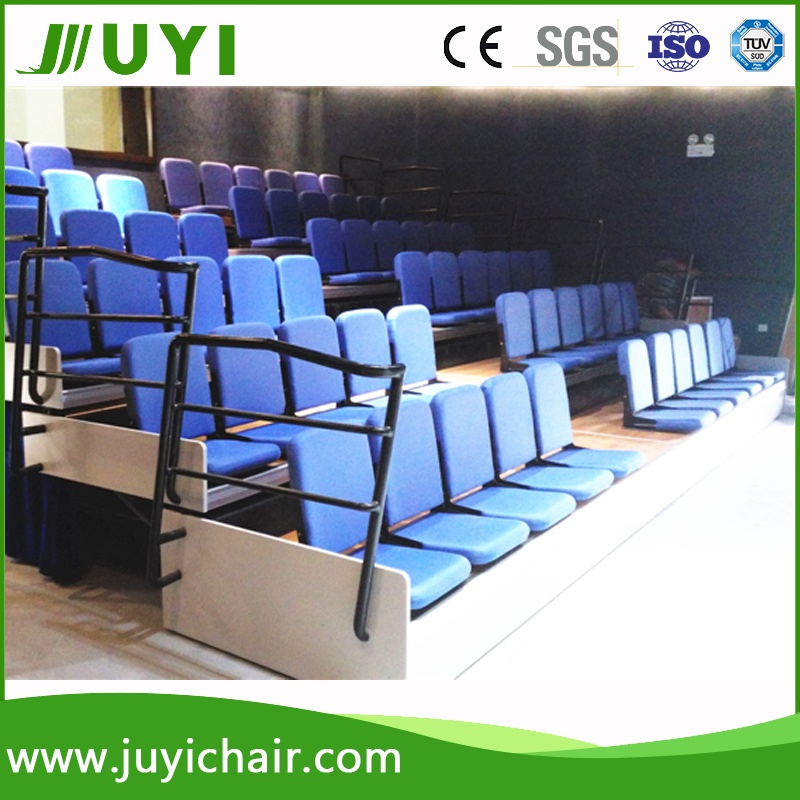

JY-768F Factory Soft Theater Tribune Telescopic Bleachers Auditorium Seating System Grandstand

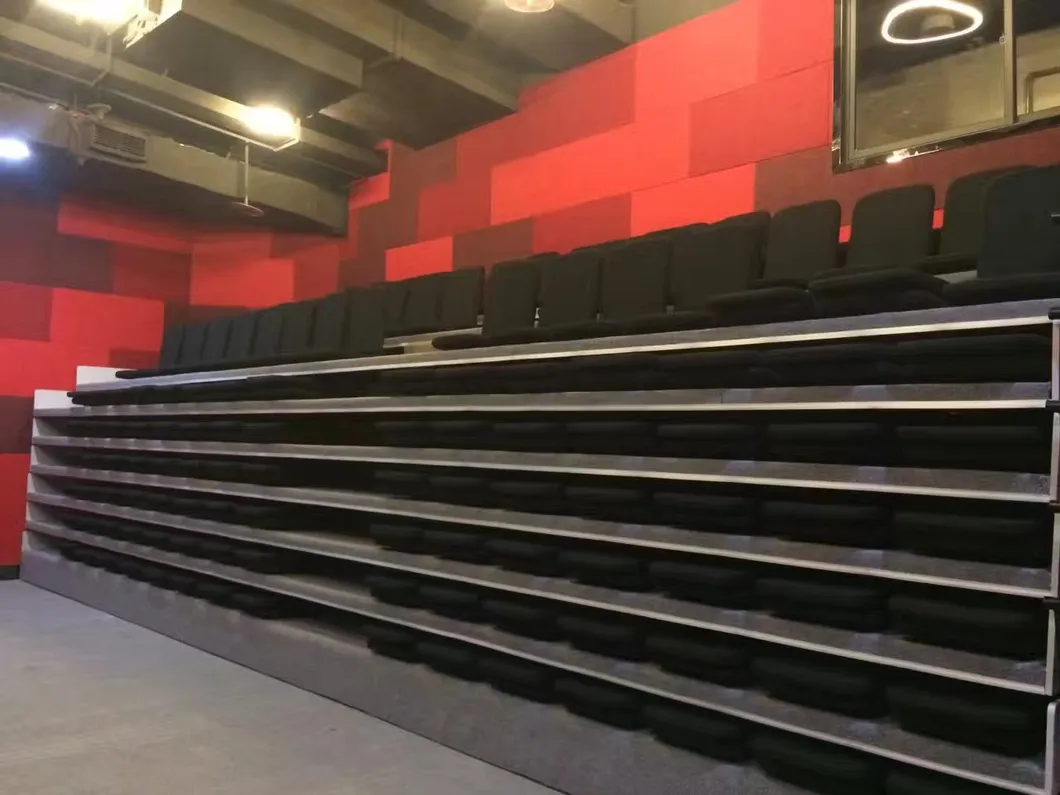

Telescopic seating system is widely used in variety spaces like stadiums, TV studios and all kinds of multifunctional places with its advantage in space saving. You can enjoy all events sitting on the comfortable telescopic stand when it's pulled and extended in a shape of steps. When it is closed, you can save a lot of spaces, and carry out other activities. Our telescopic stand is driven by manual and electric, with the great structure design, beautiful style, reliable safety measures and accurate locations. Easy operation, convenient maintenance, low noise are advantages of the telescopic seating system.

• Fabric or HDPE plastic chairs; Fabric chairs can be with back tablet.
• Powder coated metal steel leg frame.
• Solid wood painted armrest holder.
• Molded foam, metal acoustic panel, steel structure and spring in foam.
• Fully upholstery seating and backrest.
• Fabric colors is optional from color swatch.
• Center distance: 500mm or 550mm width arm to arm.

• Accordingly to grandstand dimensions, different types of steel profiles are used. It can be manual or motorized through electric engines working at 380V or 220V.
• The load distributor is a device specially created to reduce the concentrated load transmitted to the flooring system.
• A special spring system allows to the "unloaded" grandstand to "float" over the wheels.
• When the grandstand is "loaded" the springs are compressed and the load distributor start working resting over the floor.
• Traveling wheel shelf is made of 100mmx50mmx3mm rectangle tube (Q235A); Pillar is made of 3mm Cold-Roll Steel Sheets.

• Moving speed: 100mm/s
• Location Accuracy: ±30mm
• Driving Motor power: 0.37-1.1kw
• Power: AC 380V 50-60HZ (AC 220V 50-60HZ)
• Lateral Depth of the steps: 800-930mm; 1800-1850mm
• Allowed dynamic load in the step surface: 300kg/㎡
• Load of bottom wheel: ≥ 300kg/piece

• MOQ: 100 seats
• Delivery Time: 20-30 working days
• Payment Terms: T/T, L/C
