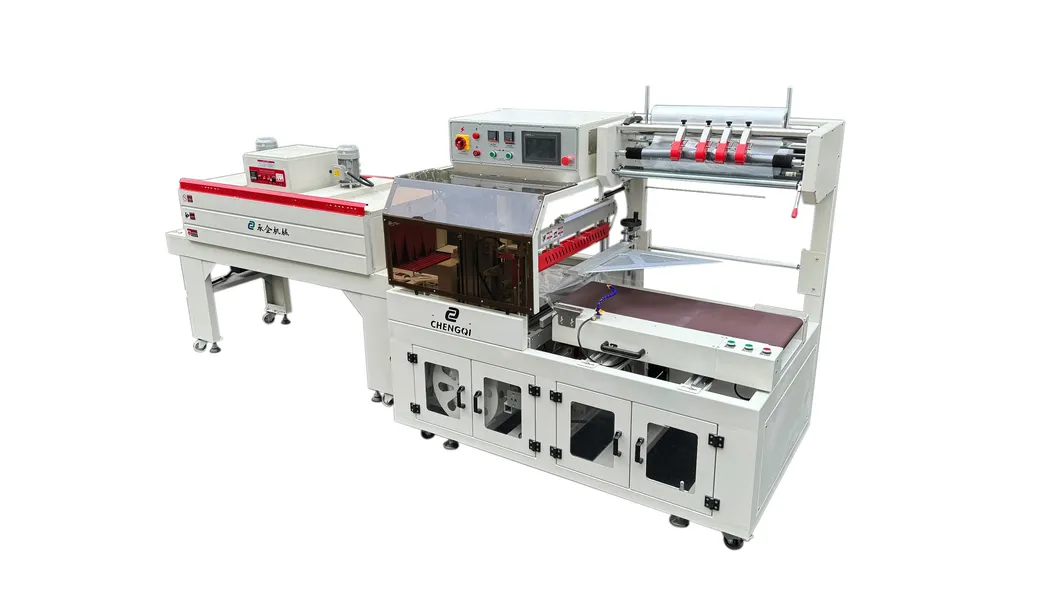

PVC Ceiling Profile Shrink Packaging System

Customization:	Available
After-sales Service:	Online
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.	ESD450G+BS4522N
Application	Food, Commodity, Machinery & Hardware, Textile, Alcohol, Toy, Chemical, Apparel, Gifts & Arts, Dining, Medical
Automatic Grade	Automatic
Driven Type	Pneumatic
Packing Speed	30~40PCS/Min
Heating Mode	Stainless Steel Heating
Transport Package	Standard Export Wooden Box

Product Description

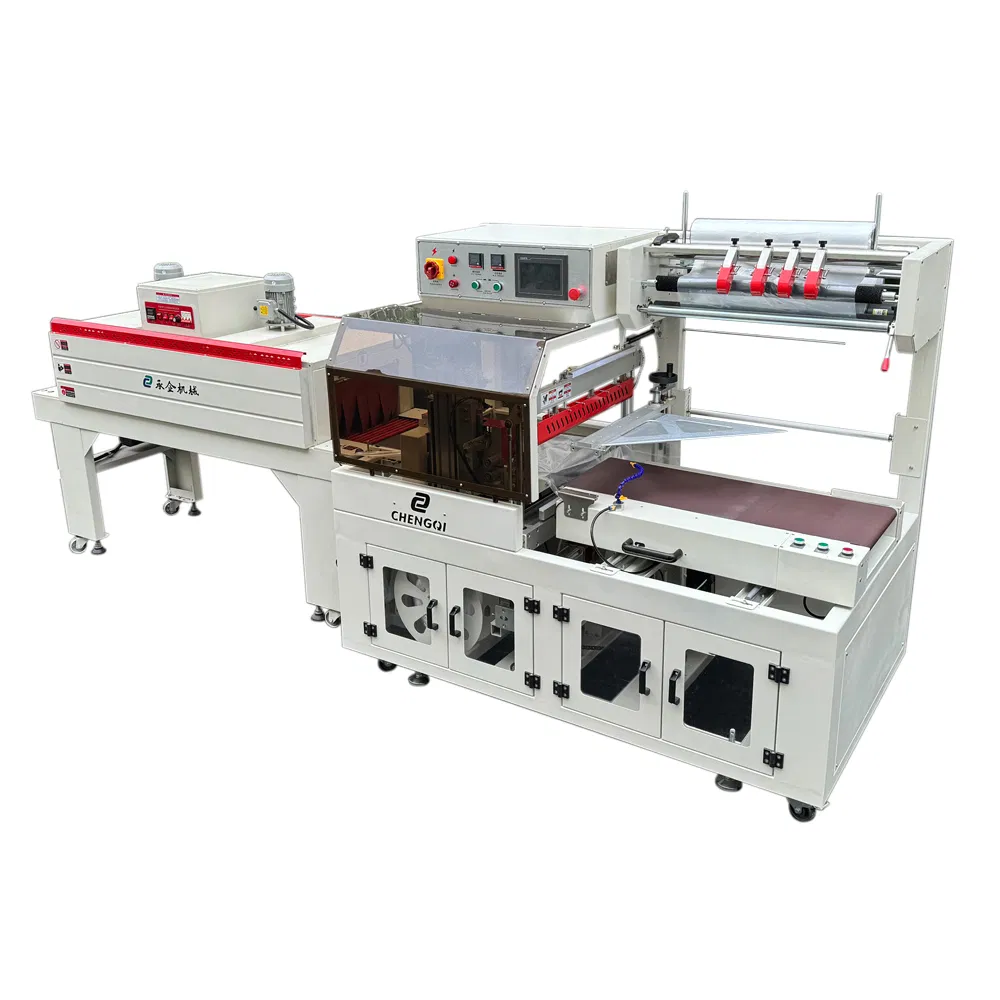

ESD450G is a fully automatic medium speed side sealing machine with automatic film feeding, punching, coating, and sealing.
The sealing part consists of horizontal and side sealing, both controlled independently for a perfect midline effect.
Horizontal sealing is driven by a servo motor, ensuring uniform strength and fast, stable cutting.
Manual adjustment film-guide system and feeding platform accommodate various product widths and heights.
Equipped with a Panasonic PLC programmable controller and a 7-inch user-friendly interface.
Digital temperature controller with built-in PID function for extremely accurate blade temperature.
Automatic protection function on sealing blades prevents accidental cutting.
Perfect for photo frames, flooring, aluminum profiles, and wood products.

Technical Parameters (ESD450G)

Power Supply	AC 220V 1PH 50/60Hz
Power	3KW
Max. Packing Size	(L)unlimited; (W+H)<430mm; (H)<180mm
Sealing Size	(W)570mm
Air Source	6kg/cm2
Film Material	POF
Machine Size	(L)1850×(W)1050×(H)1730mm
Weight (G./N.)	600/525KG

Technical Parameters (BS4522N)

Power Supply	AC 380V 3PH 50/60Hz
Power	12KW
Conveying Load	30KG
Conveyor Speed	1-10m/min
Tunnel Size	(L)1500×(W)450×(H)220mm
Machine Size	(L)1910×(W)700×(H)1320mm

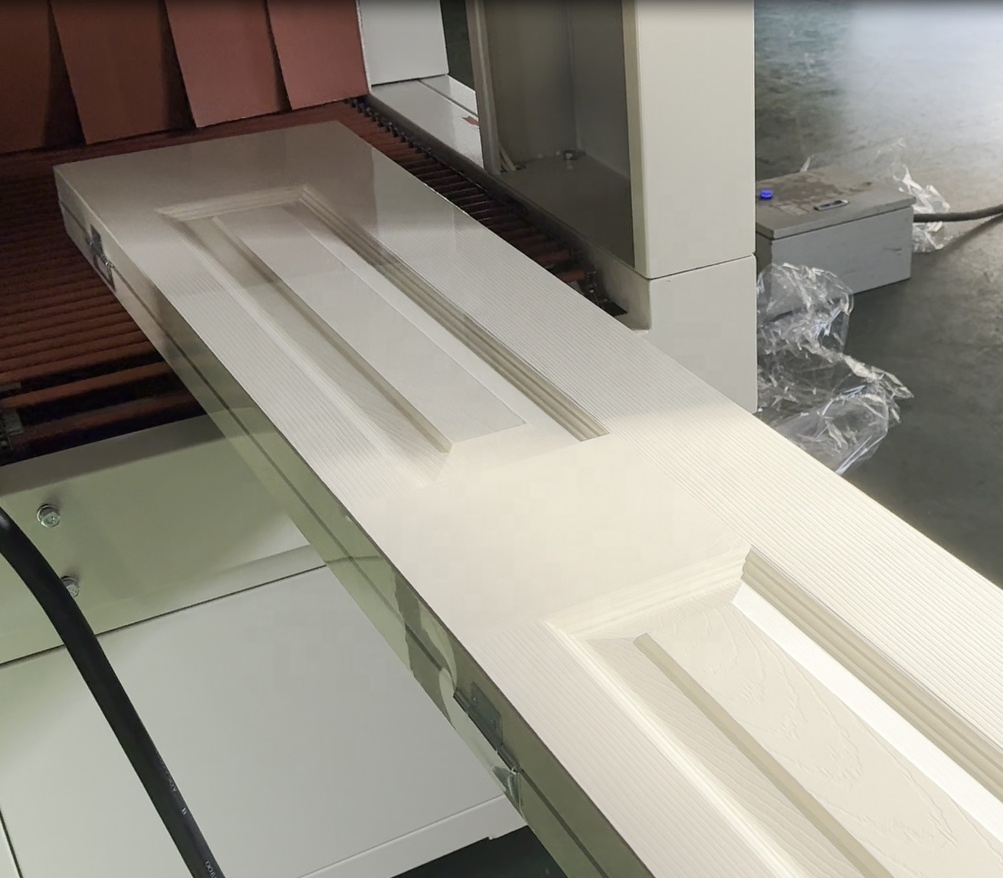

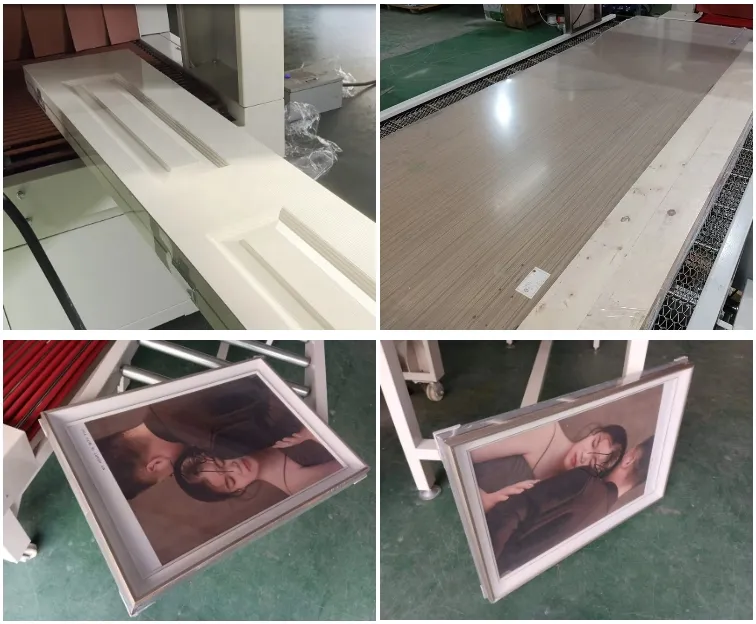

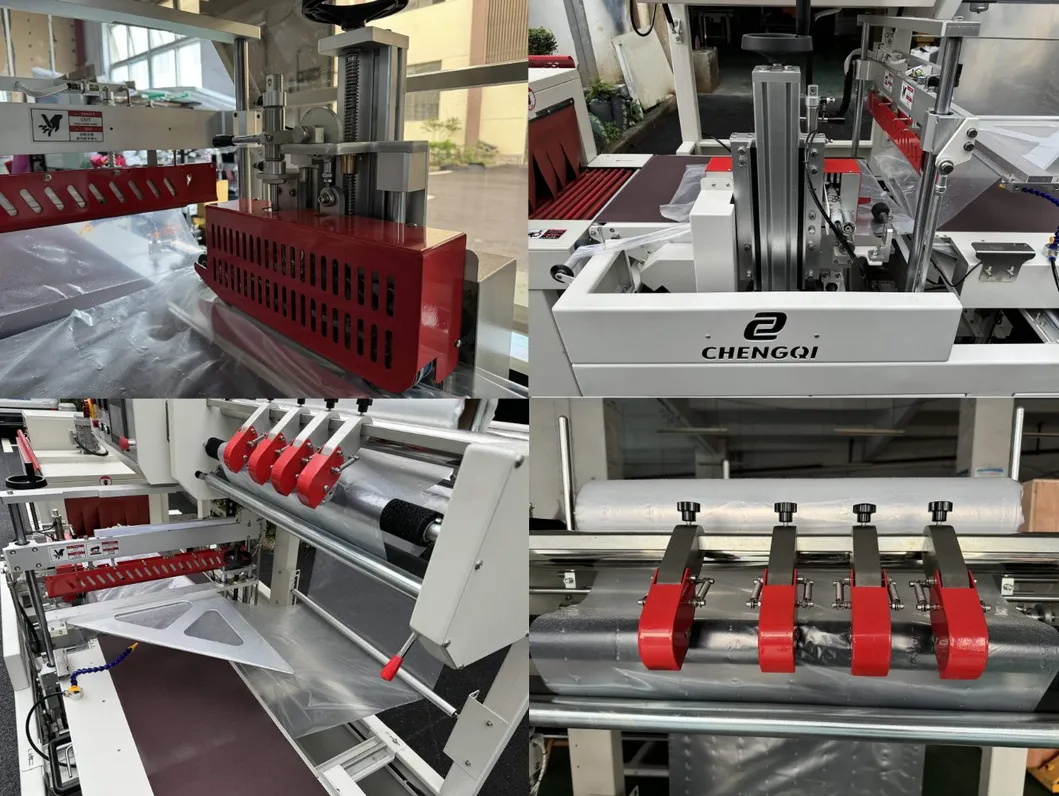

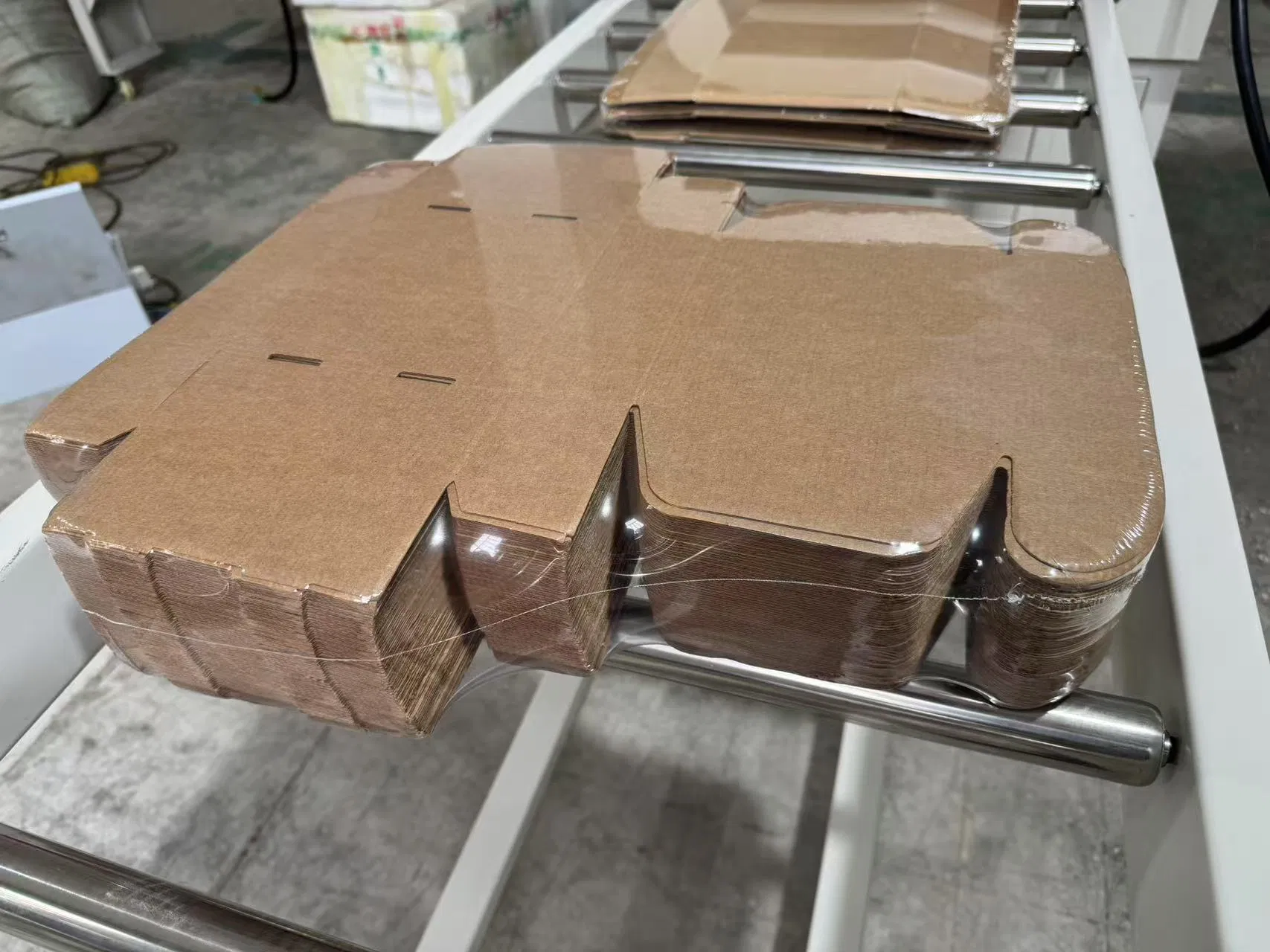

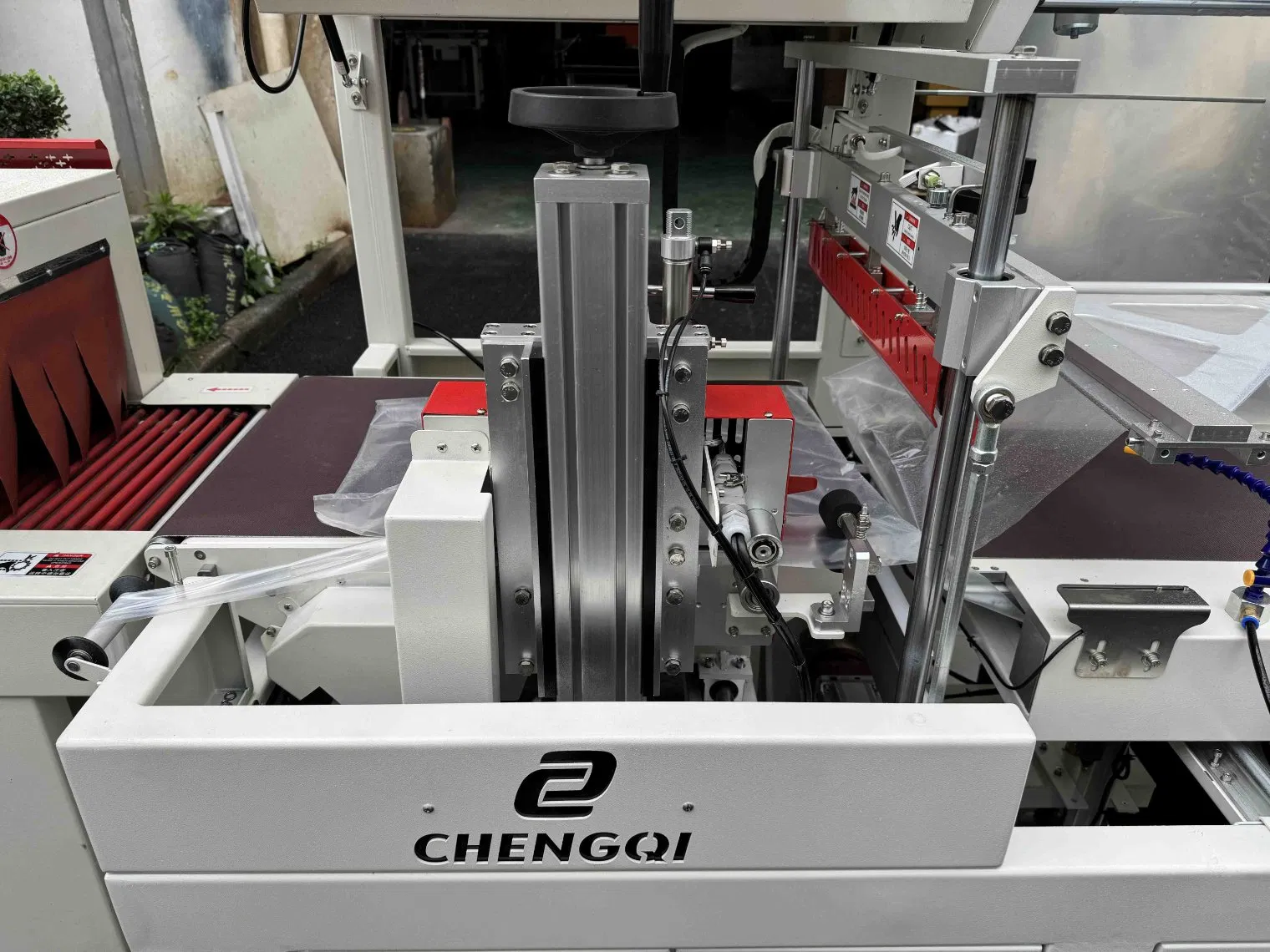

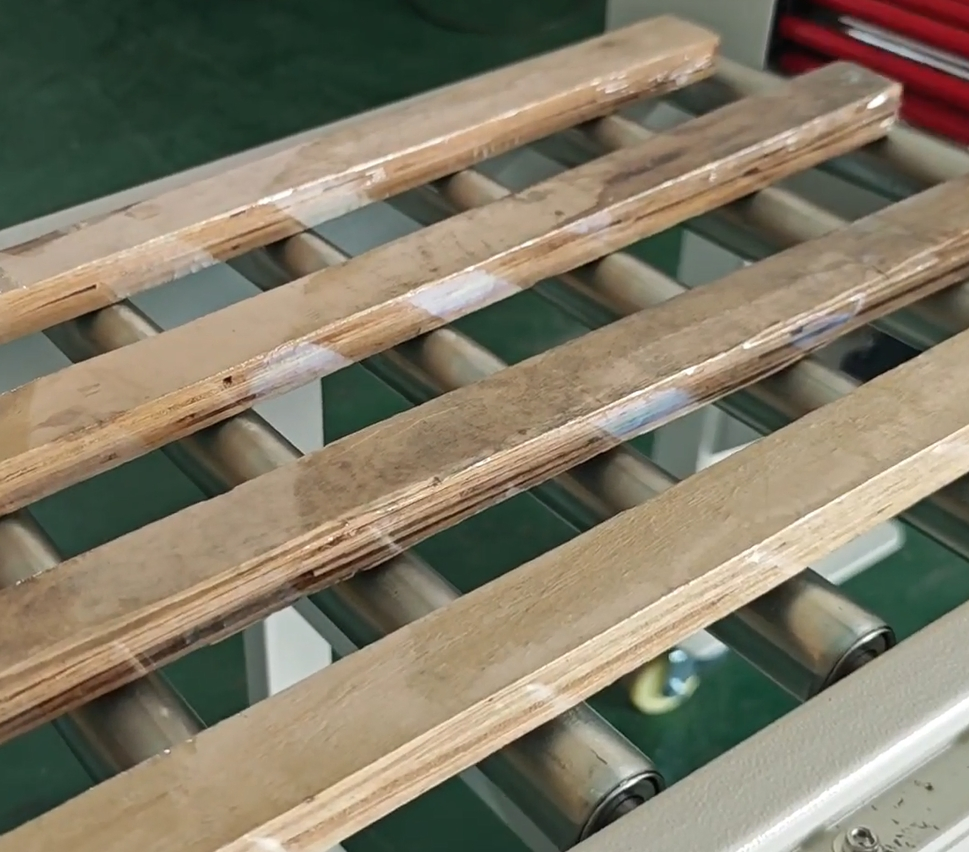

Packed Samples & Detailed Photos

Packaging & Shipping

Packaging Details: Standard Export Wooden Box

Delivery Detail: Common specifications are available in stock for immediate dispatch.

Our Service

Customization: We can customize the machine according to your specific requirements and product dimensions.
Warranty: One-year warranty provided. Spare parts (excluding wearing parts) are replaced for free within one year for non-man-made damage.
Lifelong Support: After the guarantee period, we offer lifelong spare parts at the most favorable prices.

Frequently Asked Questions

How do we test the machine before delivery?

Once manufacturing is complete, we will send a video of the machine in operation for your inspection. You are also welcome to visit our facility to test the equipment and receive operational training.

What information is needed for an accurate quote?

Please provide the type of product you plan to pack along with its dimensions (Length * Width * Height) and total weight. This allows us to recommend the most suitable configuration.

What materials are suitable for this shrink machine?

This machine is primarily designed for POF and PE heat shrinkable films, providing a clean, beautiful, and compact finish for long-distance transport.

Can the machine handle products of unlimited length?

Yes, the side sealing component allows for continuous film pulling and cutting, meaning the product length is virtually unlimited.

Is the sealing blade protected?

Absolutely. The sealing blade is equipped with an automatic protection function that effectively prevents accidental cutting or damage to the product during the process.

Is technical support available after the warranty?

Yes, we provide lifelong technical support and spare parts availability to ensure your production line continues to run smoothly after the one-year warranty period.
