Powerful Cooling Solution for Banquet Halls and Large Spaces

Customization:	Available
After-sales Service:	After Sales for One Year
Warranty:	6

Send Inquiry

Product Description

Basic Info.

Model NO.

DECENT91920

Type

Air Handling Unit

Air Tube Material

Galvanized Sheet

Corrosion Durability

Ultrahigh

Operating Voltage

380/400 VAC

Noise Level

Low

Application Fields

Mine

Mounting

Ceiling Mount

Lifetime

>20 years

Certification

RoHS

Filter Method

HEPA Filter

Unit Properties

Odor Treatment

Smart Function

Atomization Humidification

Design Method

Excellent Air Quality

Packaging & Delivery

Package Size

1200.00cm * 1100.00cm * 1100.00cm

Gross Weight

3000.000kg

Transport Package

Wooden Packing

Key Features

Modular design allows for free combination of indoor unit numbers and power to meet diverse requirements.

Equipped with energy-saving compressors for stable, quiet operation and maximum user comfort.

Intelligent control system supporting remote app management and timed switch functionality.

Advanced PM2.5 filters and negative ion technology for high-quality air purification.

Compact and aesthetically pleasing structure suitable for both high-end residential and commercial spaces.

Product Parameters

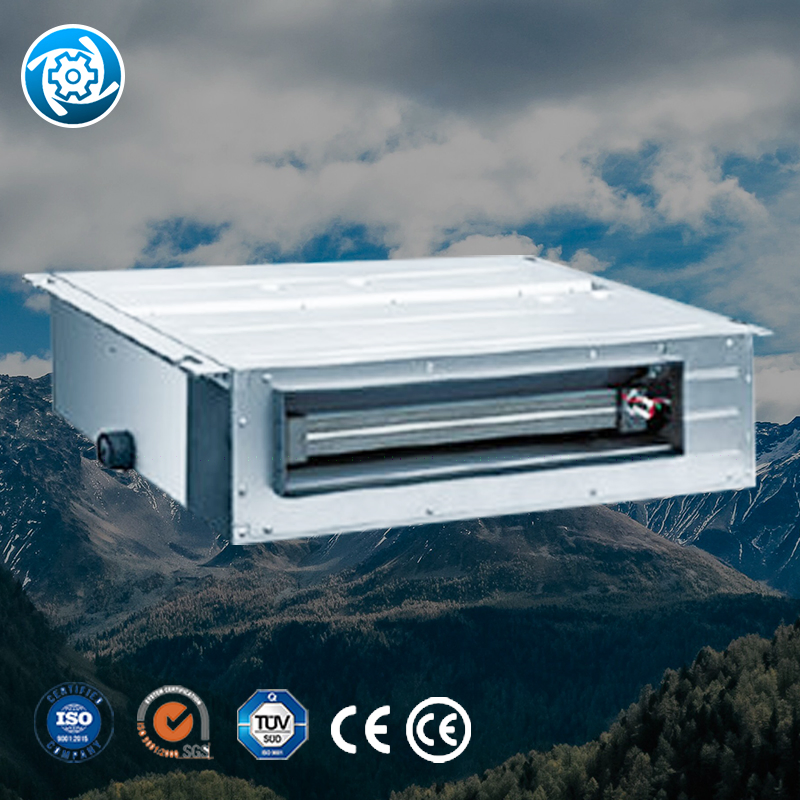

Indoor Unit Specifications (Free Static Pressure Duct Type):

Free Static Pressure Duct Type Indoor Unit
Model DMDN			022AEB	025AEB	028AEB	032AEB	036AEB	040AEB	045AEB	050AEB
Cooling Capacity (KW)		KW	2.2	2.5	2.8	3.2	3.6	4	4.5	5
Heating Capacity (KW)		KW	2.5	2.8	3.2	3.6	4	4.5	5	5.6
Power Supply		-	220V-50Hz
Dimensions (WDH)		mm	920450200						1140450200
Air Volume	High	m³/h	450	450	450	500	500	500	650	650

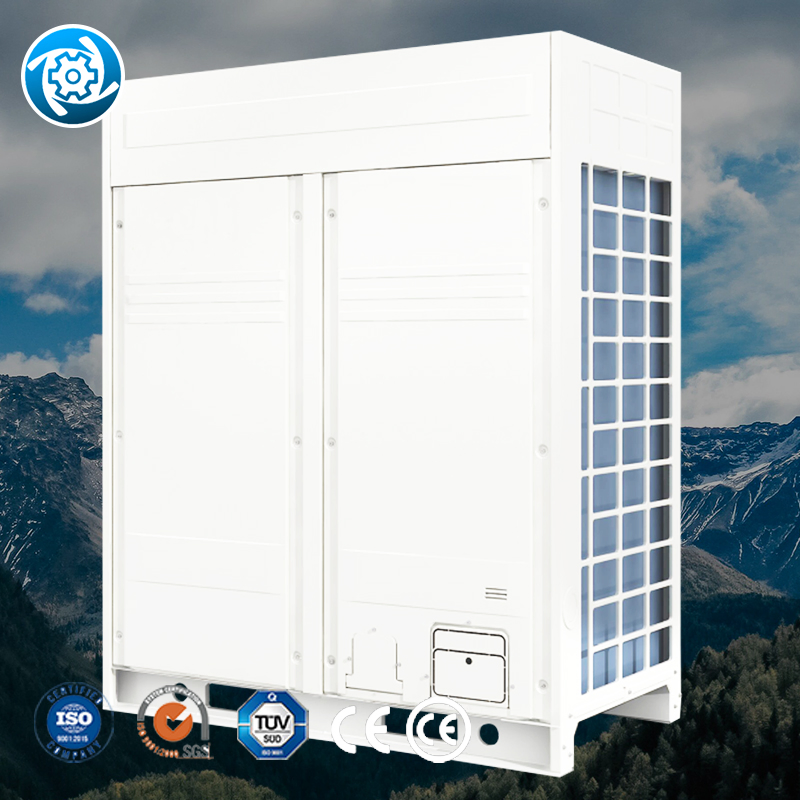

Modular Outdoor Unit Specifications:

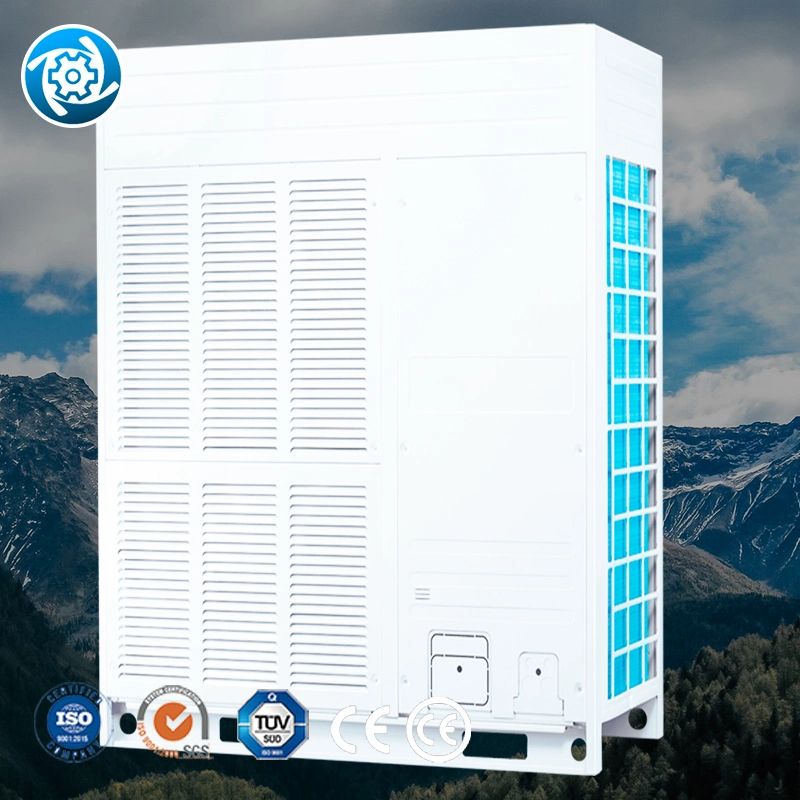

Modular Outdoor Unit
Model		DMMS660AXA	DMMS680AXA
HP		66	68
Cooling Capacity	KW	185.5	190
Operating Temp Range	ºC	Cooling: -5~56ºC / Heating: -30~26ºC
Refrigerant Type	/	R410A

Product Advantages

Detailed Description

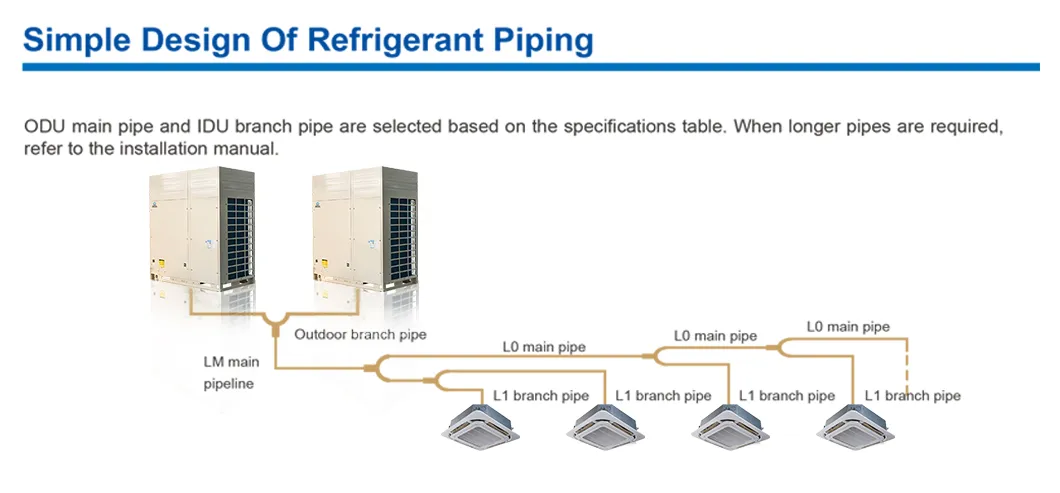

System Evolution: Since the 1970s, air conditioning has evolved from independent outdoor units for every indoor unit to modern basic multi-connected systems where one powerful outdoor unit serves multiple indoor zones with independent control.

Standard Multi-connection Solution: Perfect for residential or office use, featuring one outdoor unit and up to eight indoor units. This setup utilizes frequency conversion technology for optimal energy efficiency and consistent climate control.

Application Scenarios

Frequently Asked Questions

What is the advantage of a multi-split modular design?

It provides flexibility to combine multiple indoor units with a single outdoor unit, saving space and allowing customized climate control for different rooms.

How does the air purification system work?

The system utilizes HEPA PM2.5 filters and negative ion technology to remove fine particles and odors, ensuring high-quality indoor air.

Can the system operate in extreme temperatures?

Yes, the units are designed to operate efficiently in cooling mode from -5ºC to 56ºC and in heating mode from -30ºC to 26ºC.

Is the system compatible with smart home controls?

Yes, it features an intelligent control system that supports remote operation via mobile apps and programmable timers.

What is the estimated lifespan of the equipment?

With proper maintenance, the unit is designed for long-term durability with a service life exceeding 20 years.

What kind of maintenance is required for the filters?

The unit features a detachable and washable filter screen, making it easy to maintain optimal airflow and hygiene.
