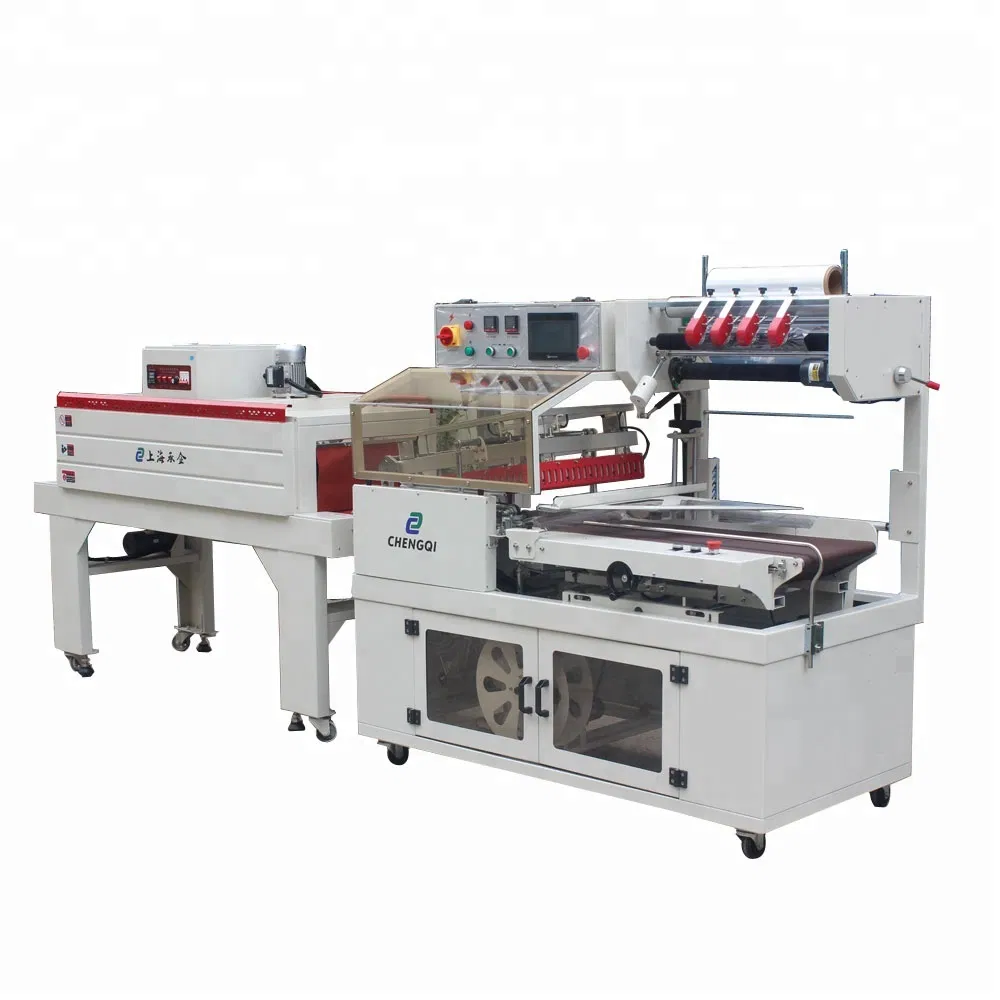

Chengqi CE Approved Shrink Packaging System

Customization:	Available
After-sales Service:	Online
Warranty:	One Year

📋

Basic Specifications

Model NO.

FQL450S+BS4522N

Application

Food, Commodity, Machinery, Textile, Medical, etc.

Packaging

Film

Automatic Grade

Automatic

Driven Type

Pneumatic

Manner of Packing

Full Closed

Adjust Speed

Electronic Speed Control

Type

POF Shrink Film Machine

Heating Mode

Stainless Steel Heating

Packaging Material

Plastic

HS Code

8422309090

Production Capacity

50 sets/Month

🚀

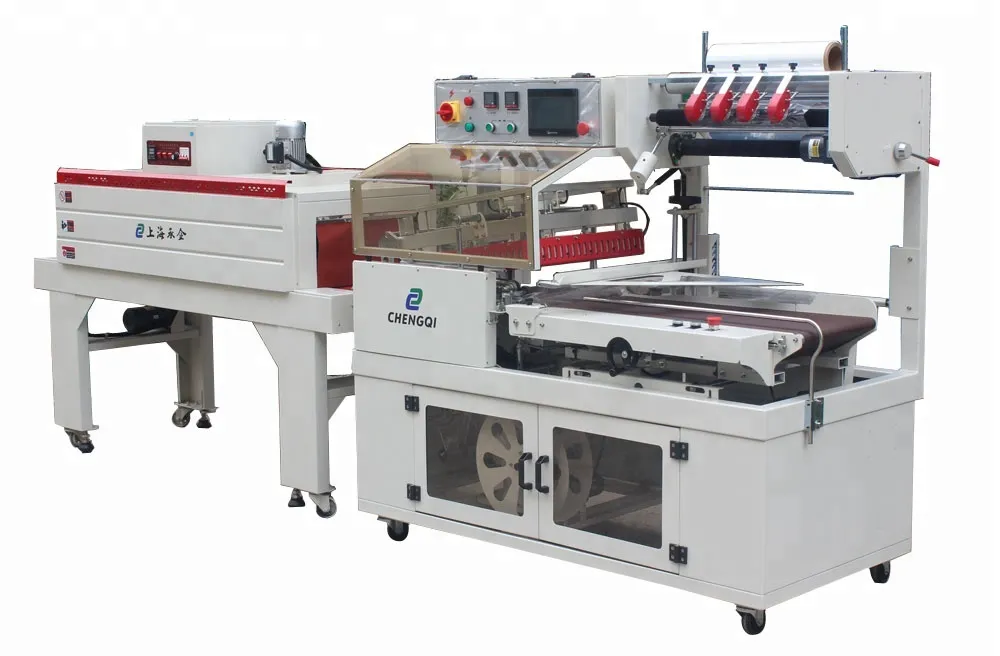

CE Approved Shrink Packaging System

⚙️

Performance Features

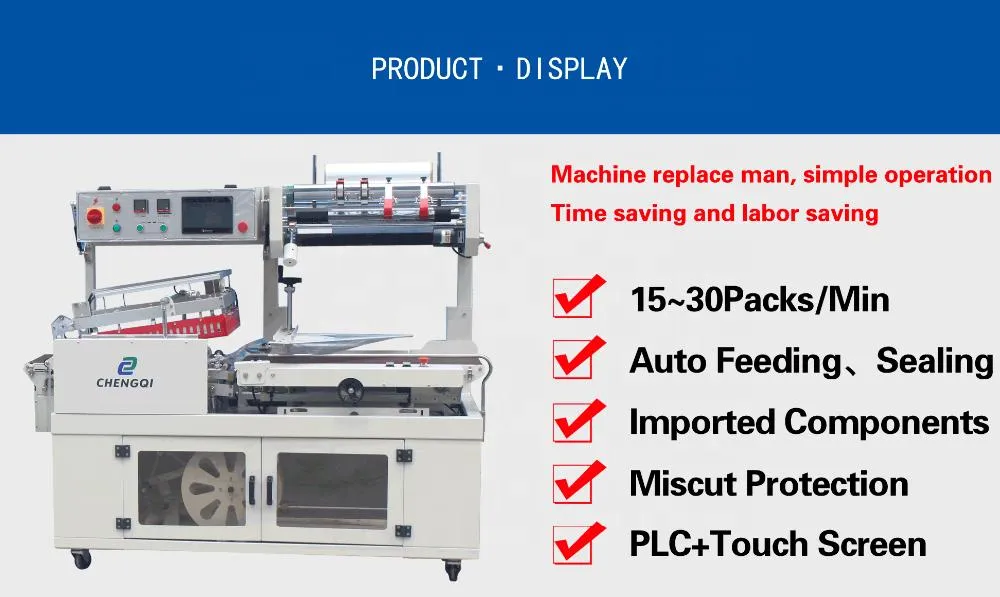

FQL450S is a fully automatic L-bar sealer used in mass production packaging lines with high efficiency.

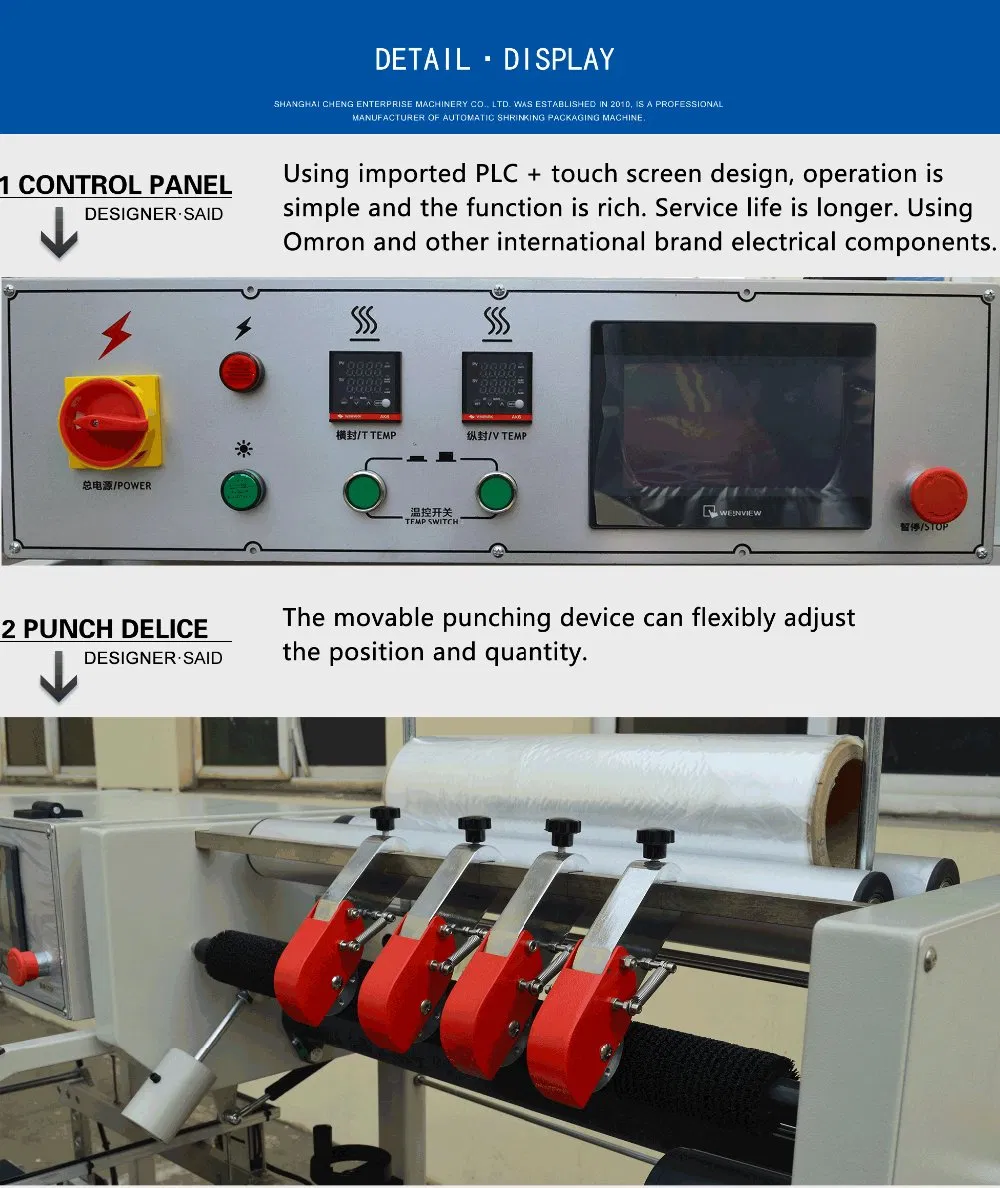

Movable type punching device allows switching positions and controlling pinhole numbers.

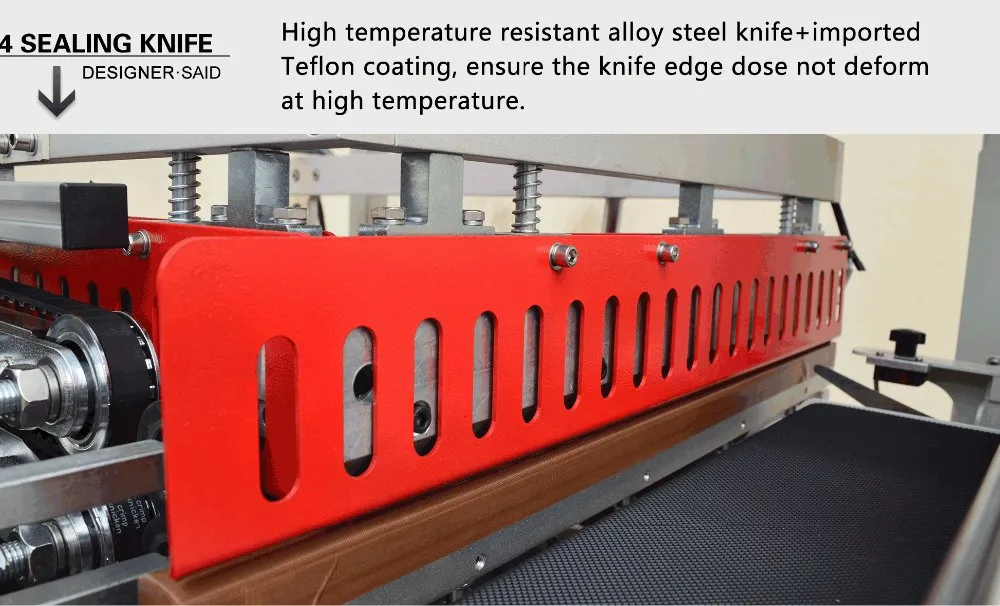

Sealing knife uses special steel with Daikin Teflon anti-stick coating for zero-pollution sealing.
Digital temperature controller with built-in PID function for accurate sensitivity.
Imported photoelectric sensor ensures fast response and positioning accuracy.
Equipped with Panasonic PLC and WEINVIEW 7-inch man-machine interface for simple operation.
Automatic scrap recycling mechanism and built-in film broken alarm function.
BS4522N shrink tunnel features internal double recycling air fans for constant temperature.
Stainless steel finned heating tubes ensure high heating efficiency and long life.
Compatible with POF, PVC, PP, and PET heat shrinkable films.

📊

Technical Parameters

L-Bar Sealer (FQL-450S)

Power supply	220V 1/3ph 50/60Hz
Power	1.8KW
Packing Size	(L+H)<550mm (W+H)<400mm (H)<130mm
Sealing Size	(L)550×(W)450mm
Packaging speed	15~30pcs/min (Depending on product size)
Air source	6kg/cm2

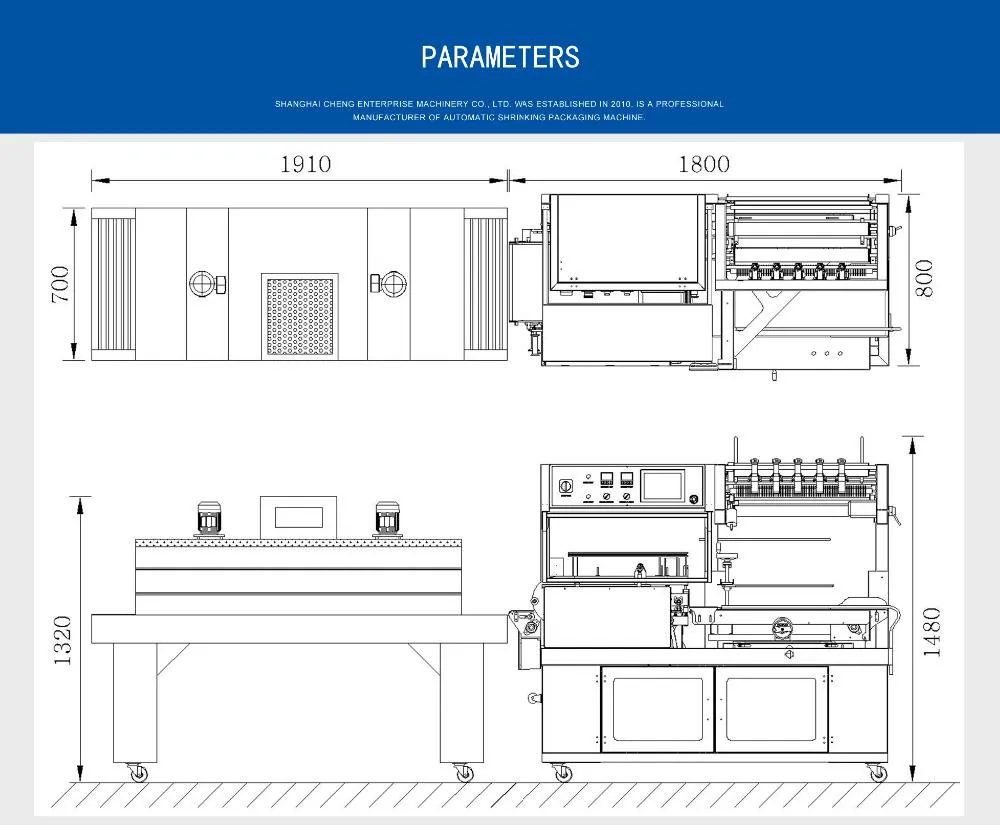

Overall dimension	(L)1800×(W)800×(H)1480mm

Heat Shrink Tunnel (BS4522N)

Power supply	380V 3ph 50/60 Hz
Power	12KW
Conveyor load	30KG
Conveyor speed	1-15m/min
Tunnel size	1500×450×220mm
Overall dimension	1910×700×1320mm
G./N. weight	250/200Kg

📸

Detailed Images

🏭

Application Range

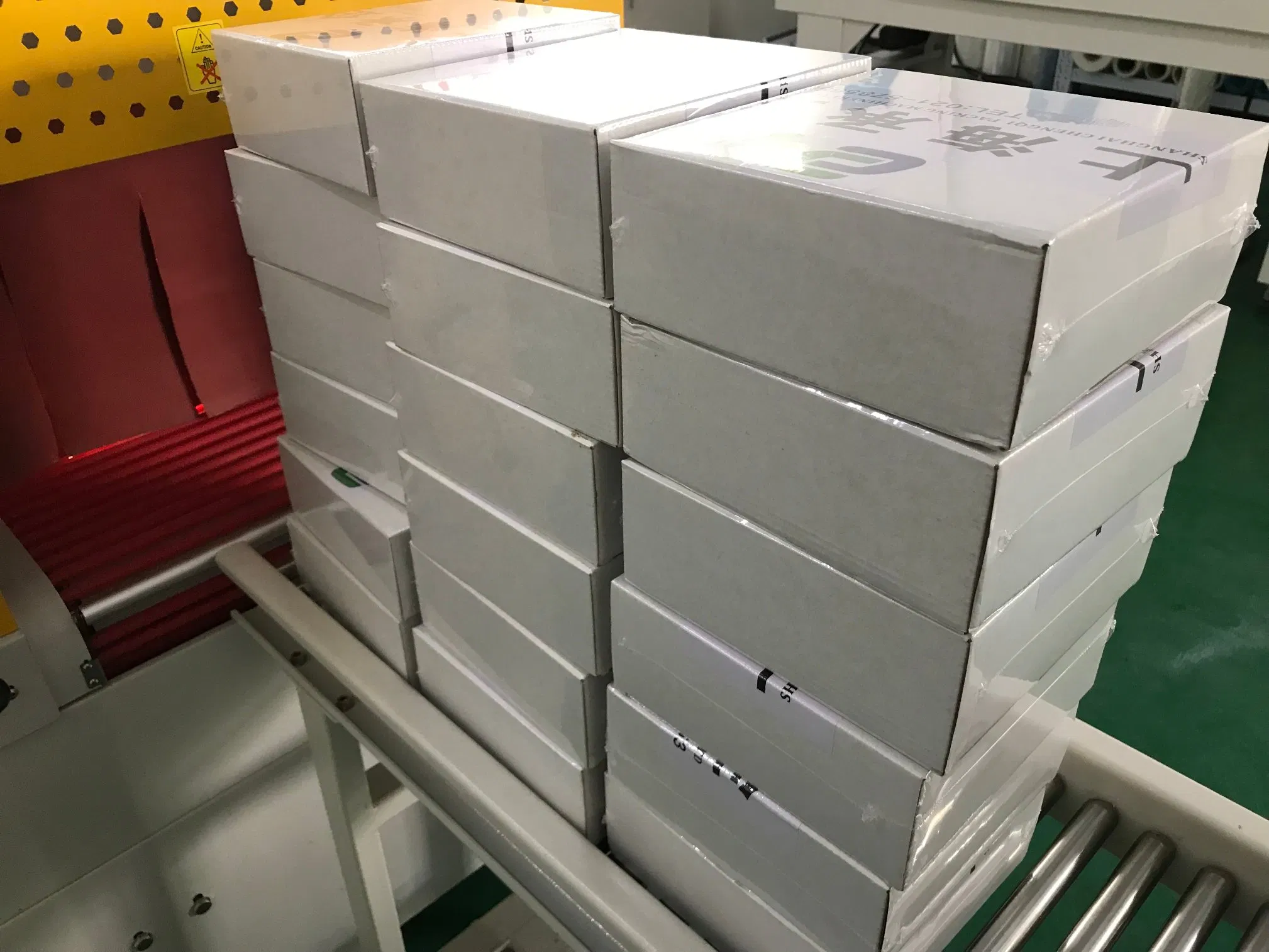

Applies to software, food, cosmetics, printing, pharmaceutical, flooring, ceramic, beverages, hardware and other industries requiring large quantities of shrink wrap.

🛠️

Our Service & Quality

Customization: We can customize machines according to your specific requirements and products.
Warranty: One-year warranty with free spare parts replacement for non-man-made damage.
Lifelong Support: Post-warranty spare parts offered at favorable prices for the lifetime of the machine.

📦

Packing & Delivery

Packaging Details: Standard Export Wooden Box

Delivery Detail: Common specifications are available in stock for rapid dispatch.

❓

Frequently Asked Questions

How do we test your machine before delivery?

When the machine is complete, we will send a testing video for your inspection. You are also welcome to visit our factory to test and learn the operation in person.

What information is needed for an accurate quote?

Please provide the type of product you plan to pack along with its dimensions (Length*Width*Height) and weight.

Is the machine compatible with different shrink films?

Yes, the system is suitable for POF, PVC, PP, and PET heat shrinkable films.

Can the sealing blade handle high-speed operation?

The sealing blade uses special steel with Daikin Teflon coating, which is anti-stick and resistant to high temperatures, ensuring stable mass production.

What is the delivery time for standard models?

Common specifications are typically available in stock. For customized requirements, please consult with our team for a specific timeline.

Do you provide technical support after the warranty?

Yes, we offer lifelong technical support and provide spare parts at the most favorable prices after the one-year warranty expires.
