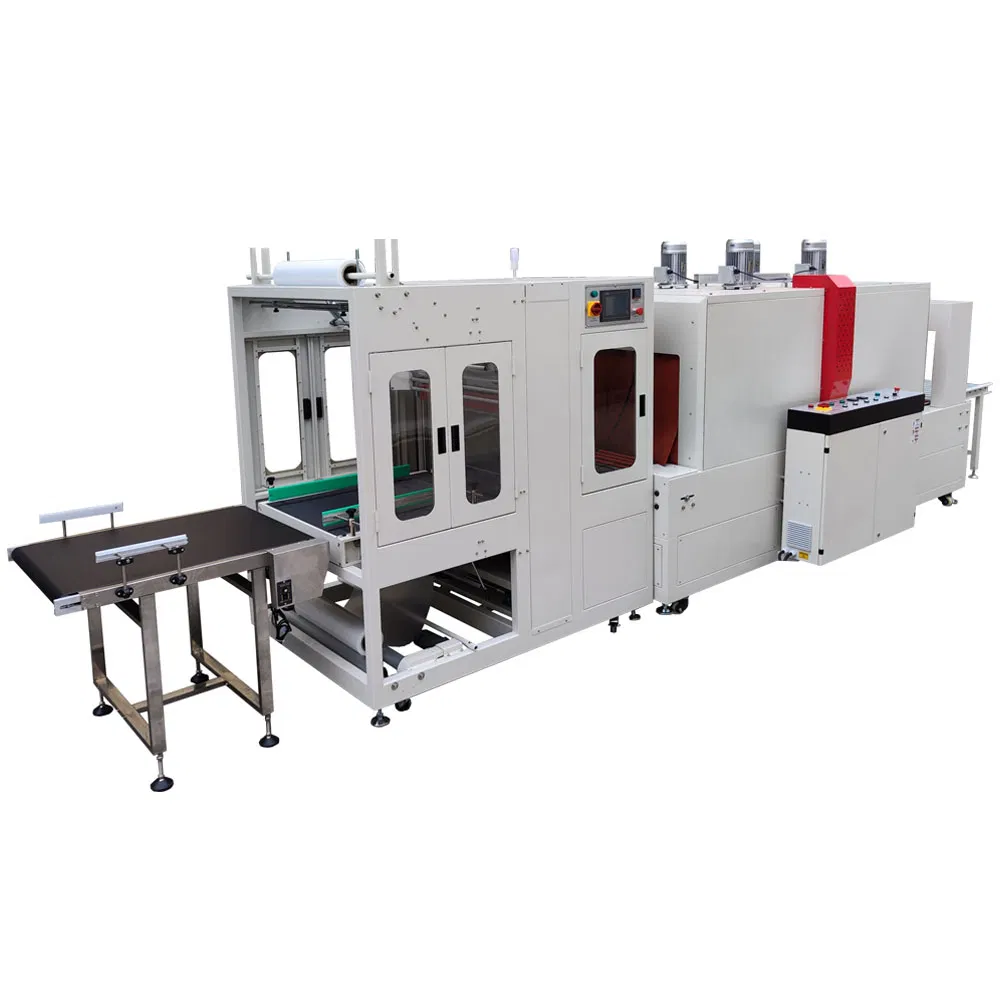

Automatic Sleeve Type Sealing Shrink Packing System

1 / 5

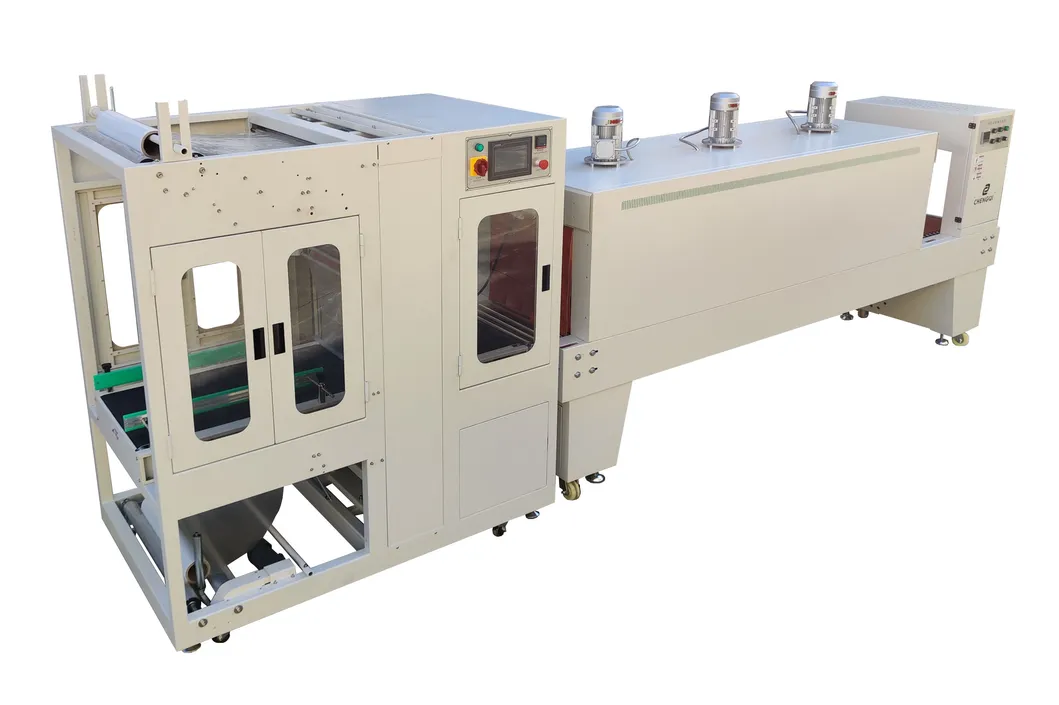

Automatic Sleeve Type Sealing Shrink Packing System

Customization:	Available
After-sales Service:	Online
Warranty:	One Year

Send Inquiry

Product Description

Basic Information

Model NO.

TF7040G+BS6040PE

Application

Food, Commodity, Machinery, Textile, Medical, etc.

Automatic Grade

Automatic

Driven Type

Pneumatic

Type

PE Shrink Film Machine

Heating Mode

Stainless Steel Heating

Packaging

Cartons / Film

Capacity

50 sets/Month

Product Description

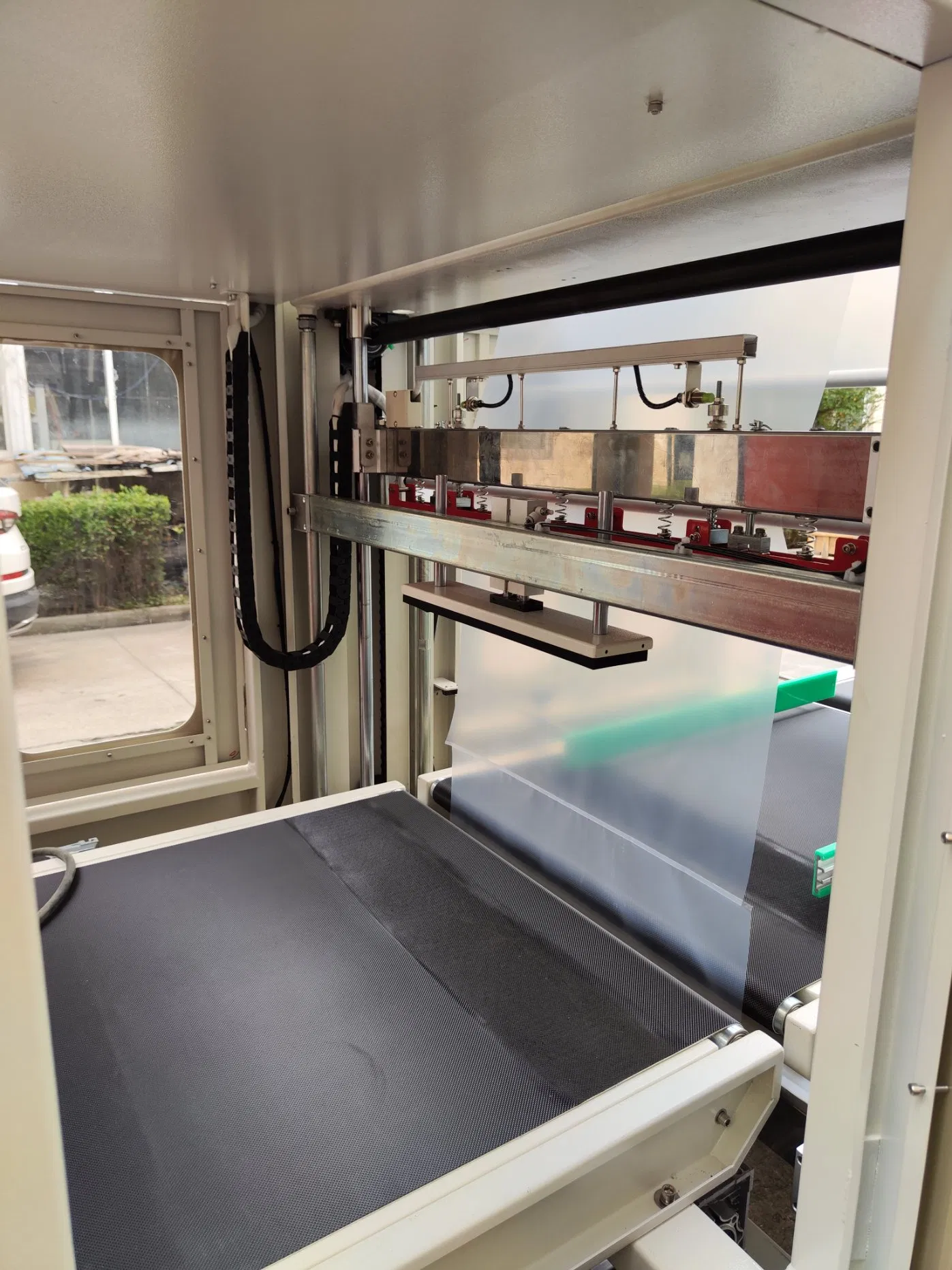

✓Servo motor drives the sealing cutter; no air source needed, reducing noise and costs.

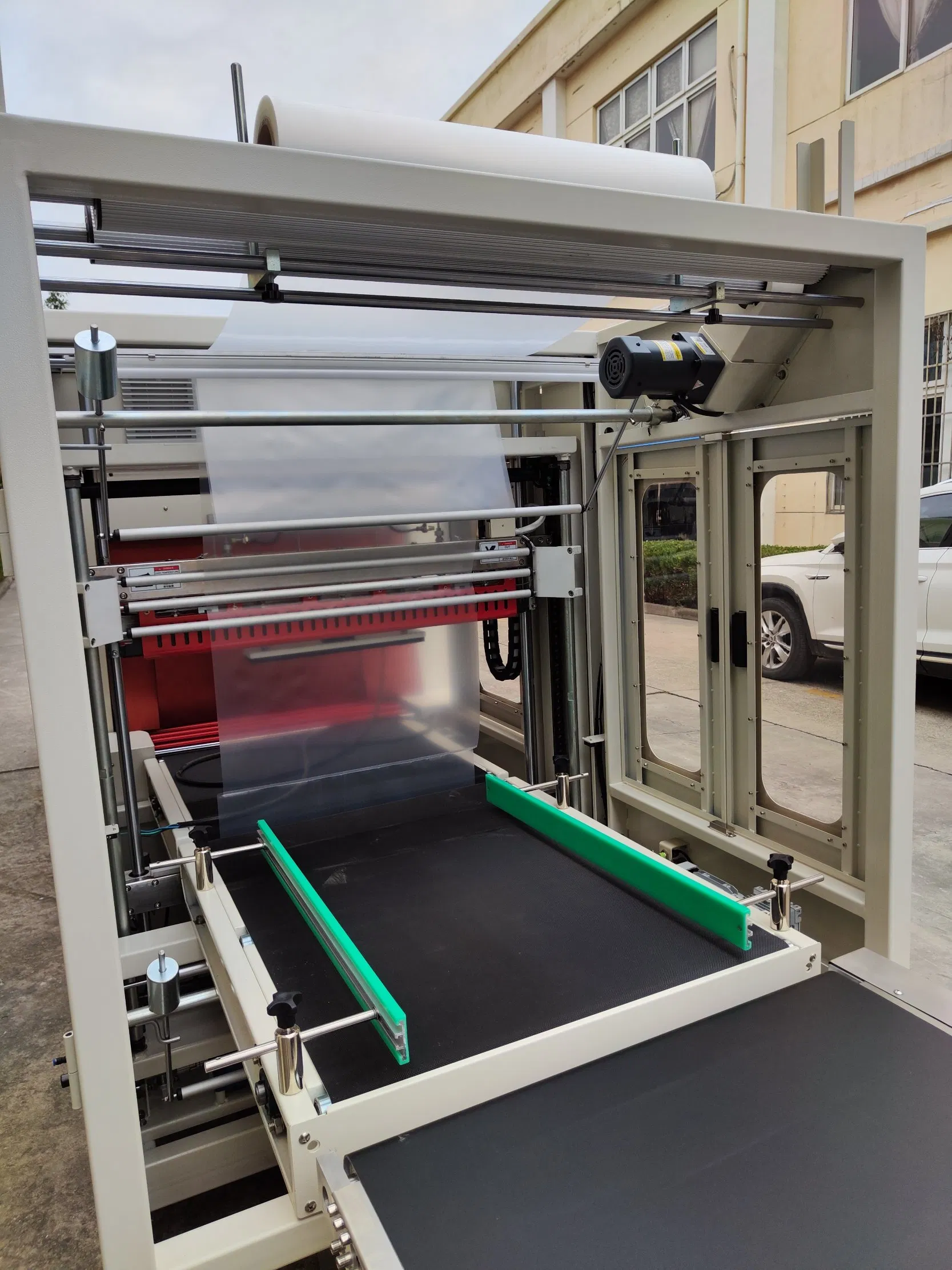

✓TF7040G features a fully automatic straight-in and straight-out design, ideal for cartons or large items.

✓High efficiency packaging reaching 15~25 bags per minute.

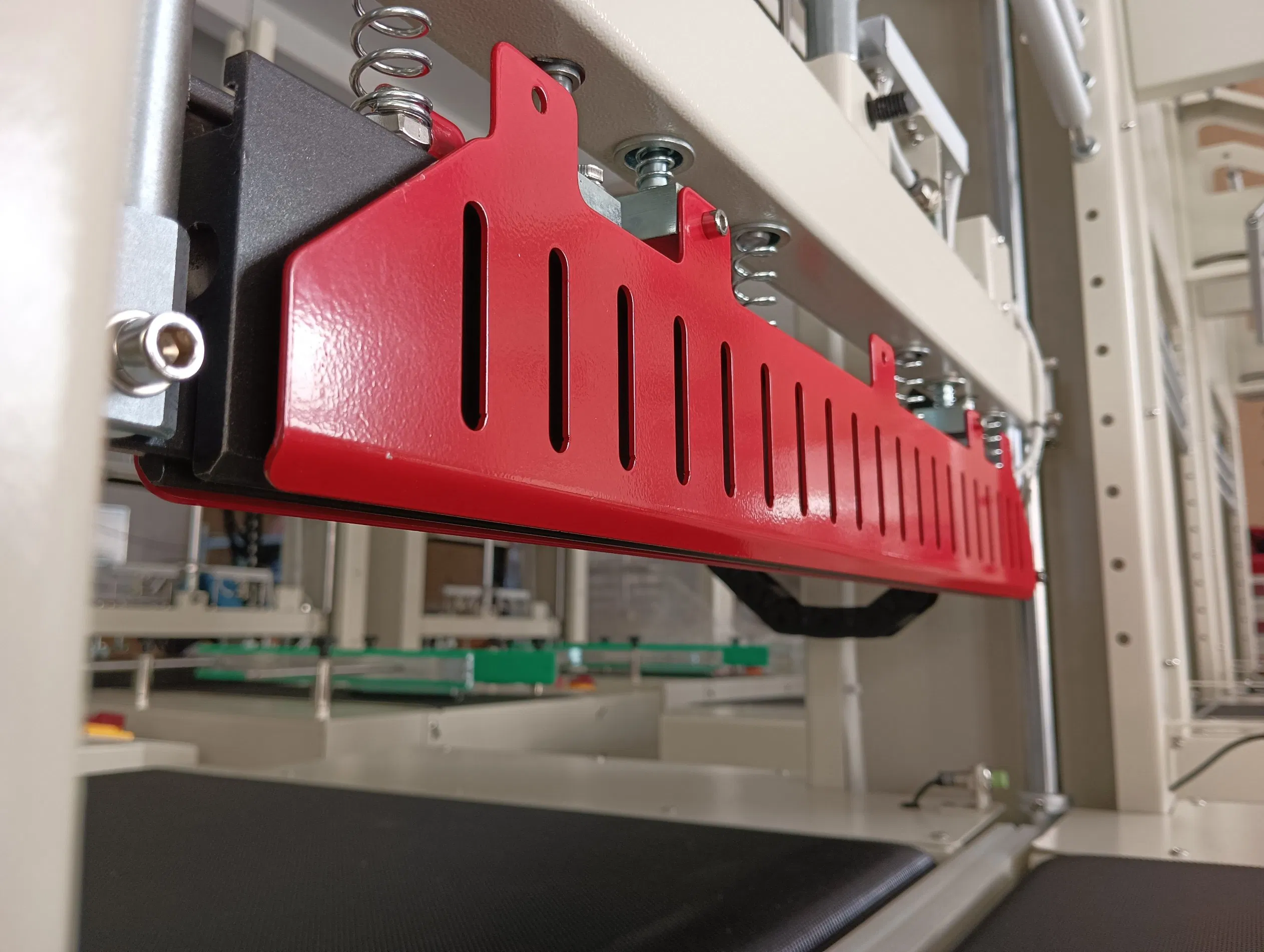

✓Sealing knife uses special steel with anti-stick coating for high-temperature resistance without smoking or cracking.

✓Equipped with Panasonic PLC and 7-inch man-machine interface for simple operation.

✓Automatic and manual modes can be switched easily for film replacement.

✓BS6040PE tunnel utilizes hot air circulation for even and constant temperatures.

✓Solid steel chain conveyor covered with durable imported silicone tubes.

Technical Parameters

Model: TF7040G (Sealer)
Power Supply	220/380V 3PH 50/60Hz
Power	2.5KW
Max. Packing Size	(W)≤500mm; (H)≤380mm
Sealing Size	(W)700mm
Packing Speed	15~25 packs/min
Machine Size	L1700×W1000×H2000mm
G./N. Weight	600/530Kg

Model: BS6040PE (Shrink Tunnel)
Power Supply	220/380V 3PH 50/60Hz
Power	32KW
Tunnel Size	L2500×W600×H400mm
Conveyor Speed	0-15m/min
Conveying Load	40KG
Machine Size	L3500×W850×H1650mm
G./N. Weight	750/650Kg

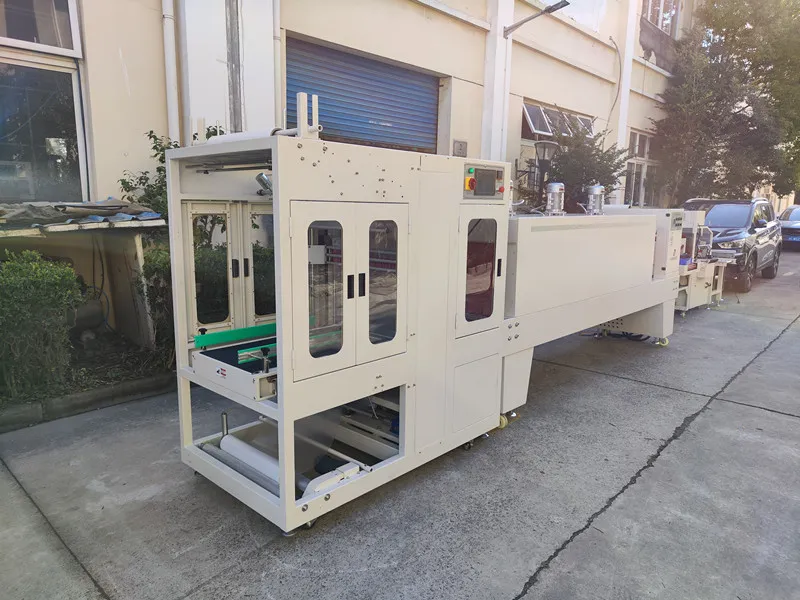

Detailed Photos

Application Range

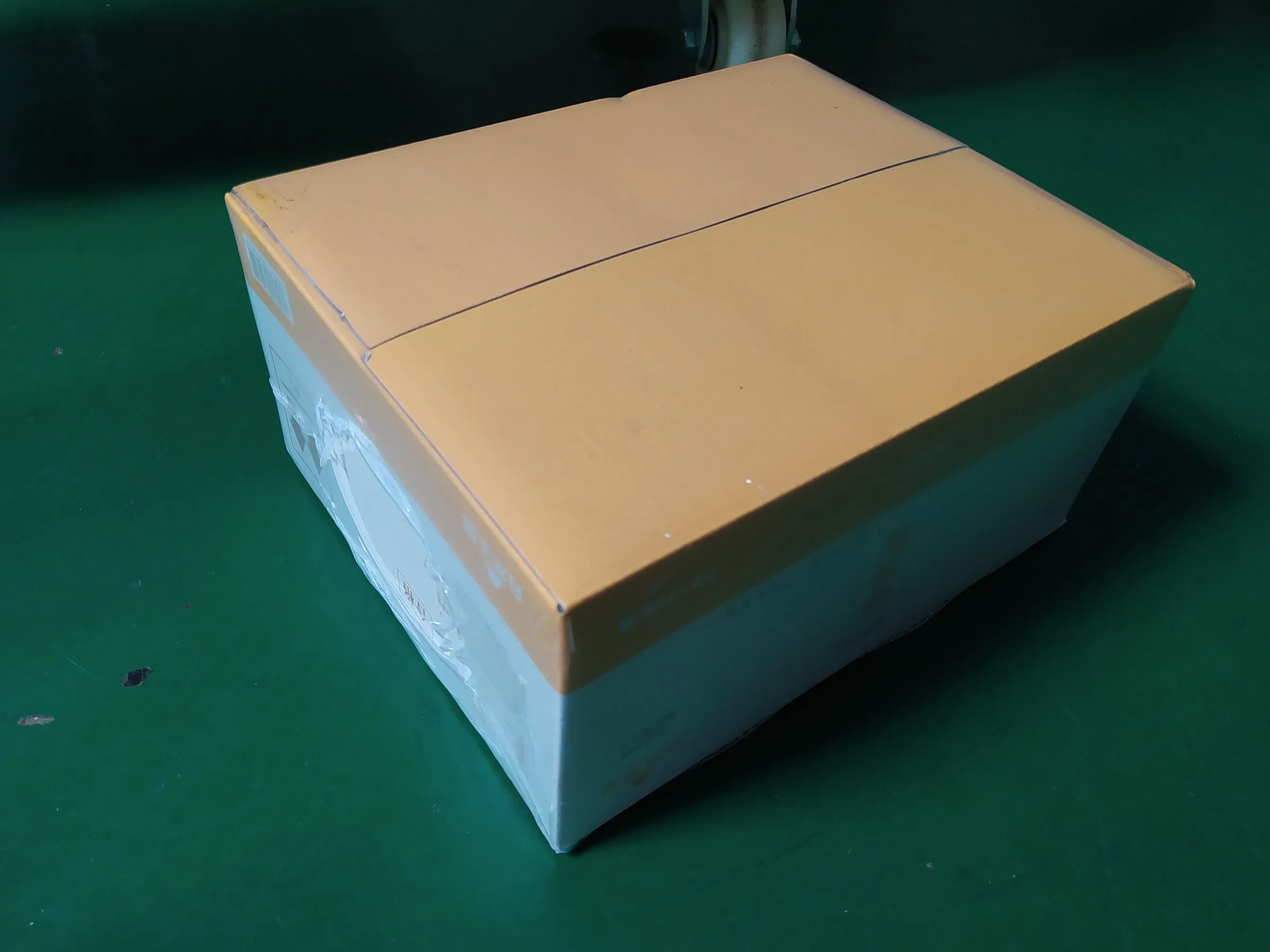

Mainly for beverage, daily necessities, food, ceramics and other large objects, especially for large cartons packaging.

Our Service & Packaging

1.We can customize machines according to your requirements and your specific products.

2.One-year Warranty: We replace spare parts for free within one year for non-man-made damage (excluding wearing parts). Lifelong spare parts support provided thereafter.

3.Packaging Details: Standard Export Wooden Box. Common specifications are available in stock.

Frequently Asked Questions

Q1: How do we test your machine?

When the machine is completely manufactured, we will send a video for your inspection. You can also visit our factory to test and learn how to operate it in person.

Q2: What information should I provide for a quote?

Please tell us what product you plan to pack and provide the product dimensions (Length * Width * Height) and weight so we can provide an accurate quote.

Q3: What type of packaging material does this machine use?

This system is specifically designed for PE shrink film, which is durable and ideal for heavy or large items.

Q4: Is the sealing process automatic?

Yes, the TF7040G is a fully automatic sleeve sealer that can be integrated into a production line for unmanned operation.

Q5: How does the heat tunnel ensure even shrinking?

The BS6040PE heat shrink tunnel adopts a hot air circulation motor, which ensures the air inside the tunnel maintains a constant and even temperature.

Q6: What is the warranty and after-sales support?

We provide a one-year warranty for non-wearable parts and offer lifelong technical support and spare parts at favorable prices.
